EP9110

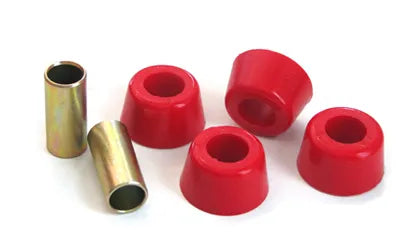

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	THL289
Inner Diameter [mm]	22
Length [mm]	25
Material	PU (Polyurethane)
Outer Diameter 1 [mm]	47
Shape	tapered

Compatibility
Ford	Courier	PC, PD, 1985- 2wd	PC, PD, 1985- 2wd | 1985-1999	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)	1 pack per vehicle
Ford	Courier	PE, PF, PG, 2wd	PE, PF, PG, 2wd | 1999-2004	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)	1 pack per vehicle
Ford	Courier	PH, 2wd 4 Cyl	PH, 2wd 4 Cyl | 2004-2006	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)	1 pack per vehicle
Great Wall	SA220	2WD	2WD | 2006-2010	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Mazda	B Series, Including Bravo	2wd, B1800, B2000, B2200 & B2600	2wd, B1800, B2000, B2200 & B2600 | 1985-2006	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Corona	MK11, MX10 & MX20, 6Cylinder Sedan & Coupe	MK11, MX10 & MX20, 6Cylinder Sedan & Coupe | 1972-1977	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Crown	MS85, MS95, Sedan	MS85, MS95, Sedan | 1974-1979	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Crown	MS111 & MS112, Sedan & Wagon	MS111 & MS112, Sedan & Wagon | 1979-1983	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RN30 / 40, LN30 & LN40	LN / RN30 / 40, LN30 & LN40 | 1978-1983	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RN30 / 40, RN30, RN31, RN40 & RN41	LN / RN30 / 40, RN30, RN31, RN40 & RN41 | 1978-1983	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, LN55R & LN56R	LN / YN55 / 56 / 57 / 58, LN55R & LN56R | 1983-1988	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R | 1983-1988	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, LN85R, LN86R & RN85R	LN / RN / YN85 / 86 / 90R, LN85R, LN86R & RN85R | 1988-1997	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, RN90R	LN / RN / YN85 / 86 / 90R, RN90R | 1988-1997	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, YN85R Grinner	LN / RN / YN85 / 86 / 90R, YN85R Grinner | 1988-1997	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RZN147 / 149 / 154R, LN147R	LN / RZN147 / 149 / 154R, LN147R | 1997-2005	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Hilux 2WD	LN / RZN147 / 149 / 154R, RZN147R, RZN149R & RZN154R	LN / RZN147 / 149 / 154R, RZN147R, RZN149R & RZN154R | 1997-2005	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Liteace	KM20	KM20 | 1979-1982	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Liteace	YM20,21 CM20,25	YM20,21 CM20,25 | 1982-1985	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Liteace	KM30, KM31, CM56, With Rear Coils	KM30, KM31, CM56, With Rear Coils | 1985-1992	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Liteace	KM36, CM35, 36, YM35, With Rear Leaf Springs	KM36, CM35, 36, YM35, With Rear Leaf Springs | 1985-1992	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	MKII	MX10 & MX20	MX10 & MX20 | 1972-1977	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Tarago	YR20, YR21, YR22, 2WD	YR20, YR21, YR22, 2WD | 1983-1990	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Tarago	YR31, Xtra Trak Wagon	YR31, Xtra Trak Wagon | 1986-1990	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Toyota	Townace	YR22, 26, 39, JT72R	YR22, 26, 39, JT72R | 1992-1996	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
