Xtreme Motorsport 200mm twin plate

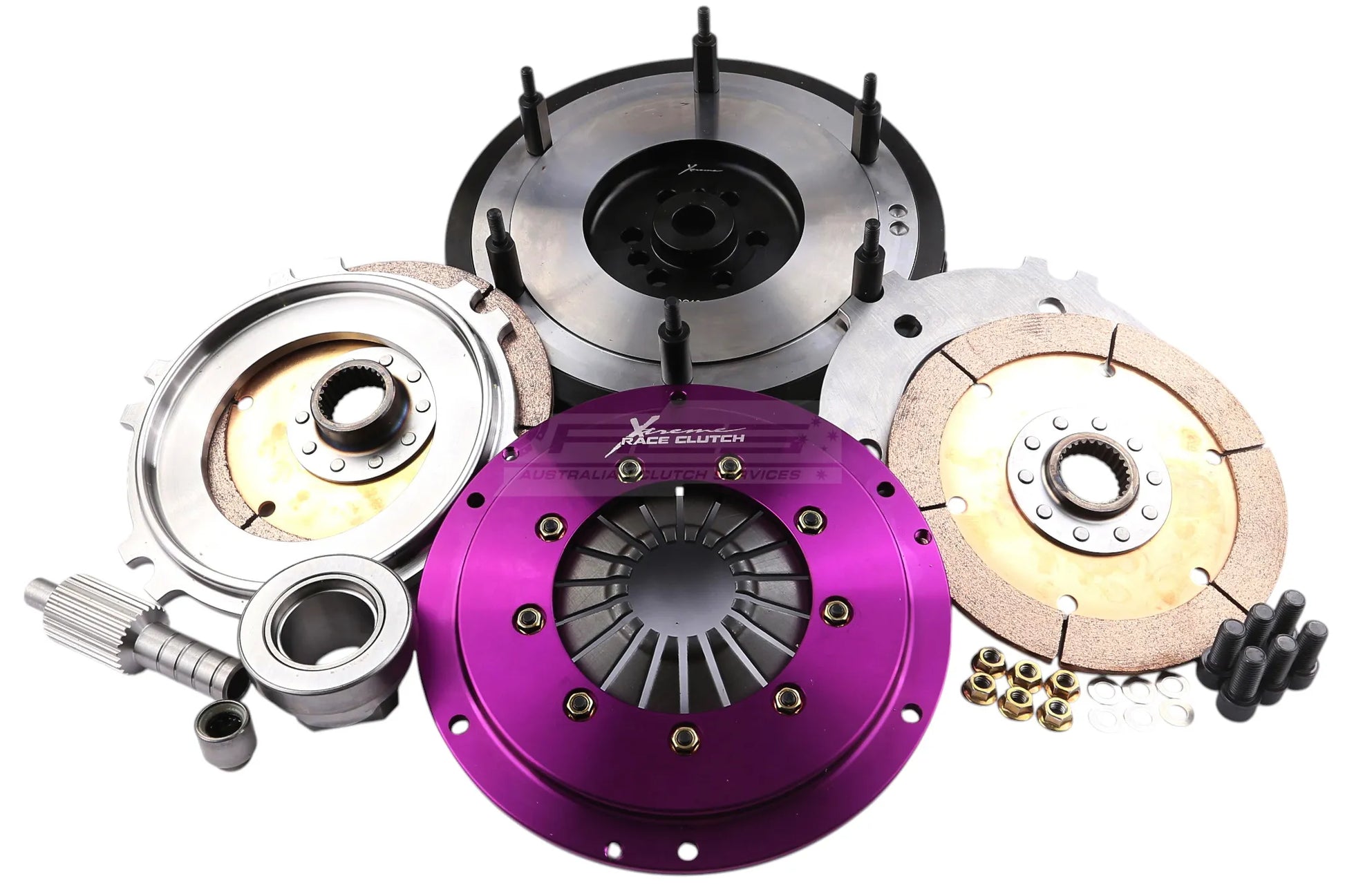

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 26 |
| Clutch Disc Spline Diameter (mm) | 35 |
| Flywheel Step (mm) | +2.2 |
| Torque (Nm) | 1200 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Solid Ceramic – engineered for high-power track vehicles. Provides exceptional torque and heat resistance with direct, competition-style engagement. |
| Tech Bulletins | TSB-269 TSB-200-2-X-1 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | X1 | E84 | xDrive 20 i | 2011.09-2015.06 | N20 B20 A 1997 Petrol 135 kW 184 BHP (2011.09 - 2015.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | X3 | F25 | xDrive 20 i | 2011.10-2017.08 | N20 B20 A 1997 Petrol 135 kW 184 BHP (2011.10 - 2017.09) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.03-2011.12 | N55 B30 A 2979 Petrol 220 kW 299 BHP (2006.03 - 2011.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.10 - 2013.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E88 | 135i | 2008.03-2013.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i | 2011.11-2015.07 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2011.11 - 2015.07) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i xDrive | 2012.07-2015.07 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2012.07 - 2015.07) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F34 | 335i | 2013.03-2016.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2016.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.09-2011.12 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2011.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i xDrive | 2008.09-2011.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2011.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i | 2006.09-2012.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2012.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i xDrive | 2008.09-2012.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2012.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335xi | 2007.03-2008.08 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2008.08) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F31 | 335i | 2013.03-2015.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2015.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F31 | 335i xDrive | 2013.03-2015.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2015.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i | 2006.06-2013.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.06 - 2013.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i xDrive | 2008.11-2013.12 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.11 - 2013.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335xi | 2007.03-2010.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2010.02) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E93 | 335i | 2016.12-2013.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.12 - 2013.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F32, F82 | 435i | 2013.07-2016.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.07 - 2016.02) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F32, F82 | 435i xDrive | 2013.07-2016.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.07 - 2016.02) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F33, F83 | 435i | 2013.11-2016.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.11 - 2016.02) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 5-Series | F10 | 535i | 2010.01-2016.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2010.01 - 2016.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 5-Series | E60 | 535i | 2006.04-2009.12 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.04 - 2009.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 5-Series | F11 | 535i | 2010.06-2017.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2010.06 - 2017.02) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N55 B30 A 2979 Petrol 240 kW 326 BHP (2007.10 - 2013.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E88 | 135i | 2008.03-2013.12 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i xDrive | 2012.07-2013.06 | N55 B30 A 2979 Petrol 240 kW 326 BHP (2012.07 - 2013.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | M | 2011.03-2012.06 | N54 B30 A 2979 Petrol 250 kW 340 BHP (2011.03 - 2012.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i xDrive | 2012.07-2015.07 | N55 B30 A 2979 Petrol 250 kW 340 BHP (2012.07 - 2015.07) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F32, F82 | 435i | 2013.07-2016.02 | N55 B30 A 2979 Petrol 250 kW 340 BHP (2013.07 - 2016.02) | 1200 | Motorsport | Single Mass Flywheel |
