Xtreme Motorsport 200mm twin plate

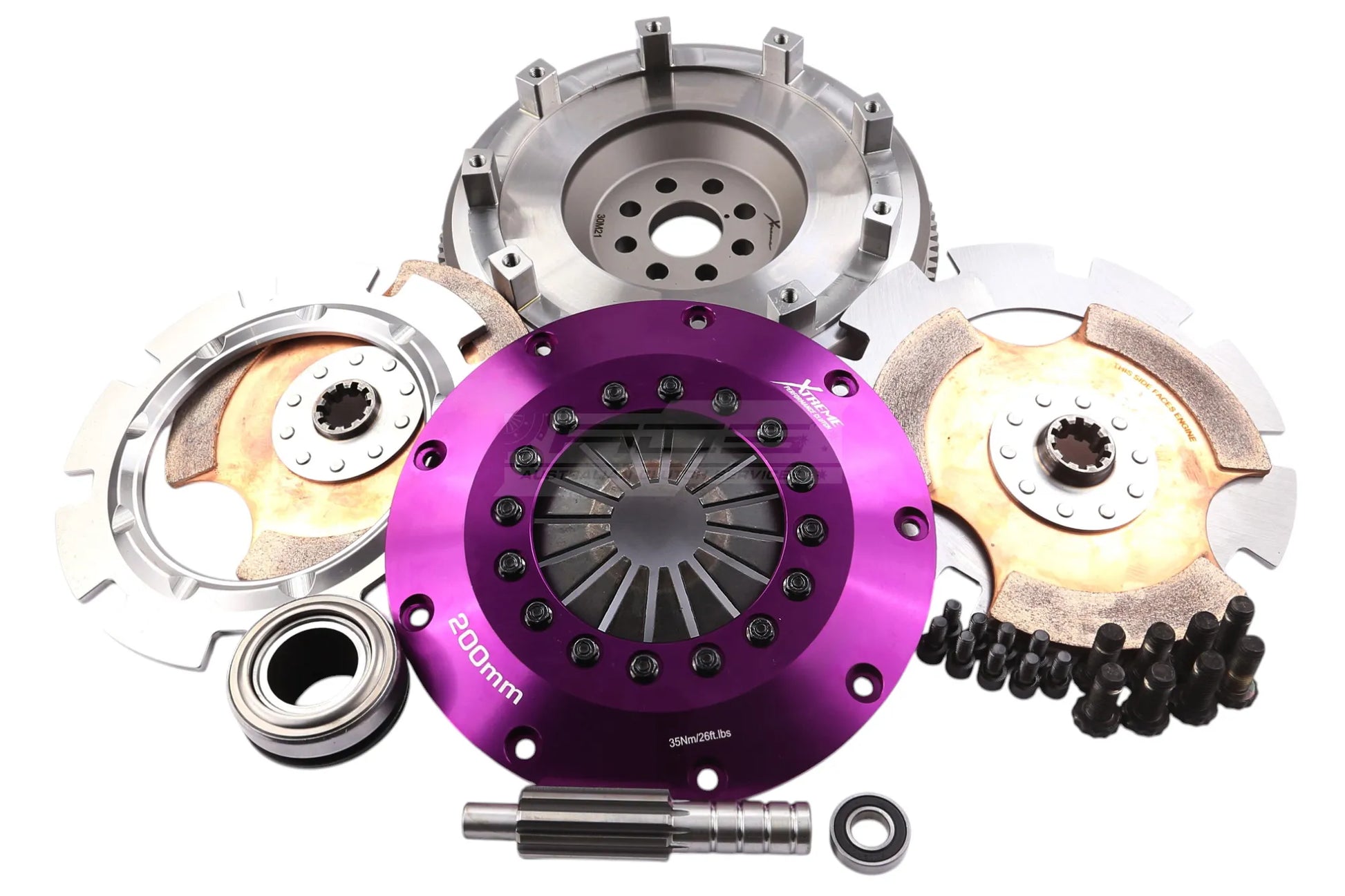

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 10 |
| Clutch Disc Spline Diameter (mm) | 29 |
| Flywheel Step (mm) | +2.2 |
| Torque (Nm) | 1200 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Solid Ceramic – engineered for high-power track vehicles. Provides exceptional torque and heat resistance with direct, competition-style engagement. |
| Tech Bulletins | TSB-269 TSB-200-2-X-REV TSB-PEDAL |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Compatibility | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| BMW | 3-Series | E46 | 330i | 2000.06-2005.02 | M54 B30 (306S3) 2979 Petrol 170 kW 231 BHP (2000.06 - 2005.02) | Suits 5 Speed Gearbox. | Suits vehicles manufactured until 02/2003. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E46 | 330Ci | 2000.06-2006.08 | M54 B30 (306S3) 2979 Petrol 170 kW 231 BHP (2000.06 - 2006.08) | Suits 5 Speed Gearbox. | Suits vehicles manufactured until 02/2003. | 1200 | Motorsport | Single Mass Flywheel |
