ACS

KBM23550-2G

KBM23550-2G

Prezzo di listino €2.858,26 EUR
Prezzo di listino Prezzo scontato €2.858,26 EUR
In offerta Esaurito
Quantità

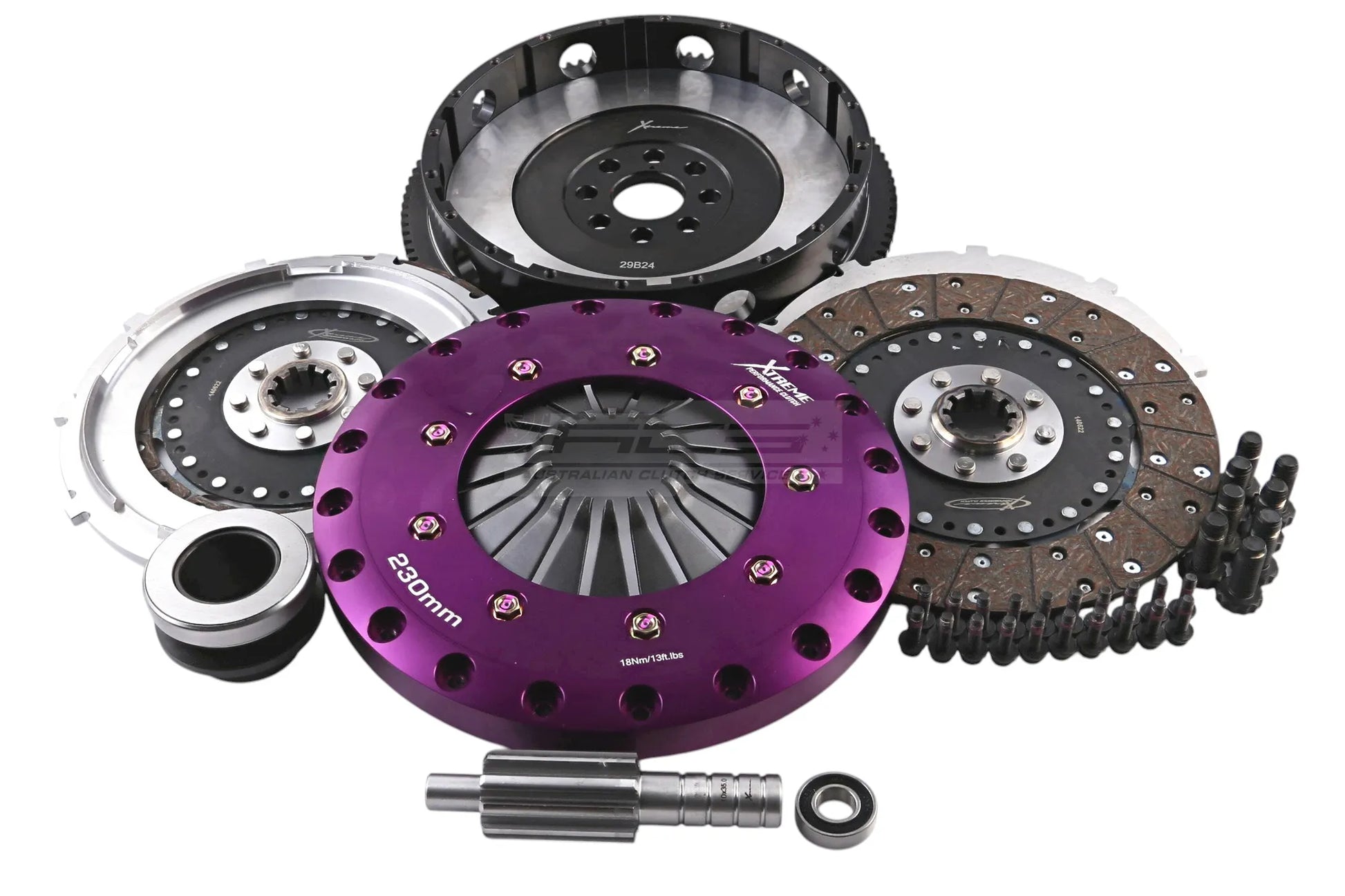

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 10
Clutch Disc Spline Diameter (mm) 35
Flywheel Step (mm) +3.8
Torque (Nm) 1200
Stage 4
Usage High Power Street Upgrade
Design 230mm Twin Plate Solid Organic – for competition and high-torque applications. Offers strong torque handling and consistent performance with a more direct, race-oriented engagement.
Tech Bulletins TSB-269  TSB-166
Kit Includes Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool
Flywheel Single Mass Flywheel
Compatibility
BMW 3-Series E46 | M3 2000.07-2006.05 S54 B32 (326S4) 3246 Petrol 252 kW 343 BHP (2000.07 - 2006.05) Suits both Manual & AMT gearbox. 1200 High Power Street Upgrade Single Mass Flywheel
BMW 3-Series E46 | M3 CSL 2003.05-2003.12 S54 B32 (326S4) 3246 Petrol 265 kW 360 BHP (2003.05 - 2003.12) Suits both Manual & AMT gearbox. 1200 High Power Street Upgrade Single Mass Flywheel
