ACS
KBM23589-2G
KBM23589-2G
Prezzo di listino
€2.777,37 EUR
Prezzo di listino
Prezzo scontato
€2.777,37 EUR
Quantità
Impossibile caricare la disponibilità di ritiro

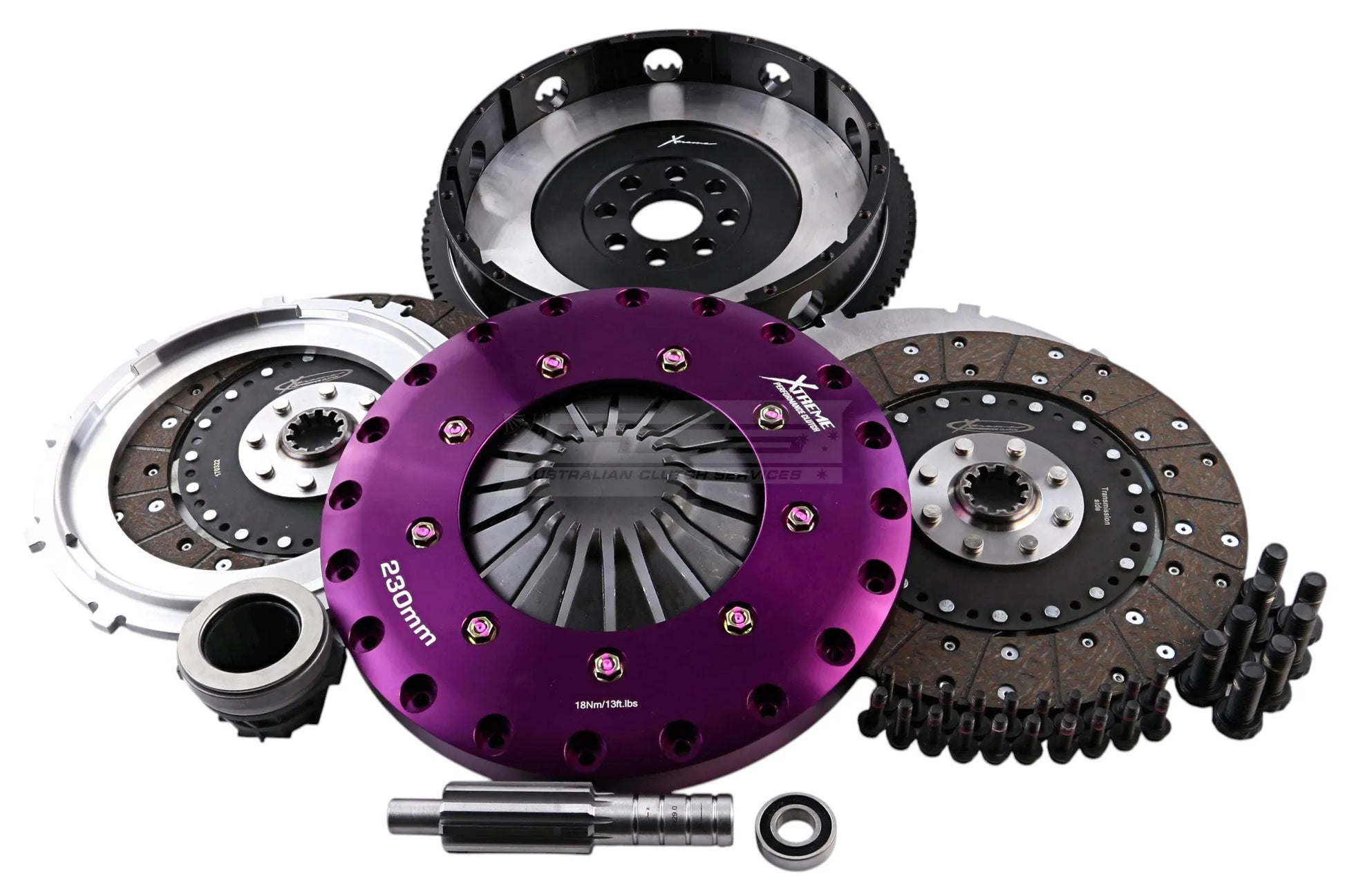

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application. The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles. Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Clutch Disc Diameter (mm) | 230 |
| Clutch Disc Spline Count | 10 |
| Clutch Disc Spline Diameter (mm) | 29 |
| Flywheel Step (mm) | +3.8 |
| Torque (Nm) | 1200 |
| Stage | 4 |
| Usage | High Power Street Upgrade |
| Design | 230mm Twin Plate Solid Organic – for competition and high-torque applications. Offers strong torque handling and consistent performance with a more direct, race-oriented engagement. |
| Tech Bulletins | TSB-269 TSB-BM03 TSB-166 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 5-Series | E34 | 518i | 1989.09-1994.04 | M40 B18 (184E1) 1796 Petrol 83 kW 113 BHP (1989.09 - 1994.04) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E34 | 518i | 1994.05-1996.07 | M43 B18 (184E2) 1796 Petrol 85 kW 115 BHP (1994.05 - 1996.07) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E28 | 525 e | 1981.09-1987.12 | M20 B27 (276KA), M20 B27 (276KB) 2693 Petrol 90 kW 122 BHP (1981.09 - 1987.12) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E28 | 525 e | 1983.03-1987.12 | M20 B27 (276EA) 2693 Petrol 92 kW 125 BHP (1983.03 - 1987.12) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E28 | 525 e | 1985.09-1987.12 | M20 B27 (276EB, M20 B27 (276KB) 2693 Petrol 95 kW 129 BHP (1985.09 - 1987.12) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E30 | 318 is | 1989.09-1991.08 | M42 B18 (184S1) 1796 Petrol 100 kW 136 BHP (1989.09 - 1991.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E39 | 520i | 1997.03-2001.08 | M52 B20 (206S3), M52 B20 (206S4) 1990 Petrol 100 kW 136 BHP (1997.03 - 2001.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 318 ti | 1996.01-1999.08 | M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1996.01 - 1999.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 318 ti | 1994.09-1995.12 | M42 B18 (184S1) 1796 Petrol 103 kW 140 BHP (1994.09 - 1995.12) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 318 is | 1995.09-1999.04 | M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1995.09 - 1999.04) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 318 is | 1992.01-1995.12 | M42 B18 (184S1) 1796 Petrol 103 kW 140 BHP (1992.01 - 1995.12) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | 1.9 | 1995.11-1999.03 | M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1995.11 - 1999.03) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 320i | 1998.03-2000.09 | M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1998.03 - 2000.09) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 320Ci | 1999.02-2001.08 | M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1999.02 - 2001.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E39 | 520i | 1996.01-2003.06 | M52 B20 (206S3), M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1996.01 - 2003.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | 2.0 | 1999.04-2003.01 | M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1999.04 - 2003.01) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 320i | 2000.09-2005.02 | M54 B22 (226S1) 2171 Petrol 120 kW 163 BHP (2000.09 - 2005.02) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 323i | 1998.03-2000.09 | M52 B25 (256S4) 2494 Petrol 120 kW 163 BHP (1998.03 - 2000.09) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 320Ci | 2000.01-2006.05 | M54 B22 (226S1) 2171 Petrol 120 kW 163 BHP (2000.01 - 2006.05) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 323Ci | 1999.04-2000.09 | M52 B25 (256S4) 2494 Petrol 120 kW 163 BHP (1999.04 - 2000.09) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 323 ti | 1997.09-2000.08 | M52 B25 (256S3) 2494 Petrol 125 kW 170 BHP (1997.09 - 2000.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 320i | 2000.09-2005.02 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.09 - 2005.02) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 323i | 1998.03-2000.09 | M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1998.03 - 2000.09) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 320Ci | 2000.01-2007.12 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.01 - 2006.05) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 323Ci | 1999.04-2000.09 | M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1999.04 - 2000.09) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E34 | 525i | 1988.02-1990.08 | M20 B25 (256K1) 2494 Petrol 125 kW 170 BHP (1988.02 - 1990.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E39 | 520i | 2000.09-2003.06 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.09 - 2003.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E39 | 523i | 1995.09-2000.08 | M52 B25 (256S3), M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1995.09 - 2000.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | 2.2 | 2000.10-2002.06 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.10 - 2002.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 325i | 1990.09-1995.12 | M50 B25 (256S1), M50 B25 (256S2) 2494 Petrol 141 kW 192 BHP (1990.09 - 1995.12) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 325i | 2000.09-2005.02 | M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2000.09 - 2005.02) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E34 | 525i | 1990.03-1996.07 | M50 B25 (256S1), M50 B25 (256S2) 2494 Petrol 141 kW 192 BHP (1990.03 - 1996.07) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E39 | 525i | 2000.09-2003.06 | M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2000.09 - 2003.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E34 | 525ix | 1992.01-1996.03 | M50 B25 (256S1), M50 B25 (256S2) 2494 Petrol 141 kW 192 BHP (1992.01 - 1996.03) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | 328i | 1995.01-1999.04 | M52 B28 (286S1) 2793 Petrol 142 kW 193 BHP (1995.01 - 1999.04) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 328i | 1998.02-2000.06 | M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1998.02 - 2000.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E46 | 328Ci | 1998.12-2000.05 | M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1998.12 - 2000.05) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 5-Series | E39 | 528i | 1995.09-2000.08 | M52 B28 (286S1), M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1995.09 - 2000.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | 2.8 | 1996.11-2000.05 | M52 B28 (286S1), M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1996.11 - 2000.05) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | 3.0 | 2000.06-2003.06 | M54 B30 (306S3) 2979 Petrol 170 kW 231 BHP (2000.06 - 2003.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | M3 3.0 | 1992.11-1995.07 | S50 B30 (306S1) 2990 Petrol 210 kW 286 BHP (1992.11 - 1995.07) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | M3 3.0 | 1993.09-1995.05 | S50 B30 (306S1) 2990 Petrol 217 kW 295 BHP (1993.09 - 1995.05) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E36 | M3 3.2 | 1995.10-1999.09 | S50 B32 (326S1) 3201 Petrol 236 kW 321 BHP (1995.10 - 1999.09) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | M3 | 1997.01-2000.06 | S50 B32 (326S1) 3201 Petrol 236 kW 321 BHP (1997.01 - 2000.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z3 | E36 | M3 | 1998.02-2001.06 | S50 B32 (326S1), S50 B32 (326S3) 3201 Petrol 236 kW 321 BHP (1998.02 - 2001.06) | 1200 | High Power Street Upgrade | Single Mass Flywheel |
