Xtreme Clutch 230mm twin plate kit

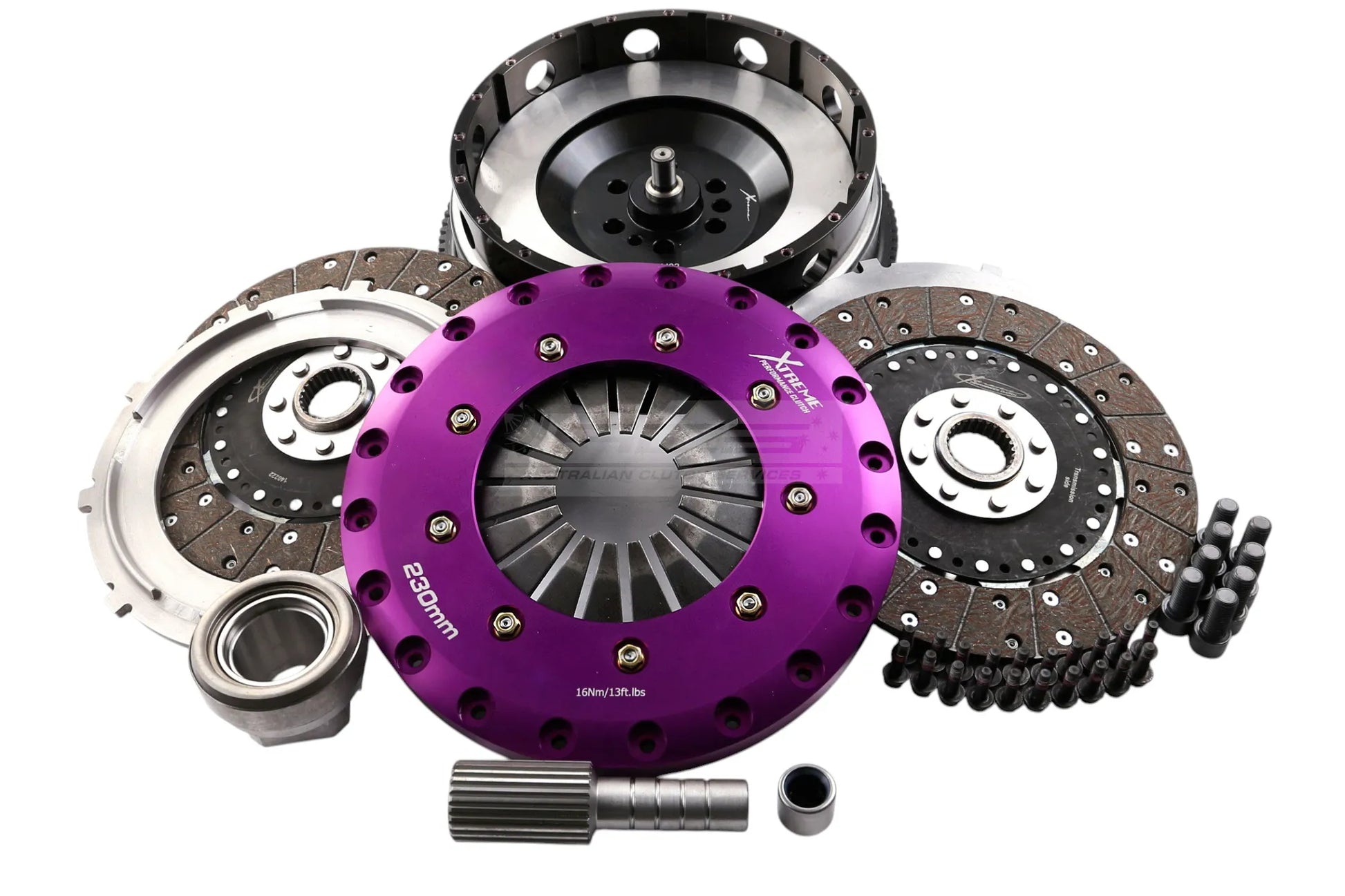

The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application. The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles. Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Clutch Disc Diameter (mm) | 230 |
| Clutch Disc Spline Count | 26 |
| Clutch Disc Spline Diameter (mm) | 35 |
| Flywheel Step (mm) | +3.8 |
| Torque (Nm) | 1200 |
| Stage | 4 |
| Usage | High Power Street Upgrade |
| Design | 230mm Twin Plate Solid Organic – for competition and high-torque applications. Offers strong torque handling and consistent performance with a more direct, race-oriented engagement. |
| Tech Bulletins | TSB-269 TSB-214 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Note | This kit suits 6 Bolt Crank. |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| BMW | 3-Series | E90 | 335i | 2006.03-2011.12 | N54 B30 A 2979 Petrol 220 kW 299 BHP (2006.03 - 2011.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.03-2011.12 | N54 B30 A 2979 Petrol 224 kW 305 BHP (2006.03 - 2011.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.10 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 1-Series | E88 | 135i | 2008.03-2013.10 | N54 B30A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.09-2011.12 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2011.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i xDrive | 2008.09-2011.10 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2011.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i | 2006.09-2012.06 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2012.06) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i xDrive | 2008.09-2012.06 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2012.06) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i | 2006.06-2013.06 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.06 - 2013.06) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i xDrive | 2008.11-2013.12 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.11 - 2013.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335xi | 2007.03-2010.02 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2010.02) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 3-Series | E93 | 335i | 2016.12-2013.10 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.12 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N54 B30 A 2979 Petrol 240 kW 326 BHP (2007.10 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | High Power Street Upgrade | Single Mass Flywheel |
| BMW | Z4 | E89 | sDrive 35 i | 2009.02-2016.08 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2009.02 - 2016.08) | 1200 | High Power Street Upgrade | Single Mass Flywheel | |
