Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

Specifications:
  • Torque capacity 910Nm
  • Clamp load Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 240
Clutch Disc Spline Count 26
Clutch Disc Spline Diameter (mm) 35
Flywheel Step (mm) -9.53
Torque (Nm) 910
Clamp Force
Clamp Force Increase 70%
Stage Stage 2R
Usage Track Use
Design Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins TSB-174  TSB-269  TSB-SMF02  TSB-TB02

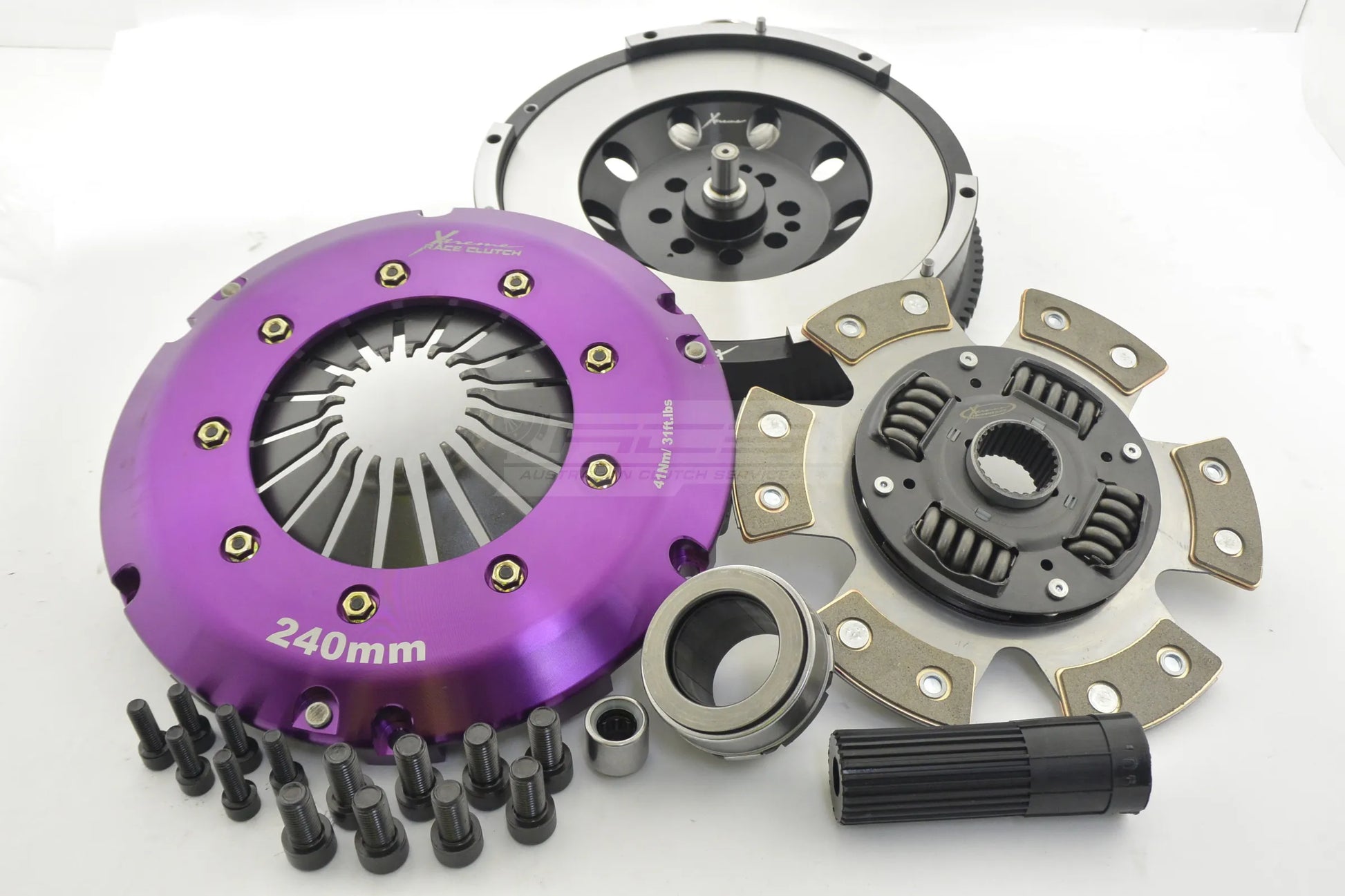

Kit Includes Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool, Bolts, Flywheel
Flywheel Conversion to Single Mass Flywheel
Note This kit suits 8 Bolt Crank.
Compatibility
BMW 3-Series E90 | 335i 2006.03-2011.12 N54 B30 A 2979 Petrol 220 kW 299 BHP (2006.03 - 2011.12) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E90 | 335i 2006.03-2011.12 N54 B30 A 2979 Petrol 224 kW 305 BHP (2006.03 - 2011.12) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 1-Series E82 | 135i 2007.10-2013.10 N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.10 - 2013.10) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 1-Series E88 | 135i 2008.03-2013.10 N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.10) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E90 | 335i 2006.09-2011.12 N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2011.12) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E90 | 335i xDrive 2008.09-2011.10 N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2011.10) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E90 | 335xi 2007.03-2008.08 N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2008.08) 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E91 | 335i 2006.09-2012.06 N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2012.06) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E91 | 335i xDrive 2008.09-2012.06 N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2012.06) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E91 | 335xi 2007.03-2008.08 N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2008.08) 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E92 | 335i 2006.06-2013.06 N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.06 - 2013.06) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E92 | 335i xDrive 2008.11-2013.12 N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.11 - 2013.12) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E92 | 335xi 2007.03-2010.02 N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2010.02) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 3-Series E93 | 335i 2016.12-2013.10 N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.12 - 2013.10) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
BMW 1-Series E82 | 135i 2007.10-2013.10 N54 B30 A 2979 Petrol 240 kW 326 BHP (2007.10 - 2013.10) Suits vehicles manufactured before 12/2008. 8 Bolt Crank. 910 Track Use Conversion to Single Mass Flywheel
