KDG27630-2G

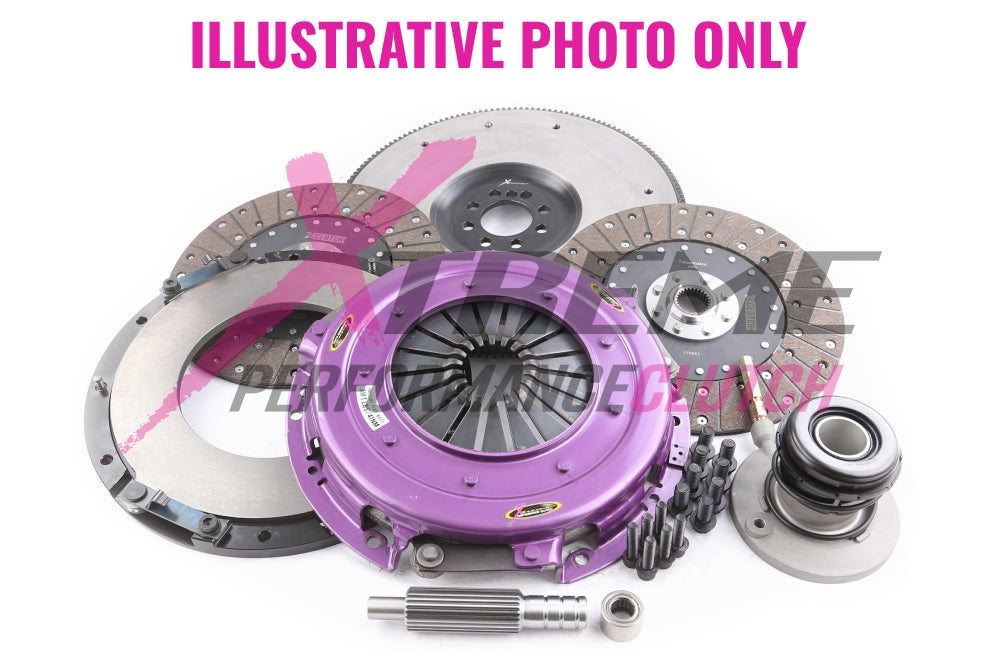

The Xtreme Clutch 270mm twin plate organic clutch range has been designed specifically for high horsepower street use. The kits are designed to offer excellent drivability in high horsepower vehicles and are well suited to high powered supercharged and turbocharged V8 engines. With a heavy duty pressure plate, rigid organic friction discs and a strap-driven intermediate plate, these kits offer excellent drivability whilst providing a significant increase in torque capacity. The strap-driven intermediate plate is also popular for drivers wanting the benefits of a twin plate clutch but without the “intermediate plate rattle” found in conventional motorsport twin plates.

Clutch Disc Diameter (mm)	270
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	1300
Flywheel Step
Design	Twin Plate
Stage	Multiplate - street use only
Tech Bulletins
Clamp Load
Recommended for	High horsepower street driven vehicles
Ring Gear Tooth count
Additional infotmation

Compatibility
Dodge	Challenger	5.7	2010.01-2016	EZC 5654 Petrol 280 kW 381 BHP (2010.01 - 2016)
Dodge	Challenger	5.7	2008.09-2016.12	EZH 5654 Petrol 277 kW 377 BHP (2008.09 - 2016.12)
Dodge	Challenger	6.1 SRT8	2007.09-2010	ESF 6059 Petrol 317 kW 431 BHP (2007.09 - 2010)
Dodge	Challenger	6.4 SRT8	2011.01-	ESG 6417 Petrol 351 kW 477 BHP (2011.01 -)
Dodge	Challenger	6.4 SRT8	2011.08-2015	ESH 6417 Petrol 346 kW 471 BHP (2011.08 - 2015)
