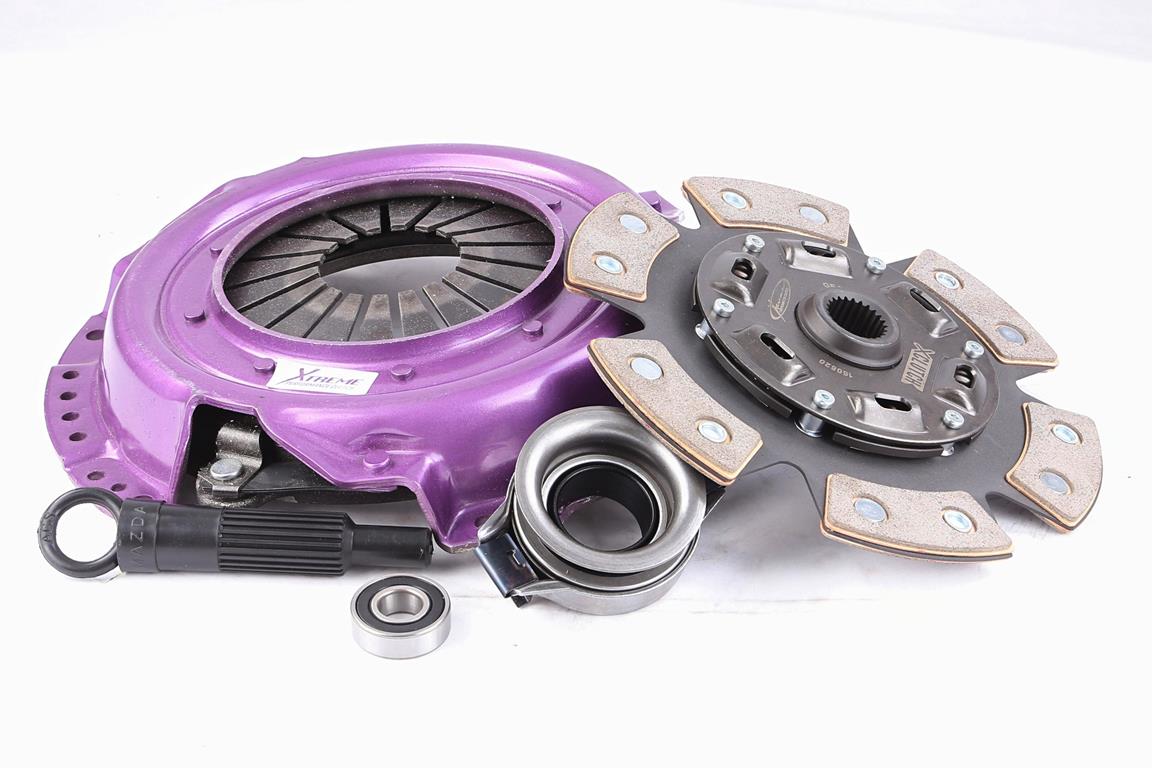

KFD23005-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 630Nm
• Clamp load 750Kg 50% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	630
Clamp Load	750Kg (50% inc.)
Flywheel Step	0
Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,4
Recommended for	High Speed 4x4 Trial or Desert Race - Stage 2
Design	Single Plate
Stage	Stage 2

Compatibility
Nissan	Navara	D21 | 2.5 D	1988.02-1992.05	TD25 2494 Diesel 55 kW 75 BHP (1988.02 - 1992.05)
Nissan	Navara	D21 | 2.5 D	1992.08-1998.02	TD25 2494 Diesel 61 kW 83 BHP (1992.08 - 1998.02)
Nissan	Navara	D21 | 2.5 D	1994.09-1996.08	TD25 2494 Diesel 59 kW 80 BHP (1994.09 - 1996.08)
Nissan	Navara	D21 | 2.5 D	1987.09-1998.02	TD25 2494 Diesel 55 kW 75 BHP (1987.09 - 1998.02)
Nissan	Navara	D21 | 2.5 D 4WD	1996.03-1998.02	TD25 2494 Diesel 61 kW 83 BHP (1996.03 - 1998.02)
Nissan	Navara	D21 | 2.5 D 4WD	1987.08-1998.02	TD25 2494 Diesel 59 kW 80 BHP (1987.08 - 1998.02)
Nissan	Prairie	M11 | 2.4	1990.01-1994.07	KA24E 2389 Petrol 98 kW 133 BHP (1990.01 - 1994.07)
Nissan	Prairie	M11 | 2.4 4WD	1992.04-1994.07	KA24E 2389 Petrol 98 kW 133 BHP (1992.04 - 1994.07)
Nissan	Pintara	U12 | 2.4	1989.11-1992.10	KA24E 2389 Petrol 96 kW 131 BHP (1989.11 - 1992.10)
