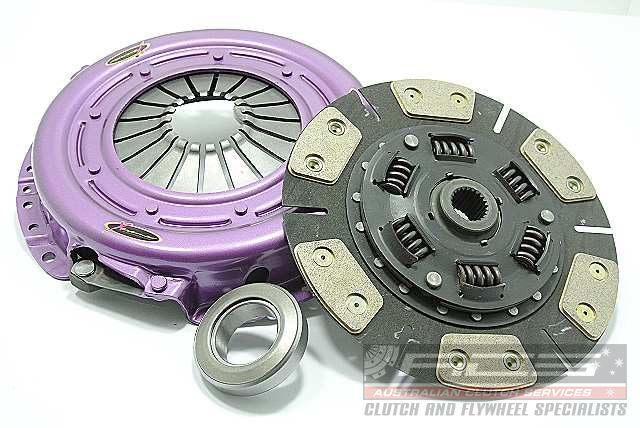

KFD24019-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 650Nm
• Clamp load 1600kg Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	25
Torque (Nm)	650
Flywheel Step
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	1600Kg
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Ford	Sierra	2.0 16V Cosworth 4x4	1990.01-1993.02	N5D 1993 Petrol 162 kW 220 BHP (1990.01 - 1993.02)
Ford	Sierra	2.0 16V Cosworth Cat 4x4	1990.01-1993.02	N5C 1993 Petrol 162 kW 220 BHP (1990.01 - 1993.02)
Ford	Sierra	2.0 4x4	1985.10-1987.02	N5B, YBB 1994 Petrol 150 kW 204 BHP (1985.10 - 1987.02)
Ford	Sierra	2.0 RS Cosworth	1987.01-1990.12	N5B, YBB 1993 Petrol 150 kW 204 BHP (1987.01 - 1990.12)
Ford	Sierra	2.0 RS500 Cosworth	1987.07-1987.12	YBD 1993 Petrol 167 kW 227 BHP (1987.07 - 1987.12)
