KGM23004-1B

Recommended for: Motorsport Applications

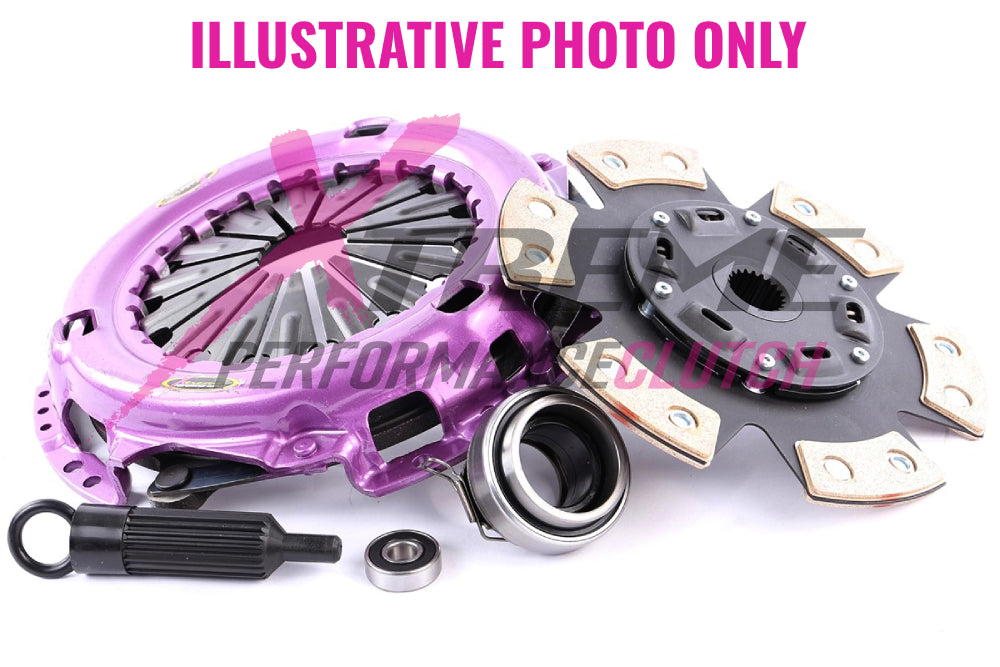

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 470Nm
• Clamp load 700kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	228
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	20.5
Torque (Nm)	470
Flywheel Step	-2.0mm/.079""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	700Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Vauxhall	Calibra	2.0 i 16V	1990.06-1994.02	C 20 XE 1998 Petrol 110 kW 150 BHP (1990.06 - 1994.02)
Opel	Calibra	2.0 i 16V (M07)	1990.06-1994.02	C 20 XE 1998 Petrol 110 kW 150 BHP (1990.06 - 1994.02)
Vauxhall	Calibra	2.0 i 16V 4x4	1990.06-1994.02	C 20 XE 1998 Petrol 110 kW 150 BHP (1990.06 - 1994.02)
Opel	Calibra	2.0 i 16V 4x4 (M07)	1990.06-1994.02	C 20 XE 1998 Petrol 110 kW 150 BHP (1990.06 - 1994.02)
Vauxhall	Astra	E | 2.0 GTE 16V	1988.05-1991.08	20 XE 1998 Petrol 115 kW 156 BHP (1988.05 - 1991.08)
Vauxhall	Astra	F | 2.0 i 16V	1991.09-1998.02	C 20 XE 1998 Petrol 110 kW 150 BHP (1991.09 - 1998.02)
Vauxhall	Cavalier	Gen. III | 2.0 i 16V	1988.09-1995.11	C 20 XE 1998 Petrol 110 kW 150 BHP (1988.09 - 1995.11)
Vauxhall	Cavalier	Gen. III | 2.0 i 16V 4x4	1988.09-1995.11	C 20 XE 1998 Petrol 110 kW 150 BHP (1988.09 - 1995.11)
Holden	H Series	YE | 2.0 i 16V	1991.10-1995.07	C 20 XE 1998 Petrol 110 kW 150 BHP (1991.10 - 1995.07)
