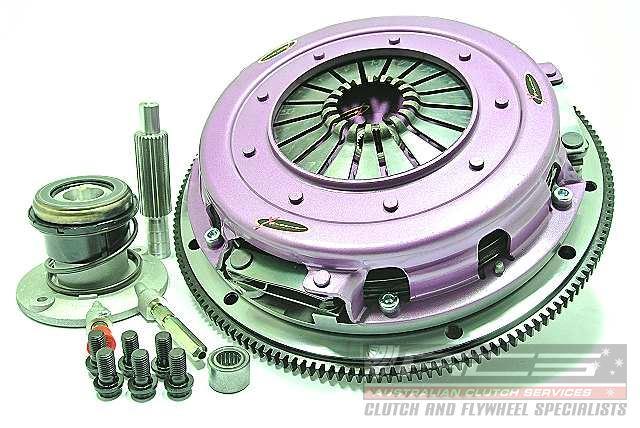

KGM27630-2G

The Xtreme Clutch 270mm twin plate organic clutch range has been designed specifically for high horsepower street use. The kits are designed to offer excellent drivability in high horsepower vehicles and are well suited to high powered supercharged and turbocharged V8 engines. With a heavy duty pressure plate, rigid organic friction discs and a strap-driven intermediate plate, these kits offer excellent drivability whilst providing a significant increase in torque capacity. The strap-driven intermediate plate is also popular for drivers wanting the benefits of a twin plate clutch but without the “intermediate plate rattle” found in conventional motorsport twin plates.

Clutch Disc Diameter (mm)	270
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	1300
Flywheel Step	Flat
Design	Twin Plate
Stage	Multiplate - street use only
Tech Bulletins
Clamp Load	1250Kg
Recommended for	High horsepower street driven vehicles
Ring Gear Tooth count
Additional infotmation

Compatibility
Chevrolet	Camaro	5.7	1998.07-2002.12	LS1 5665 Petrol 212 kW 288 BHP (1998.07 - 2002.12)
Holden	H Series	5.7 i V8	2004.11-2005.12	5665 Petrol 260 kW 354 BHP (2004.11 - 2005.12)
Holden	H Series	5.7 i V8	2001.12-2003.01	LS1 5665 Petrol 225 kW 306 BHP (2001.12 - 2003.01)
Holden	H Series	5.7 i V8	2003.01-2003.08	LS1 5665 Petrol 235 kW 320 BHP (2003.01 - 2003.08)
Holden	H Series	5.7 i V8	2003.08-2004.07	LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.07)
Holden	H Series	5.7 i V8	2004.11-2005.12	LS1 5665 Petrol 235 kW 320 BHP (2004.11 - 2005.12)
Holden	H Series	5.7 i V8	2003.08-2004.09	LS1 5665 Petrol 245 kW 333 BHP (2003.08 - 2004.09)
Holden	H Series	5.7 i V8	2004.09-2006.07	LS1 5665 Petrol 260 kW 354 BHP (2004.09 - 2006.07)
HSV	SV6000	6.0i V8	2005.08-2006.04	LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2005.08 - 2006.04)
HSV	GTO	V2 | 5.7i V8	2001.03-2003.08	LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2003.08)
HSV	GTS	V2| 5.7i V8	2001.03-2004.09	LS1 5665 Petrol 300 kW 408 BHP (2001.03 - 2004.09)
Holden	H Series	VE | 6.0i V8	2007.09-2010.09	L76 5967 Petrol 260 kW 354 BHP (2007.09 - 2010.09)
Holden	H Series	VT | 5.7i V8	1999.06-2000.08	LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.08)
Holden	H Series	VT | 5.7i V8	1999.06-2000.10	LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.10)
HSV	Senator	VT | 5.7i V8	1997.09-2000.08	LS1 5665 Petrol 250 kW 340 BHP (1997.09 - 2000.08)
HSV	Clubsport	VT | 5.7i V8	1999.07-2000.10	LS1 5665 Petrol 250 kW 340 BHP (1999.07 - 2000.10)
HSV	GTS	VT | 5.7i V8	2000.04-2000.09	LS1 5665 Petrol 300 kW 408 BHP (2000.04 - 2000.09)
Holden	H Series	VU | 5.7i V8	2000.12-2002.09	LS1 5665 Petrol 225 kW 306 BHP (2000.12 - 2002.09)
HSV	Maloo	VU | 5.7i V8	2001.03-2002.09	LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2002.09)
Holden	H Series	VX | 5.7i V8	2000.09-2002.09	LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09)
HSV	Clubsport	VX | 5.7i V8	2000.09-2002.09	LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09)
HSV	Senator	VX | 5.7i V8	2000.09-2002.09	LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09)
HSV	GTS	VX | 5.7i V8	2000.09-2001.08	LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2001.08)
HSV	Senator	VX | 5.7i V8	2000.09-2002.09	LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2002.09)
HSV	GTO	VX, VZ | 5.7 i V8	2003.09-2004.09	LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV	GTO	VX, VZ | 6.0i V8	2004.10-2007.11	L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.11)
HSV	SV300	VX| 5.7i V8	2001.09-2001.12	LS1 5665 Petrol 300 kW 408 BHP (2001.09 - 2001.12)
Holden	H Series	VY | 5.7i V8	2002.09-2003.08	LS1 5665 Petrol 225 kW 306 BHP (2002.09 - 2003.08)
Holden	H Series	VY | 5.7i V8	2003.09-2004.07	LS1 5665 Petrol 225 kW 306 BHP (2003.09 - 2004.07)
Holden	H Series	VY | 5.7i V8	2002.09-2004.08	LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2004.08)
Holden	H Series	VY | 5.7i V8	2003.08-2004.08	LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.08)
Holden	H Series	VY | 5.7i V8	2004.08-2006.02	LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.02)
Holden	H Series	VY | 5.7i V8	2002.09-2003.08	LS1 5665 Petrol 245 kW 333 BHP (2002.09 - 2003.08)
HSV	Clubsport	VY | 5.7i V8	2002.10-2003.08	LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08)
HSV	Senator	VY | 5.7i V8	2002.10-2003.08	LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08)
HSV	Maloo	VY | 5.7i V8	2002.10-2003.09	LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.09)
HSV	Clubsport	VY | 5.7i V8	2003.09-2004.09	LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV	Senator	VY | 5.7i V8	2003.09-2004.09	LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV	Maloo	VY | 5.7i V8	2003.10-2004.09	LS1 5665 Petrol 285 kW 388 BHP (2003.10 - 2004.09)
HSV	GTS	VY | 5.7i V8	2002.10-2004.09	LS1 5665 Petrol 300 kW 408 BHP (2002.10 - 2004.09)
Vauxhall	Monaro	VY, VZ | 5.7	2004.03-2005.07	LS1 5665 Petrol 285 kW 387 BHP (2004.03 - 2005.07)
Vauxhall	Monaro	VY, VZ | 5.7	2004.01-2004.10	Y 57 XE 5665 Petrol 245 kW 333 BHP (2004.01 - 2004.10)
Vauxhall	Monaro	VY, VZ | 5.7	2005.01-2007.04	Y 57 XE 5665 Petrol 257 kW 349 BHP (2005.01 - 2007.04)
Holden	H Series	VZ | 5.7i V8	2004.08-2006.01	LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.01)
Holden	H Series	VZ | 5.7i V8	2004.09-2005.12	LS1 5665 Petrol 235 kW 320 BHP (2004.09 - 2005.12)
Holden	H Series	VZ | 5.7i V8	2004.09-2006.02	LS1 5665 Petrol 250 kW 340 BHP (2004.09 - 2006.02)
Holden	H Series	VZ | 6.0i V8	2005.11-2006.06	L76 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.06)
Holden	H Series	VZ | 6.0i V8	2005.11-2007.08	L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2007.08)
HSV	Senator	VZ | 6.0i V8	2004.10-2006.07	L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.07)
HSV	Clubsport	VZ | 6.0i V8	2004.10-2006.12	L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.12)
HSV	Maloo	VZ | 6.0i V8	2004.10-2007.09	L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.09)
Holden	H Series	VZ | 6.0i V8 4x4	2005.11-2006.07	L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.07)
