KGM27631-2G

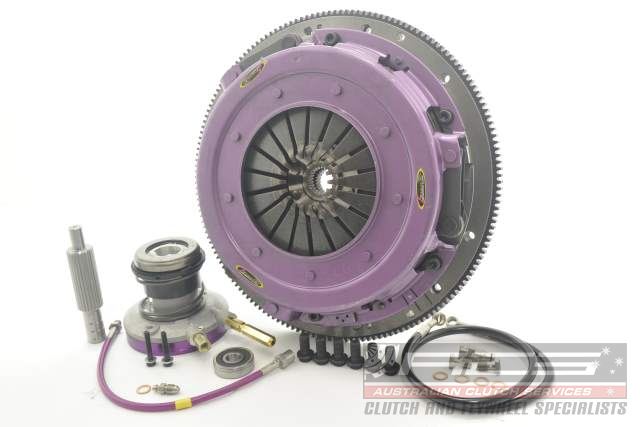

The Xtreme Clutch 270mm twin plate organic clutch range has been designed specifically for high horsepower street use. The kits are designed to offer excellent drivability in high horsepower vehicles and are well suited to high powered supercharged and turbocharged V8 engines. With a heavy duty pressure plate, rigid organic friction discs and a strap-driven intermediate plate, these kits offer excellent drivability whilst providing a significant increase in torque capacity. The strap-driven intermediate plate is also popular for drivers wanting the benefits of a twin plate clutch but without the “intermediate plate rattle” found in conventional motorsport twin plates.

Clutch Disc Diameter (mm)	270
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	1300
Flywheel Step	Flat
Design	Twin Plate
Stage	Multiplate - street use only
Tech Bulletins
Clamp Load	1250Kg
Recommended for	High horsepower street driven vehicles
Ring Gear Tooth count
Additional infotmation

Compatibility
Vauxhall	VXR8 Maloo	6.2	2008.04-2011.08	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
Holden	H Series	VE | 6.0 Flex	2010.09-2013.04	L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.08-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV	Senator	VE | 6.0i V8	2006.08-2013.04	LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2006.08 - 2013.04)
HSV	GTS	VE | 6.0i V8	2006.08-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV	Senator	VE | 6.0i V8	2006.08-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV	Clubsport	VE | 6.0i V8	2006.08-2008.06	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.06)
HSV	Maloo	VE | 6.0i V8	2007.10-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2007.10 - 2008.03)
HSV	GTS	VE | 6.2i V8	2008.04-2010.10	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2010.10)
HSV	Clubsport	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Maloo	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Senator	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	GTS	VE | 6.2i V8	2010.10-2013.05	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2010.10 - 2013.05)
HSV	W427	VE | 7.0i V8	2008.07-2013.05	LS7 7009 Petrol 375 kW 510 BHP (2008.07 - 2013.05)
