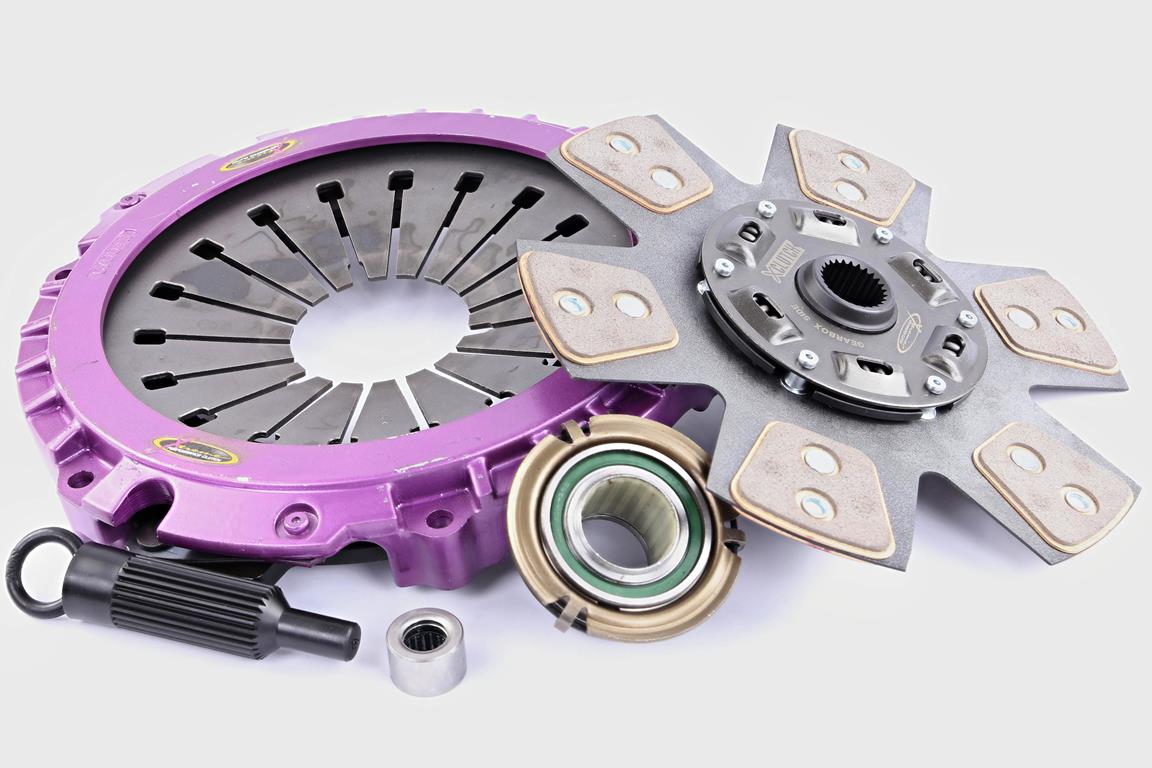

KGM28002-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 1150Nm
• Clamp load 1350kg 20% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	280
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	1150
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	1350Kg (20% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Pontiac	Firebird	5.7	1992.11-1996.12	LT1(350CUV8) 5733 Petrol 205 kW 279 BHP (1992.11 - 1996.12)
Chevrolet	Camaro	5.7 V8	1992.12-1998.07	LT1(350CUV8) 5733 Petrol 205 kW 279 BHP (1992.12 - 1998.07)
HSV	Senator	VR | 5.7i V8	1993.08-1995.04	HSVV8 5710 Petrol 215 kW 292 BHP (1993.08 - 1995.04)
HSV	GTS	VR | 5.7i V8	1994.05-1995.04	HSVV8 5737 Petrol 215 kW 292 BHP (1994.05 - 1995.04)
HSV	Grange	VS | 5.7	1996.10-1998.12	350STROKER 5710 Petrol 215 kW 292 BHP (1996.10 - 1998.12)
HSV	Senator	VS | 5.7i V8	1995.04-1997.08	HSVV8 5710 Petrol 215 kW 292 BHP (1995.04 - 1997.08)
HSV	GTS	VS | 5.7i V8	1995.04-1996.12	HSVV8 5737 Petrol 215 kW 292 BHP (1995.04 - 1996.12)
HSV	GTS	VT | 5.7i V8	1997.09-1999.06	HSVV8 5737 Petrol 220 kW 299 BHP (1997.09 - 1999.06)
HSV	Senator	VT | 5.7i V8	1997.09-1999.06	HSVV8 5737 Petrol 220 kW 299 BHP (1997.09 - 1999.06)
HSV	Senator	VT | 5.7i V8	1997.09-1999.06	HSVV8 5737 Petrol 230 kW 313 BHP (1997.09 - 1999.06)
