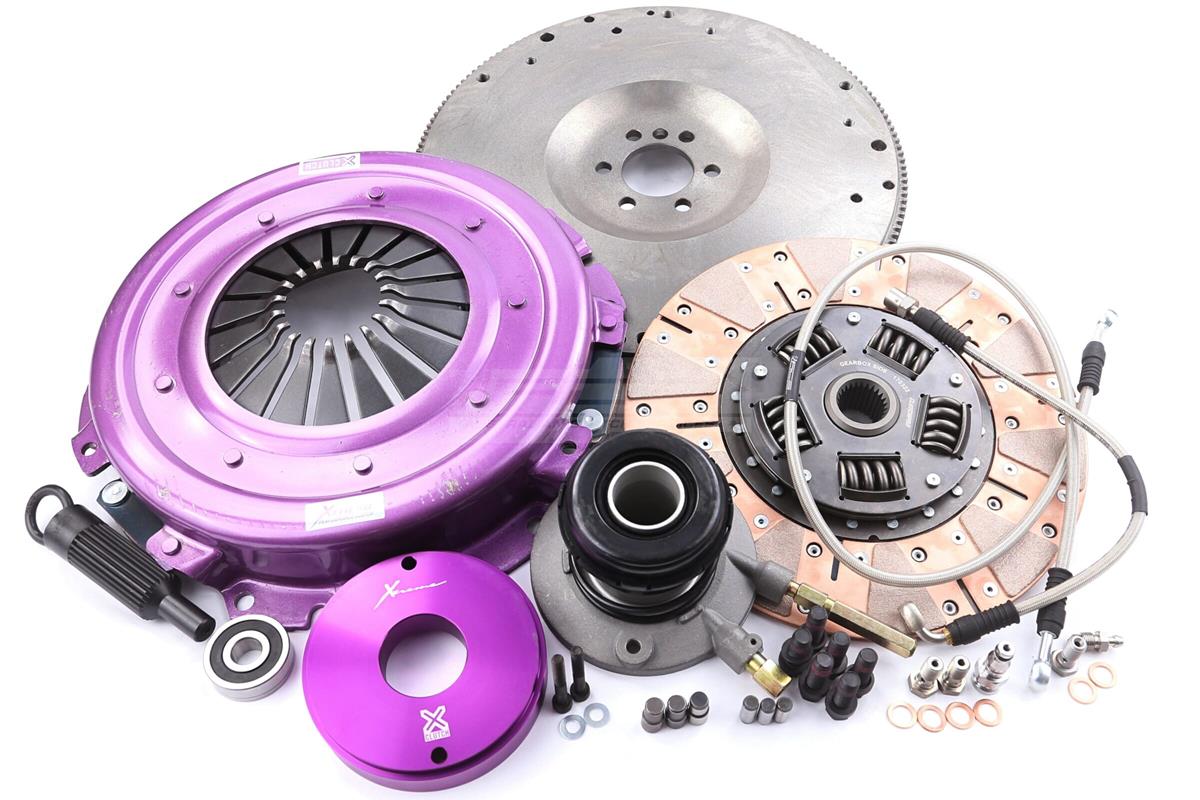

KGM28692-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 1060Nm
• Clamp load Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	280
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	1060
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Vauxhall	VXR8 Maloo	6.2	2008.04-2011.08	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
Holden	H Series	VE | 6.0 Flex	2010.09-2013.04	L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.08-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV	Senator	VE | 6.0i V8	2006.08-2013.04	LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2006.08 - 2013.04)
HSV	GTS	VE | 6.0i V8	2006.08-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV	Senator	VE | 6.0i V8	2006.08-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV	Clubsport	VE | 6.0i V8	2006.08-2008.06	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.06)
HSV	Maloo	VE | 6.0i V8	2007.10-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2007.10 - 2008.03)
HSV	GTS	VE | 6.2i V8	2008.04-2010.10	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2010.10)
HSV	Clubsport	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Maloo	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Senator	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	W427	VE | 7.0i V8	2008.07-2013.05	LS7 7009 Petrol 375 kW 510 BHP (2008.07 - 2013.05)
