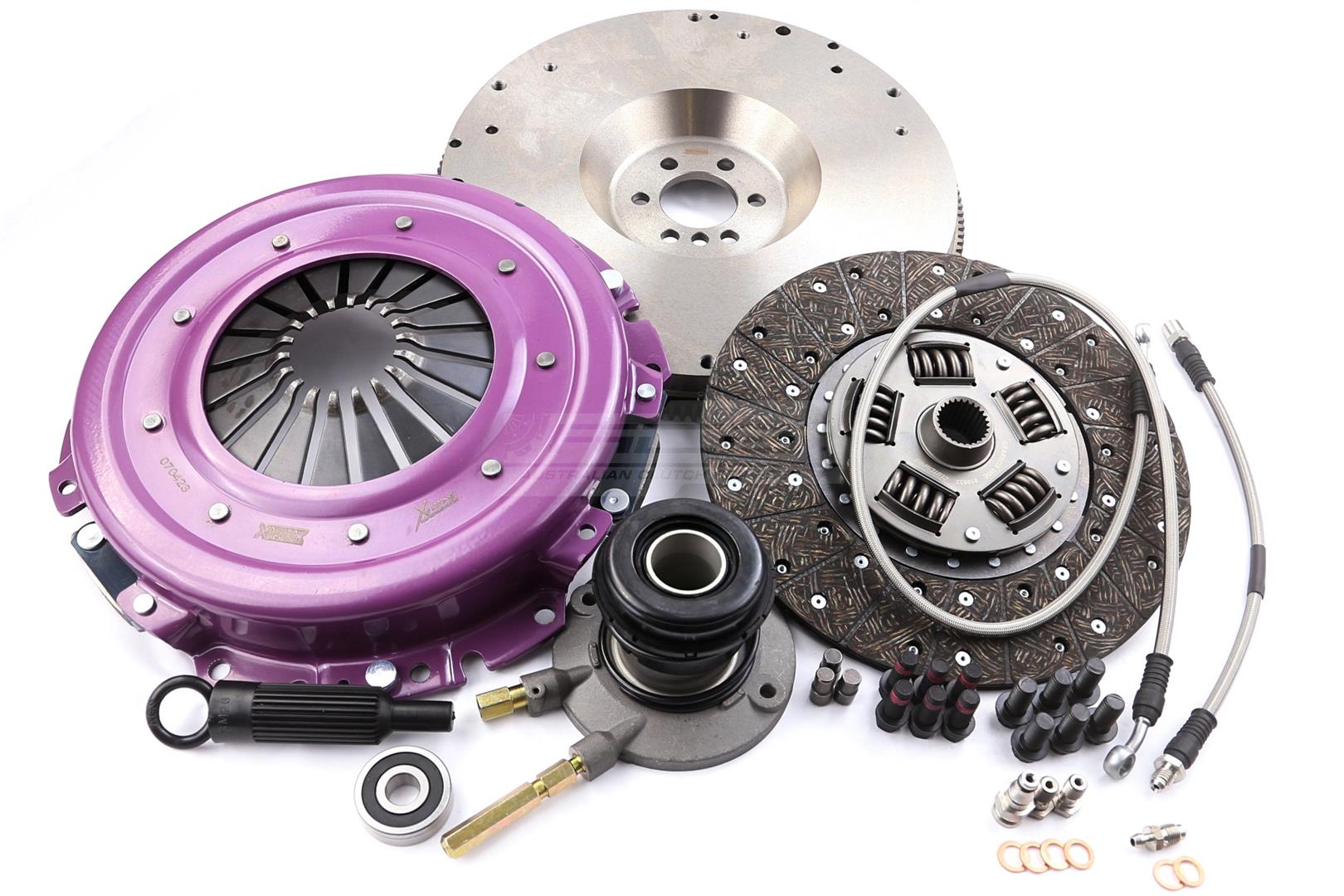

KGM28696-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 710Nm

• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	280
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	710
Flywheel Step	Flat
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Vauxhall	VXR8 Maloo	6.2	2008.04-2011.08	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
Holden	H Series	VE | 6.0 Flex	2010.09-2013.04	L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.08-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV	Clubsport	VE | 6.2 R8	2012.02-2013.05	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2012.02 - 2013.05)
HSV	Clubsport	VE | 6.2 R8 LPG	2012.08-2013.05	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2012.08 - 2013.05)
HSV	Clubsport	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Maloo	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Senator	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	GTS	VE | 6.2i V8	2010.10-2013.05	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2010.10 - 2013.05)
HSV	Senator	VE | 6.2i V8	2012.08-2013.04	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2012.08 - 2013.04)
Holden	H Series	VF | 6.0i SS. SS-V	2013.05-2015.09	L77(364CUV8) 5967 Petrol 270 kW 367 BHP (2013.05 - 2015.09)
Holden	H Series	VF | 6.0i V8	2013.06-2015.09	L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2013.06 - 2015.09)
Holden	H Series	VF | 6.0i V8 SS. SS-V	2013.05-2015.09	L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2013.05 - 2015.09)
Holden	H Series	VF | 6.2i SS. SS-V	2015.09-2017.10	LS3(376CUV8) 6162 Petrol 304 kW 413 BHP (2015.09 - 2017.10)
HSV	Clubsport	VF | 6.2i V8	2013.05-2015.08	LS3 6162 Petrol 340 kW 462 BHP (2013.05 - 2015.08)
Holden	H Series	VF | 6.2i V8	2015.09-2017.10	LS3(376CUV8) 6162 Petrol 304 kW 413 BHP (2015.09 - 2017.10)
HSV	Clubsport	VF | 6.2i V8	2013.05-2014.10	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2013.05 - 2014.10)
HSV	Maloo	VF | 6.2i V8	2013.05-2014.10	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2013.05 - 2014.10)
HSV	Clubsport	VF | 6.2i V8	2013.05-2014.10	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2013.05 - 2014.10)
HSV	Maloo	VF | 6.2i V8	2013.05-2014.10	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2013.05 - 2014.10)
HSV	Clubsport	VF | 6.2i V8	2013.06-2015.08	LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2013.06 - 2015.08)
HSV	Senator	VF | 6.2i V8	2013.05-2015.08	LS3(376CUV8) 6162 Petrol 340 kW 462 BHP (2013.05 - 2015.08)
HSV	Maloo	VF | 6.2i V8	2013.05-2016.12	LS3(376CUV8) 6162 Petrol 340 kW 462 BHP (2013.05 - 2016.12)
