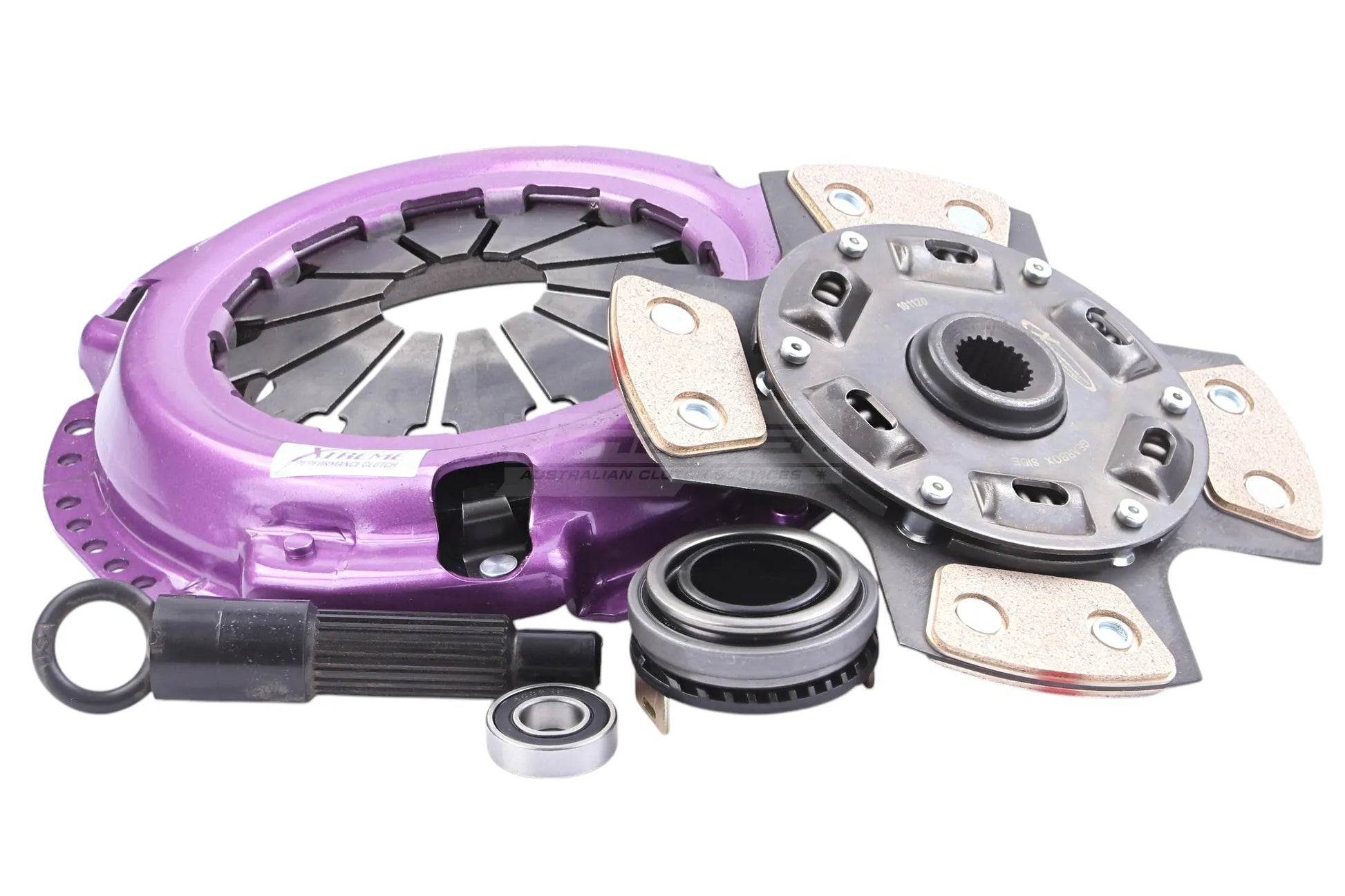

KHN20003-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 320Nm
• Clamp load 500kg 60% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	320
Flywheel Step	-.65mm/.025""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	500Kg (60% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Civic	Gen. IV | 1.5 i 16V (ED6)	1987.10-1993.10	D15B4 1493 Petrol 72 kW 98 BHP (1987.10 - 1993.10)	320	Track Use	Not included
Honda	Civic	Gen. IV | 1.5 i 16V (ED6)	1988.10-1991.08	D15B2 1493 Petrol 69 kW 94 BHP (1988.10 - 1991.08)	320	Track Use	Not included
Honda	Civic	Gen. IV | 1.6 i 16V	1988.01-1991.12	D16A7 1590 Petrol 91 kW 124 BHP (1988.01 - 1991.12)	320	Track Use	Not included
Honda	Civic	Gen. IV | 1.6 i 16V (ED7)	1987.09-1991.09	D16A9, D16A7 1590 Petrol 96 kW 130 BHP (1987.09 - 1991.09)	320	Track Use	Not included
Honda	Civic	Gen. IV | 1.5 i 16V (ED3)	1987.10-1993.10	D15B4 1493 Petrol 72 kW 98 BHP (1987.10 - 1993.10)	320	Track Use	Not included
Honda	Civic	Gen. IV | 1.6 i 16V (ED4)	1987.11-1991.09	D16A6 1590 Petrol 80 kW 109 BHP (1987.11 - 1991.09)	320	Track Use	Not included
Honda	Concerto	1.5 i 16V (MA1)	1989.08-1995.03	D15B2 1493 Petrol 66 kW 90 BHP (1989.08 - 1995.03)	320	Track Use	Not included
Honda	CRX	Gen. I | 1.6 i 16V (AS)	1986.03-1987.10	ZC1 1590 Petrol 92 kW 125 BHP (1986.03 - 1987.10)	320	Track Use	Not included
Honda	CRX	Gen. II | 1.6 i 16V	1987.10-1991.12	D16A6, D16A 1590 Petrol 79 kW 107 BHP (1987.10 - 1991.12)	320	Track Use	Not included
Honda	CRX	Gen. II | 1.6 i 16V (ED9)	1987.10-1989.12	D16A8, D16A9 1590 Petrol 96 kW 131 BHP (1987.10 - 1989.12)	320	Track Use	Not included
