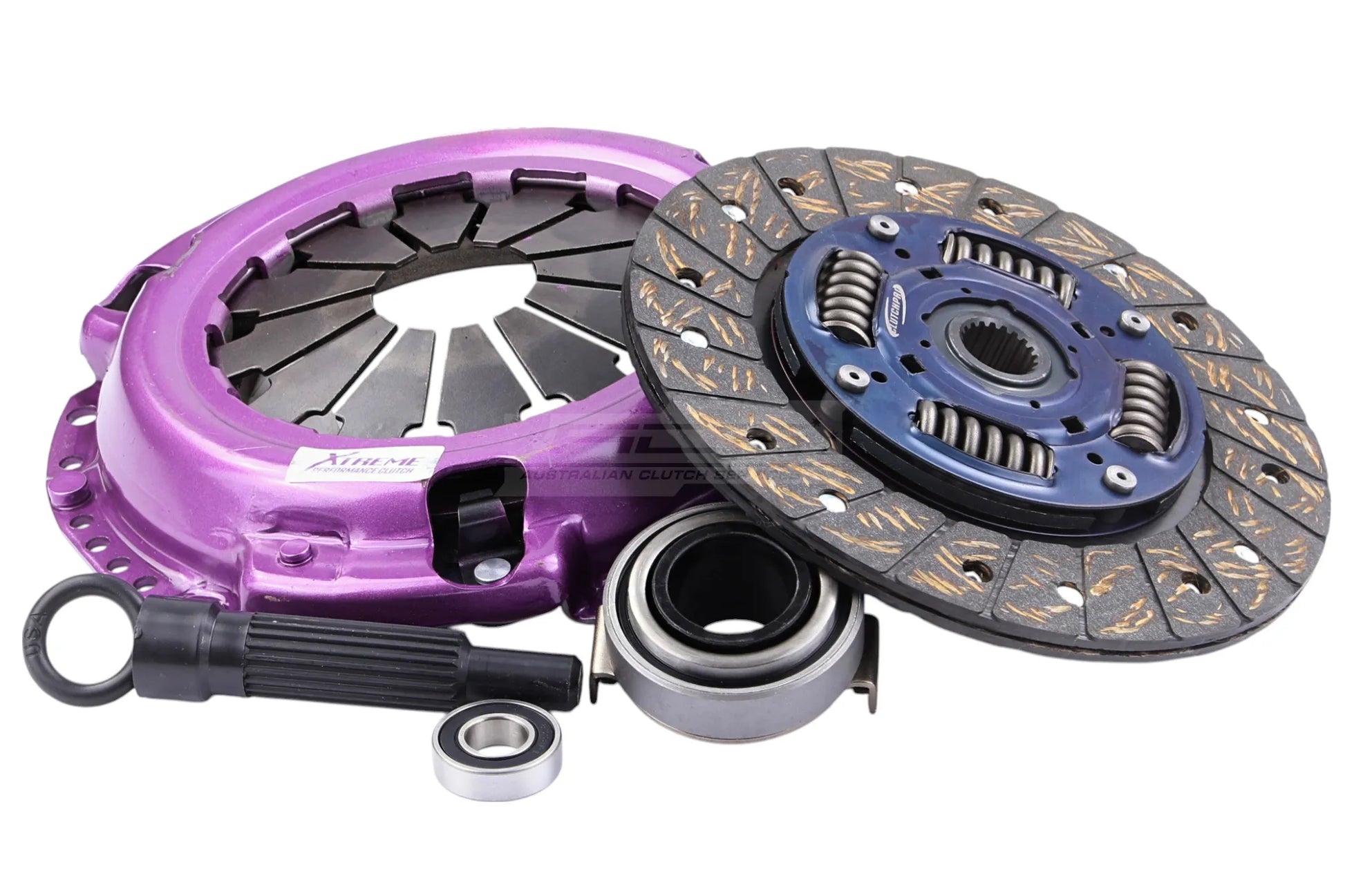

KHN20006-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 200Nm

• Clamp load 500kg 60% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	200
Flywheel Step	-.65mm/.025""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	500Kg (60% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Civic	Gen. V | 1.3 16V (EG3)	1991.10-1995.11	D13B2 1343 Petrol 55 kW 75 BHP (1991.10 - 1995.11)	200	Street Upgrade	Not included
Honda	Civic	Gen. V | 1.5 i 16V (EG4)	1991.10-1995.11	D15Z1, D15B2, D15B3, D15Z2, D15B4 1493 Petrol 66 kW 90 BHP (1991.10 - 1995.11)	200	Street Upgrade	Not included
Honda	Civic	Gen. IX | 1.4 i-VTEC (FK1)	2012.02-2016.01	L13Z4 1339 Petrol 73 kW 99 BHP (2012.02 - 2016.01)	200	Street Upgrade	Not included
Honda	Civic	Gen. V | 1.3 (EG7)	1992.01-1992.12	D13B2 1343 Petrol 55 kW 75 BHP (1992.01 - 1992.12)	200	Street Upgrade	Not included
Honda	Civic	Gen. V | 1.5 (EG8)	1993.06-1995.06	D15Z1 1493 Petrol 88 kW 120 BHP (1993.06 - 1995.06)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.4 i (EJ9)	1995.11-2001.02	D14A3, D14Z1 1396 Petrol 55 kW 75 BHP (1995.11 - 2001.02)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.4 i S (EJ9)	1995.11-2001.02	D14A4, D14Z4, D14Z2 1396 Petrol 66 kW 90 BHP (1995.11 - 2001.02)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.5 i (EK3)	1995.11-2001.02	D15Z6, D15Z4 1493 Petrol 84 kW 114 BHP (1995.11 - 2001.02)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.6 i (EK1)	1995.10-2000.09	D16Y4 1590 Petrol 88 kW 120 BHP (1995.10 - 2000.09)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.6 i (EK1)	1995.11-2001.02	D16Y5 1590 Petrol 84 kW 114 BHP (1995.11 - 2001.02)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.5 i (EK3)	1995.11-2001.02	D15Z6 1493 Petrol 84 kW 114 BHP (1995.11 - 2001.02)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.5 i (EK3)	1995.09-1999.08	D15B 1493 Petrol 96 kW 131 BHP (1995.09 - 1999.08)	200	Street Upgrade	Not included
Honda	Civic	Gen. VI | 1.6 (EK1, EJ6)	1995.10-2000.09	D16Y4 1590 Petrol 88 kW 120 BHP (1995.10 - 2000.09)	200	Street Upgrade	Not included
Honda	Civic	Gen. VII | 1.4 i (EP1, EU7)	2001.02-2005.09	D14Z6 1396 Petrol 55 kW 75 BHP (2001.02 - 2005.09)	200	Street Upgrade	Not included
Honda	Civic	Gen. VII | 1.4 iS (EP1, EU5, EU7)	2000.11-2005.09	D14Z5, D14Z6 1396 Petrol 66 kW 90 BHP (2000.09 - 2005.09)	200	Street Upgrade	Not included
Honda	Civic	Gen. VII | 1.4 (ES4)	2000.12-2005.09	D14Z5 1396 Petrol 66 kW 90 BHP (2000.12 - 2005.09)	200	Street Upgrade	Not included
Honda	Civic	Gen. VIII | 1.4 (FK1, FN4)	2008.10-2011.12	L13Z1 1339 Petrol 73 kW 100 BHP (2008.10 - 2011.12)	200	Street Upgrade	Not included
Honda	Domani	1.5 (MA7)	1992.10-1995.09	D15B3 1493 Petrol 69 kW 94 BHP (1992.10 - 1995.09)	200	Street Upgrade	Not included
Honda	Domani	1.6 (MB4)	1995.10-1999.09	D16A, D16Z2 1590 Petrol 88 kW 120 BHP (1995.10 - 1999.09)	200	Street Upgrade	Not included
Honda	HR-V	1.5 (RU1)	2015.08-	L15B4 1498 Petrol 96 kW 130 BHP (2015.08 - )	200	Street Upgrade	Not included
Honda	Integra	1.6 (DB6)	1993.09-2001.08	ZC1 1590 Petrol 88 kW 120 BHP (1993.09 - 2001.08)	200	Street Upgrade	Not included
Honda	Integra	1.6 4WD (DB9)	1993.09-2001.08	ZC1 1590 Petrol 88 kW 120 BHP (1993.09 - 2001.08)	200	Street Upgrade	Not included
Honda	Orthia / Partner	1.3 (EY6)	1995.10-2002.09	D13BG 1343 Petrol 67 kW 91 BHP (1995.10 - 2002.09)	200	Street Upgrade	Not included
Honda	Orthia / Partner	1.5 (EY7)	1995.10-2002.09	D15B 1493 Petrol 77 kW 105 BHP (1995.10 - 2002.09)	200	Street Upgrade	Not included
