KHN22003-1R

Recommended for: Motorsport Applications

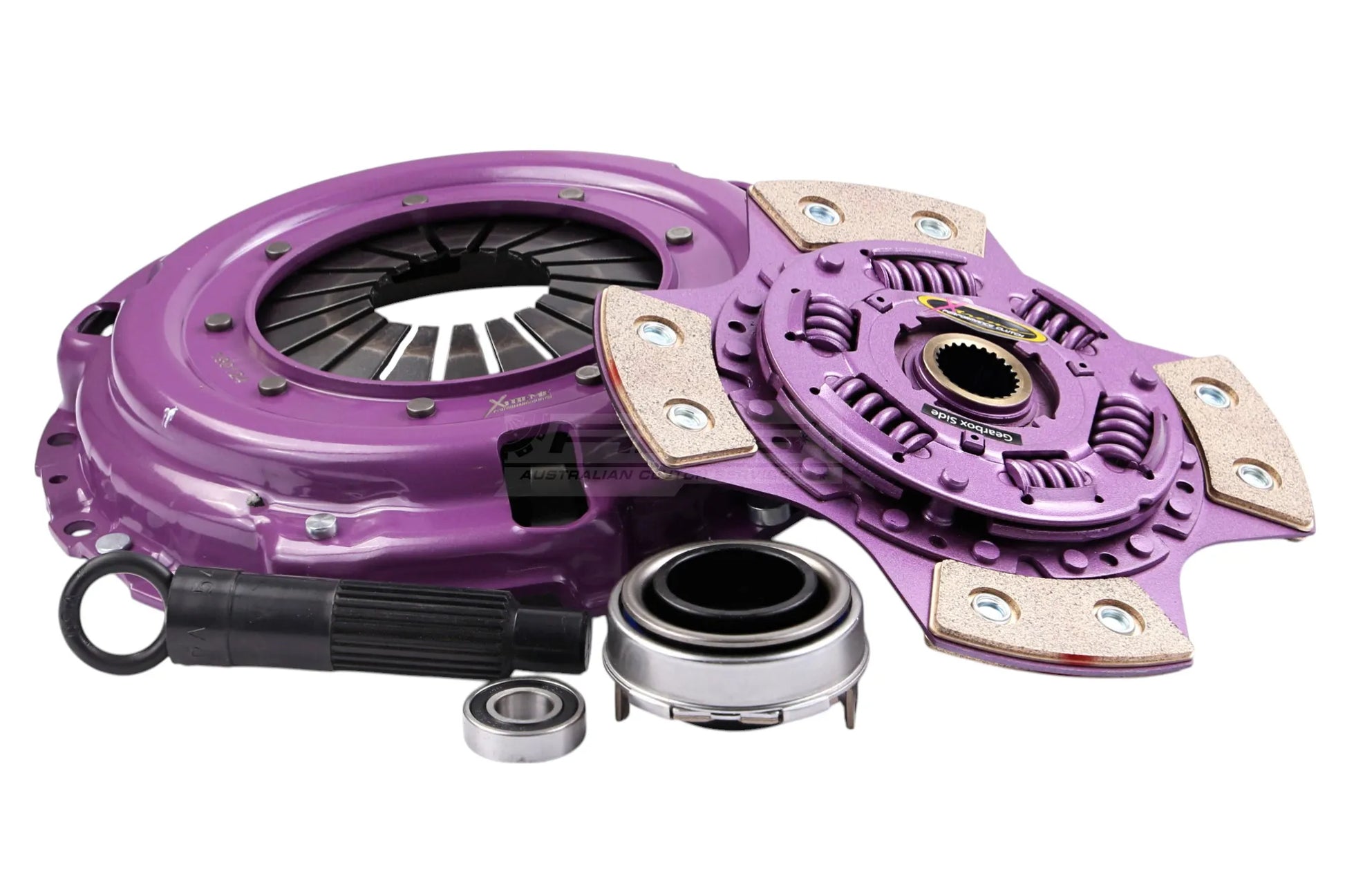

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 770Nm
• Clamp load 1200Kg 120% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	220
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25
Torque (Nm)	770
Flywheel Step	+2.75mm
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load	1200Kg (120% inc.)
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Integra	1.6 (DA6, DA8)	1989.09-1993.08	B16A 1595 Petrol 125 kW 170 BHP (1989.09 - 1993.08)	Suits vehicles manufactured until 10/1992.	770	Track Use	Not included
Honda	Civic	Gen. IV | 1.6 i 16V Vtec (EE9)	1989.10-1991.09	B16A1 1595 Petrol 110 kW 150 BHP (1989.10 - 1991.09)		770	Track Use	Not included
Honda	CRX	Gen. II | 1.6 i 16V Vtec (EE8)	1989.10-1992.02	B16A1 1595 Petrol 110 kW 150 BHP (1989.10 - 1992.02)		770	Track Use	Not included
Honda	Integra	1.8 (DA9)	1989.06-1993.07	B18A1, B18B1 1834 Petrol 96 kW 131 BHP (1989.06 - 1993.07)	Suits vehicles manufactured until 01/1992.	770	Track Use	Not included
