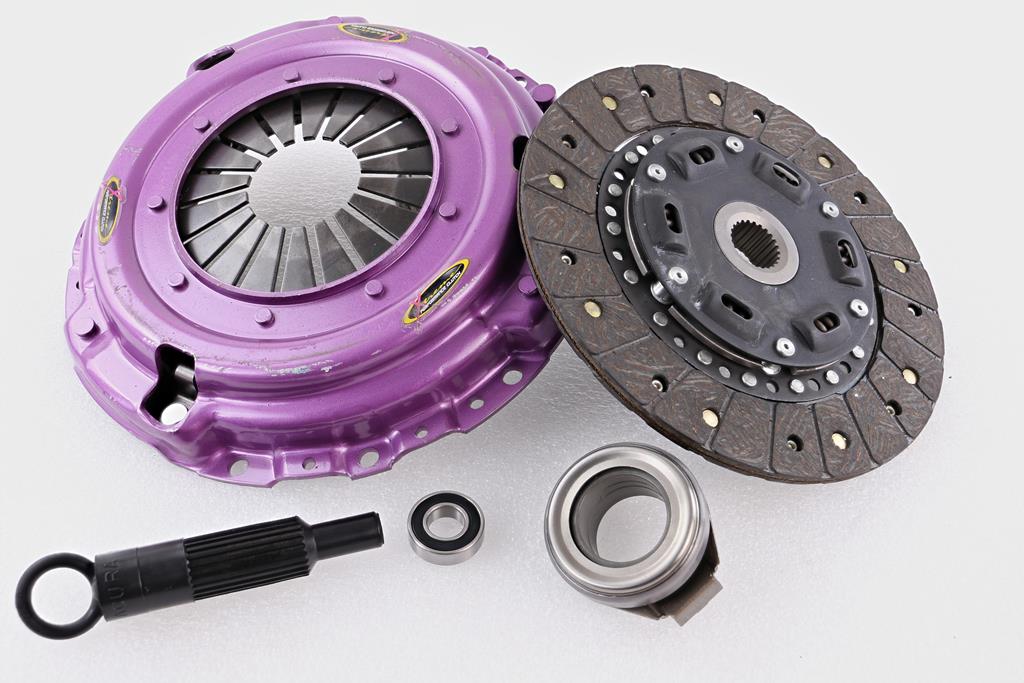

KHN22007-1T

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	220
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	26
Torque (Nm)	270
Flywheel Step	+2.75mm/.108""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	700Kg (45% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	CRX	Gen. III | 1.6 i VTi (EG2)	1992.03-1998.12	B16A2, B16A3 1595 Petrol 118 kW 160 BHP (1992.03 - 1998.12)	270	Street Upgrade	Not included
Honda	Civic	Gen. V | 1.6 i VTi (EG9)	1991.10-1995.11	B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)	270	Street Upgrade	Not included
Honda	Civic	Gen. V | 1.6 VTi 16V (EG6)	1991.10-1995.11	B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)	270	Street Upgrade	Not included
