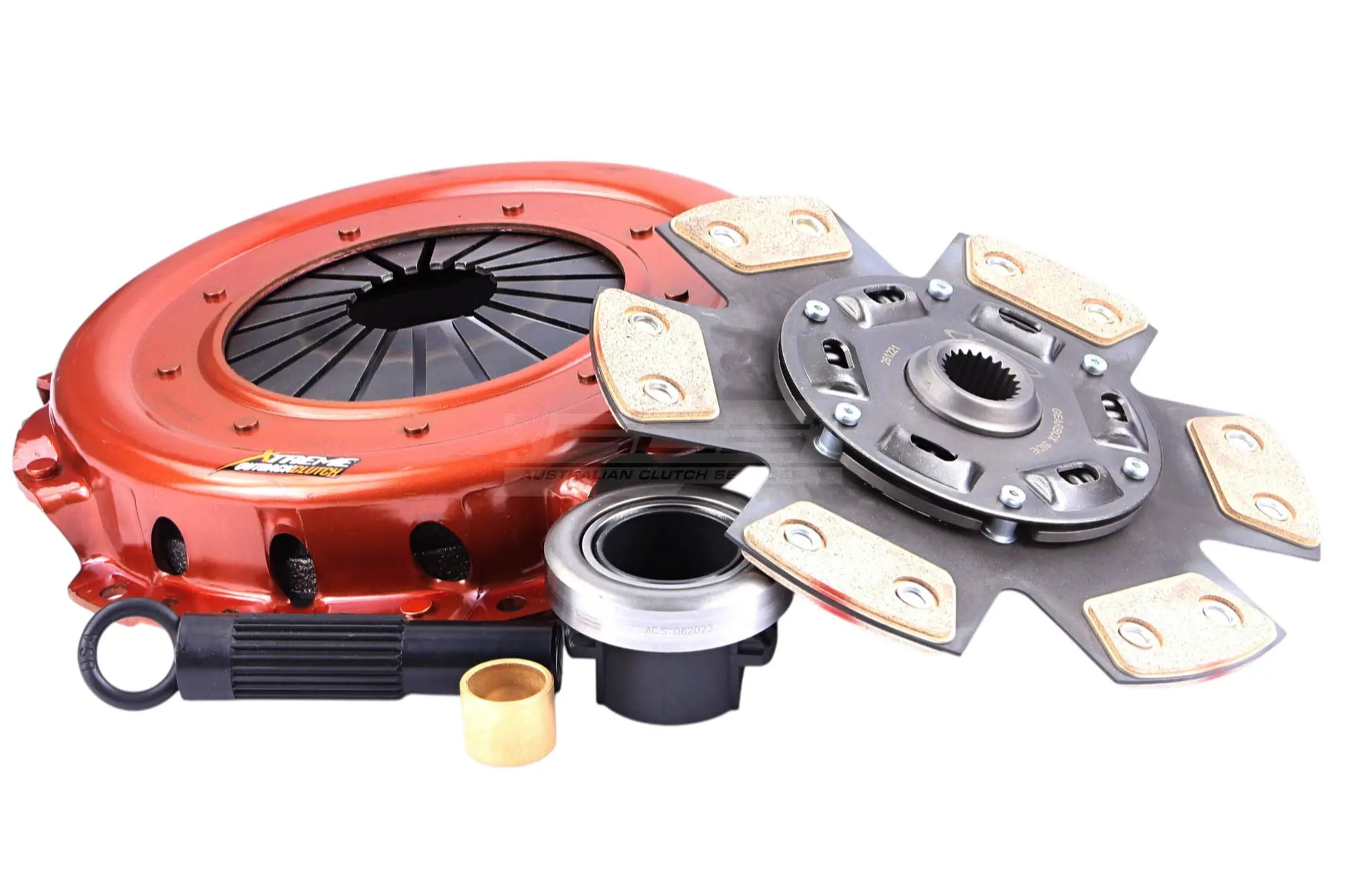

KLR24006-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 560Nm
• Clamp load 950Kg 30% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clamp Load	950Kg (30% inc.)
Flywheel Step	0
Clutch Disc Diameter (mm)	235
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26,3
Recommended for	High Speed 4x4 Trial or Desert Race - Stage 2
Design	Single Plate
Stage	Stage 2
Tech Bulletins	TSB-LR01

Compatibility
MG	ZT	2.0 CDTi	2002.06-2003.09	204D2 1951 Diesel 85 kW 116 BHP (2002.06 - 2003.09)
MG	ZT- T	2.0 CDTi	2002.06-2005.07	204D2 1951 Diesel 85 kW 116 BHP (2002.06 - 2005.07)
MG	ZT	2.0 CDTi	2002.11-2005.07	204D2 1951 Diesel 96 kW 131 BHP (2002.11 - 2005.07)
MG	ZT- T	2.0 CDTi	2002.11-2005.07	204D2 1951 Diesel 96 kW 131 BHP (2002.11 - 2005.07)
Land Rover	Range Rover	2.4 TD 4x4	1986.04-1990.12	11 A 2393 Diesel 78 kW 106 BHP (1986.04 - 1990.12)
Land Rover	Range Rover	2.4 TD 4x4	1986.04-1994.07	11 A 2393 Diesel 83 kW 113 BHP (1986.04 - 1994.07)
Land Rover	Range Rover	2.4 TD 4x4	1989.10-1992.02	11 A 2393 Diesel 89 kW 121 BHP (1989.10 - 1992.02)
Land Rover	110/127	2.5 D 4x4	1983.09-1990.07	12 J 2495 Diesel 51 kW 69 BHP (1983.09 - 1990.07)
Land Rover	Defender	2.5 TDI 4x4 (L316)	1990.08-1998.11	23 L, 11 L, 16 L 2495 Diesel 83 kW 113 BHP (1990.08 - 1998.11)
Land Rover	Defender	2.5 TDI 4x4 (L316)	1990.08-1998.12	23 L, 11 L, 16 L 2495 Diesel 83 kW 113 BHP (1990.08 - 1998.12)
Land Rover	Freelander	L314 | 2.0 Td4 4x4	2001.03-2006.10	204D3 1951 Diesel 80 kW 109 BHP (2001.03 - 2006.10)
Land Rover	Discovery	LJ | 2.5 TDI 4x4	1989.10-1998.10	12 L, 21 L, 17 L 2495 Diesel 83 kW 113 BHP (1989.10 - 1998.10)
Land Rover	Discovery	LJ | 2.5 TDI 4x4	1993.06-1998.10	19 L, 22 L 2495 Diesel 90 kW 122 BHP (1993.06 - 1998.10)
Rover	75	RJ | 2.0 CDT	1999.02-2005.05	204D2 1951 Diesel 85 kW 115 BHP (1999.02 - 2005.05)
Rover	75	RJ | 2.0 CDTi	2003.02-2005.05	204D2 1951 Diesel 96 kW 131 BHP (2003.02 - 2005.05)
