Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

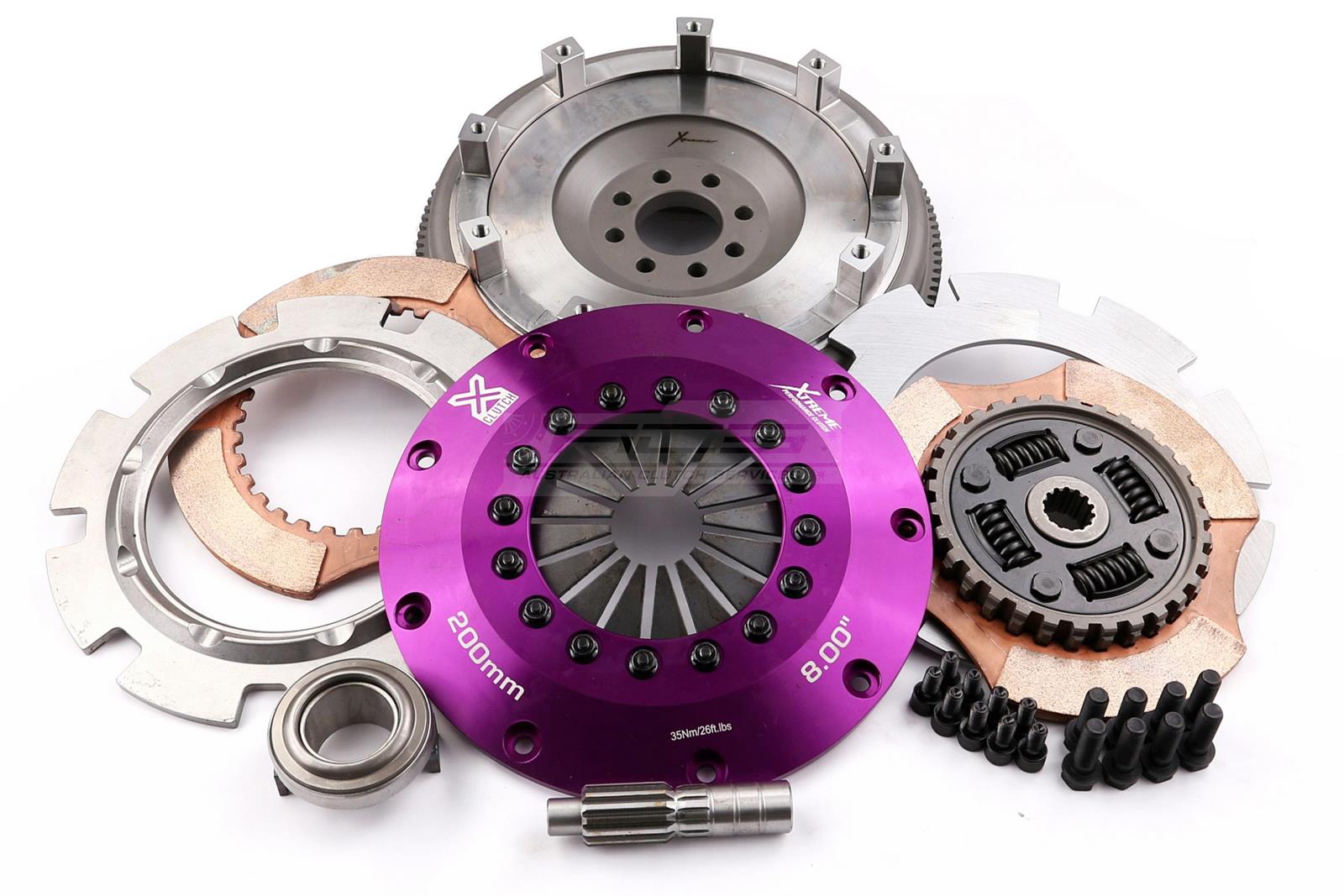

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")
Clutch Disc Diameter (mm) 200
Clutch Disc Spline Count 14
Clutch Disc Spline Diameter (mm) 25
Torque (Nm) 1200
Flywheel Step
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Mini Convertible (R52) Cooper S 2004.07-2007.11 W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11)
Mini Mini (R50, R53) John Copper Works 2006.03-2006.09 W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09)
Mini Convertible (R52) John Copper Works 2004.07-2007.11 W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11)
Mini Mini (R50, R53) S Works 2003.11-2005.06 W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06)
