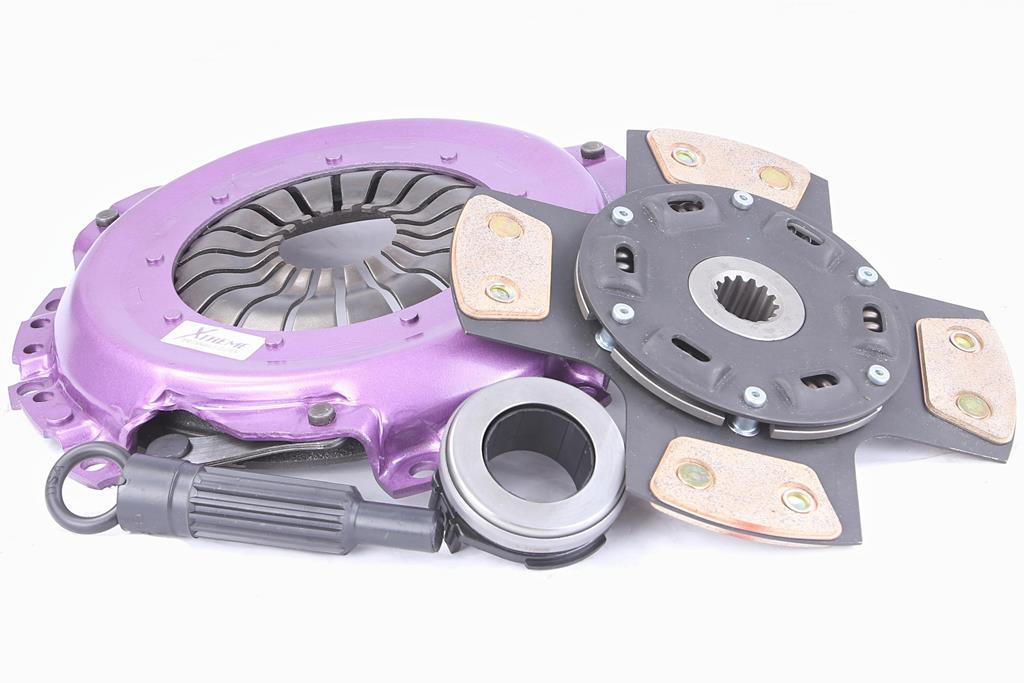

KMC22091-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 750Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	25
Torque (Nm)	750
Flywheel Step
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Mini	Mini (R50, R53)	Cooper S	2004.07-2006.09	W11 B16 A 1598 Petrol 125 kW 170 BHP (2004.07 - 2006.09)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Mini (R50, R53)	Cooper S	2002.03-2006.09	W11 B16 A 1598 Petrol 120 kW 163 BHP (2002.03 - 2006.09)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Convertible (R52)	Cooper S	2004.07-2008.07	W11 B16 A 1598 Petrol 125 kW 170 BHP (2004.07 - 2008.07)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Convertible (R52)	Cooper S	2004.07-2007.11	W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Mini (R50, R53)	John Copper Works	2006.03-2006.09	W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Convertible (R52)	John Copper Works	2004.07-2007.11	W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Mini (R50, R53)	S Works	2003.11-2005.06	W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06)	Suitable Only for Conversion Kit KMC22591-1*
Mini	Mini (R50, R53)	Works	2003.11-2006.09	W11 B16 A 1598 Petrol 155 kW 210 BHP (2003.11 - 2006.09)	Suitable Only for Conversion Kit KMC22591-1*
