KMI22001-1A

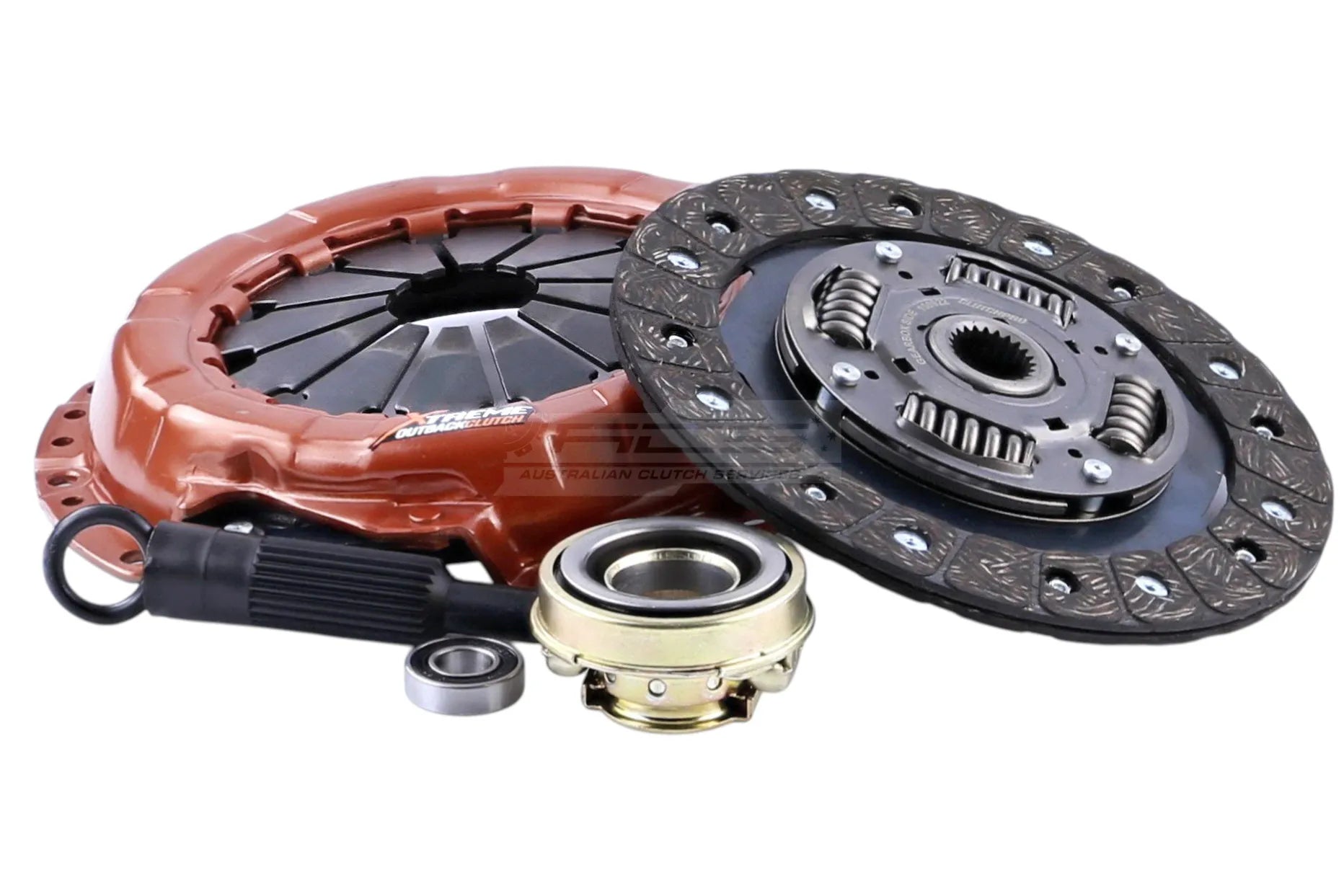

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26.3
Torque (Nm)	250
Flywheel Step	0
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	L300	Gen. III | 2.0 (P03V, P13V)	1986.11-1996.05	G63B 1997 Petrol 64 kW 87 BHP (1986.11 - 1996.05)
Mitsubishi	L300	Gen. II | 2.0 DL (L037P)	1982.06-1985.08	4G63 (SOHC 8V), G63B 1997 Petrol 66 kW 90 BHP (1982.06 - 1985.08)
Mitsubishi	L300	Gen. III | 2.0 (P03V, P13V)	1986.11-1988.07	4G63 (SOHC 8V) 1997 Petrol 66 kW 90 BHP (1986.11 - 1988.07)
Mitsubishi	L200	2.0	1981.10-1982.09	4G52 1995 Petrol 66 kW 90 BHP (1981.10 - 1982.09)
Mitsubishi	L200	2.0	1982.10-1986.10	4G52 1995 Petrol 66 kW 90 BHP (1982.10 - 1986.10)
Mitsubishi	L200	2.0 4WD	1981.07-1982.09	4G52 1995 Petrol 66 kW 90 BHP (1981.07 - 1982.09)
Mitsubishi	L200	2.0 4WD	1982.10-1986.10	4G52 1995 Petrol 66 kW 90 BHP (1982.10 - 1986.10)
Mitsubishi	L300	Gen. III | 2.0 (P03W, P13W)	1986.11-2004.05	4G63 (SOHC 8V) 1997 Petrol 66 kW 90 BHP (1986.11 - 2004.05)
Mitsubishi	L300	Gen. II | 2.0 4WD (L037)	1982.06-1986.10	4G63 (SOHC 8V) 1997 Petrol 74 kW 101 BHP (1982.06 - 1986.10)
Mitsubishi	L300	Gen. II | 2.0 DL 4WD (L037P)	1984.08-1991.10	4G63 (SOHC 8V) 1997 Petrol 74 kW 101 BHP (1984.08 - 1991.10)
Mitsubishi	L200	2.0 (K12T, K32T)	1986.11-1996.08	4G63 (SOHC 8V) 1997 Petrol 75 kW 102 BHP (1986.11 - 1996.08)
Mitsubishi	L300	Gen. III | 2.0 (P23V, P03V, P13V)	1994.06-1996.05	4G63 (SOHC 8V) 1997 Petrol 78 kW 106 BHP (1994.06 - 1996.05)
Mitsubishi	L300	Gen. III | 2.0 (P03V, P13V)	1994.06-1996.05	4G63 (SOHC 8V) 1997 Petrol 78 kW 106 BHP (1994.06 - 1996.05)
Mitsubishi	Delica / Space Gear	2.0 (PA3V)	1996.05-2004.05	4G63 (SOHC 16V) 1997 Petrol 78 kW 106 BHP (1996.05 - 2004.05)
Mitsubishi	Delica / Space Gear	2.0 (PA3V)	1996.05-2004.05	4G63 (SOHC 16V) 1997 Petrol 85 kW 116 BHP (1996.05 - 2004.05)
Mitsubishi	L300	Gen. III | 2.0 GLS (P03W, P13W)	1994.06-1996.05	4G63 (SOHC 16V) 1997 Petrol 78 kW 106 BHP (1994.06 - 1996.05)
Mitsubishi	L300	Gen. III | 2.0 (P03W, P13W)	1994.06-1998.10	4G63 (SOHC 16V) 1997 Petrol 83 kW 113 BHP (1994.06 - 1998.10)
