1 1

ACS

KMI23002-1C

KMI23002-1C

€709,42 EUR
€709,42 EUR
In offerta Esaurito

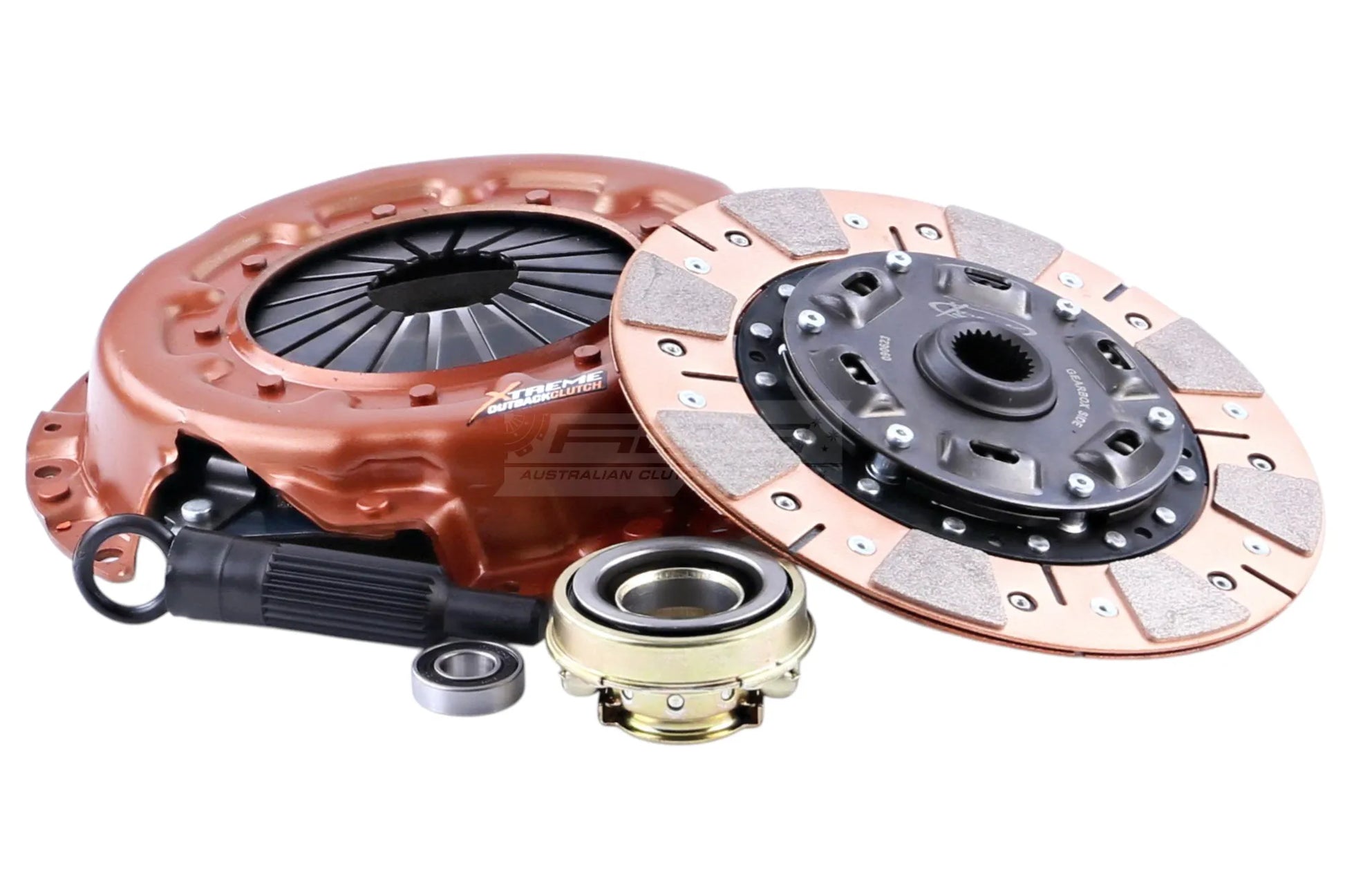

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 410Nm
  • Clamp load 630Kg 30% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 225
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26.3
Torque (Nm) 410
Flywheel Step 0
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 630Kg (30% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Mitsubishi L300 Gen. II | 2.3 D (L038P, L068P) 1983.09-1986.10 4D55 2346 Diesel 50 kW 68 BHP (1983.09 - 1986.10)
Mitsubishi L200 2.3 D 1982.10-1984.08 4D55 2346 Diesel 50 kW 68 BHP (1982.10 - 1984.08)
Mitsubishi L200 2.3 D 4WD 1982.10-1986.10 4D55 2346 Diesel 50 kW 68 BHP (1982.10 - 1986.10)
Mitsubishi Lancer Gen. V | 2.0 D (CB8A) 1992.06-1996.12 4D68 1998 Diesel 50 kW 68 BHP (1992.06 - 1996.12)
Mitsubishi Lancer Gen. V | 2.0 D (CB8W) 1992.12-2003.10 4D68 1998 Diesel 50 kW 68 BHP (1992.12 - 2003.10)
Mitsubishi L300 Gen. III | 2.5 D (P05W, P15W, P25W) 1986.11-2004.05 4D56 (8V) 2477 Diesel 51 kW 69 BHP (1986.11 - 2004.05)
Mitsubishi L300 Gen. III | 2.5 TD 4WD (P25V) 1991.11-2003.05 4D56-T 2477 Diesel 64 kW 87 BHP (1991.11 - 2003.05)
Mitsubishi L300 Gen. III | 2.5 TD 4WD (P25W, P35W) 1987.12-2004.05 4D56-T 2477 Diesel 64 kW 87 BHP (1987.12 - 2004.05)
Mitsubishi Lancer Gen. V | 2.0 TD (CB8W) 1995.03-2003.10 4D68-T 1998 Diesel 65 kW 88 BHP (1995.03 - 2003.10)
Mitsubishi Lancer Gen. V | 2.0 TD 4WD (CD8W) 1995.03-2003.10 4D68-T 1998 Diesel 65 kW 88 BHP (1995.03 - 2003.10)
Mitsubishi Galant Gen. VII | 2.0 GLSTD (E57A) 1992.11-1996.08 4D68-T 1998 Diesel 66 kW 90 BHP (1992.11 - 1996.08)
Mitsubishi Pajero Gen. I | 2.6 4WD (L042G, L047G) 1983.01-1987.09 4G54 2555 Petrol 76 kW 103 BHP (1983.01 - 1987.09)
Mitsubishi Delica / Space Gear 2.0 (PA3V) 1996.05-2004.05 4G63 (SOHC 16V) 1997 Petrol 78 kW 106 BHP (1996.05 - 2004.05)
Mitsubishi L300 Gen. III | 2.0 GLS (P03W, P13W) 1994.06-1996.05 4G63 (SOHC 16V) 1997 Petrol 78 kW 106 BHP (1994.06 - 1996.05)
Mitsubishi L200 2.6 (K33T) 1986.10-1996.10 4G54 2555 Petrol 79 kW 107 BHP (1986.10 - 1996.10)
Mitsubishi L200 2.6 4WD (K33T) 1986.01-1995.05 4G54 2555 Petrol 79 kW 107 BHP (1986.01 - 1995.05)
Mitsubishi L300 Gen. III | 2.0 (P23W, P23V) 2003.11-2006.02 4G63 (SOHC 16V) 1997 Petrol 83 kW 112 BHP (2003.11 - 2006.02)
Mitsubishi L300 Gen. III | 2.4 (P24V, P24W) 1986.11-1997.08 4G64 (8V), G64B 2351 Petrol 82 kW 112 BHP (1986.11 - 1997.08)
Mitsubishi L300 Gen. III | 2.4 4WD (P24V, P24W) 1986.11-1997.08 4G64 (8V), G64B 2351 Petrol 82 kW 112 BHP (1986.11 - 1997.08)
Mitsubishi L300 Gen. III | 2.4 (P04W, P14W) 1990.11-2004.05 4G64 (8V) 2351 Petrol 82 kW 112 BHP (1990.11 - 2004.05)
Mitsubishi L300 Gen. III | 2.4 4WD (P24W) 1986.08-2004.05 4G64 (8V) 2351 Petrol 82 kW 112 BHP (1986.08 - 2004.05)
Mitsubishi L300 Gen. III | 2.0 i (P00W, P03W, P13W) 1994.06-1998.10 4G63 (SOHC 16V) 1997 Petrol 83 kW 113 BHP (1994.06 - 1998.10)
Mitsubishi L300 Gen. III | 2.4 (P04V, P14V) 2006.03-2013.09 4G64 (16V) 2351 Petrol 84 kW 114 BHP (2006.03 - 2013.09)
Mitsubishi L200 2.6 (K13T) 1986.11-1996.10 4G54 2555 Petrol 84 kW 114 BHP (1986.11 - 1996.10)
Mitsubishi L200 2.6 4WD (K33T) 1986.11-1996.10 4G54 2555 Petrol 84 kW 114 BHP (1986.11 - 1996.10)
Mitsubishi Delica / Space Gear 2.0 (PA3V) 1996.05-2004.05 4G63 (SOHC 16V) 1997 Petrol 85 kW 116 BHP (1996.05 - 2004.05)
Mitsubishi L300 Gen. III | 2.4 (P04W, P14W) 1991.09-2013.12 2351 Petrol 85 kW 116 BHP (1991.09 - 2013.12)
Mitsubishi L300 Gen. III | 2.4 (P04V, P14V) 1994.09-2006.02 4G64 (16V) 2351 Petrol 97 kW 131 BHP (1994.09 - 2006.02)
Mitsubishi L300 Gen. III | 2.4 (P24V) 1994.09-2006.02 4G64 (16V) 2351 Petrol 97 kW 131 BHP (1994.09 - 2006.02)
Mitsubishi L400 2.4 (PA4W) 1996.06-2006.02 4G64 (16V) 2351 Petrol 97 kW 132 BHP (1996.06 - 2006.02)
Mitsubishi Delica / Space Gear 2.4 (PA4W, PB4W, PC4W) 1994.09-2004.05 4G64 (16V) 2351 Petrol 97 kW 132 BHP (1994.09 - 2004.05)
Mitsubishi Delica / Space Gear 2.4 4x4 (PD4W) 1995.05-2000.05 4G64 (16V) 2351 Petrol 97 kW 132 BHP (1995.05 - 2000.05)
Mitsubishi L300 Gen. III | 2.4 (P04W, P14W) 1994.09-2004.05 4G64 (16V) 2351 Petrol 97 kW 132 BHP (1994.09 - 2004.05)
Mitsubishi L300 Gen. III | 2.4 (P24W) 1994.09-2001.02 4G64 (16V) 2351 Petrol 97 kW 132 BHP (1994.09 - 2001.02)
