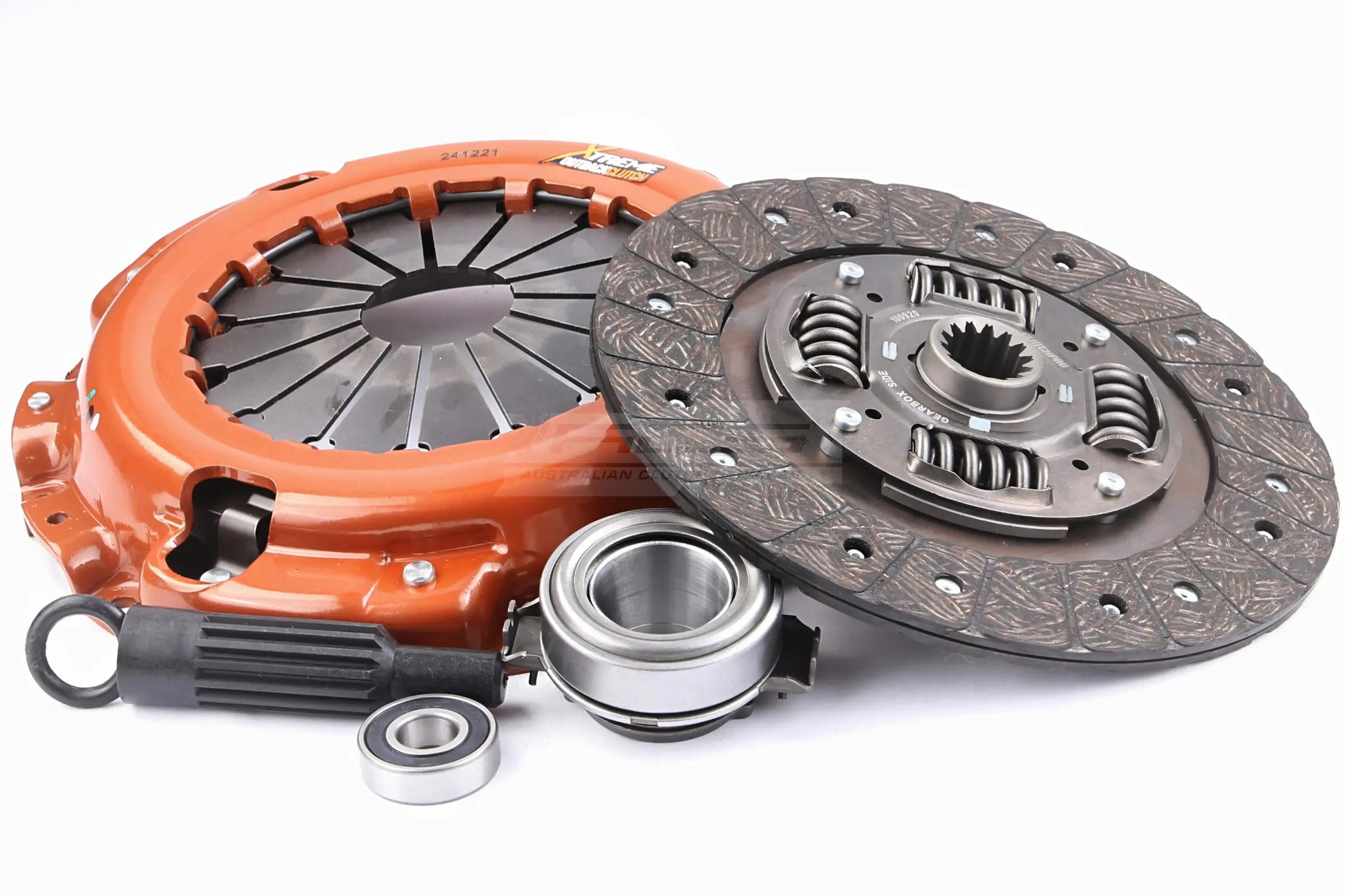

KMI24020-1A

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

• Torque capacity 320Nm

• Clamp load 20% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	320
Flywheel Step	0.5
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	20% increased
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	Pajero	Gen. I | 3.0 V6 (L141G, L146G)	1988.11-1990.11	6G72 (SOHC 12V) 2972 Petrol 104 kW 141 BHP (1988.11 - 1990.11)
Mitsubishi	Pajero	Gen. I | 3.0 V6 4WD	1988.05-1991.05	6G72 (SOHC 12V) 2972 Petrol 105 kW 143 BHP (1988.05 - 1991.05)
Mitsubishi	L200	3.0 4WD	1990.09-1996.10	6G72 (SOHC 12V) 2972 Petrol 109 kW 148 BHP (1990.09 - 1996.10)
Mitsubishi	Pajero	Gen. II | 3.0 V6 (V23C)	1990.12-1995.12	6G72 (SOHC 12V) 2972 Petrol 110 kW 150 BHP (1990.12 - 1995.12)
Mitsubishi	Pajero	Gen. II | 3.0 V6 4WD (V23W, V43W)	1990.12-1997.12	6G72 (SOHC 12V) 2972 Petrol 110 kW 150 BHP (1990.12 - 1997.12)
Mitsubishi	Pajero	Gen. II | 3.0 V6 4WD (V43W, V23W)	1997.06-1999.10	6G72 (SOHC 24V) 2972 Petrol 130 kW 177 BHP (1997.06 - 1999.10)
Mitsubishi	Pajero	Gen. II | 3.0 V6 4WD (V43W, V23W)	1994.06-1997.05	6G72 (SOHC 24V) 2972 Petrol 133 kW 181 BHP (1994.06 - 1997.05)
Mitsubishi	L200	3.0 4WD (K76T)	1996.06-2006.08	6G72 (SOHC 24V) 2972 Petrol 133 kW 181 BHP (1996.06 - 2006.08)
