KMI25012-1A

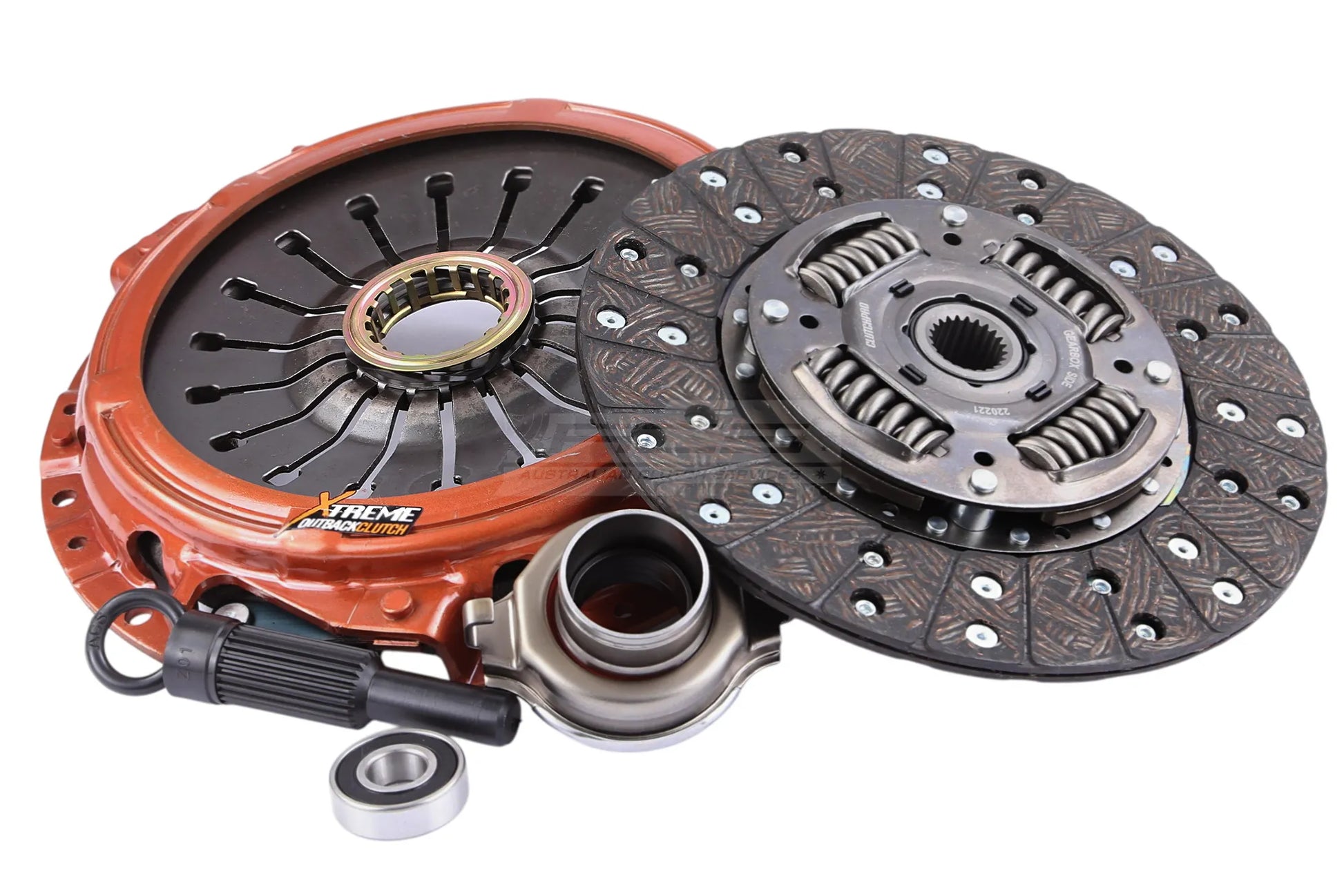

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26.3
Torque (Nm)	460
Flywheel Step
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	Pajero	Gen. III | 2.8 TD 4WD (V76W)	2000.05-2002.07	4M40-T 2835 Diesel 92 kW 125 BHP (2000.05 - 2002.07)
Mitsubishi	Pajero	Gen. III | 2.8 TD 4WD (V76W)	2000.05-2002.07	4M40-T 2835 Diesel 92 kW 125 BHP (2000.05 - 2002.07)
