KMI28506-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 750Nm
• Clamp load 1000Kg 20% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate

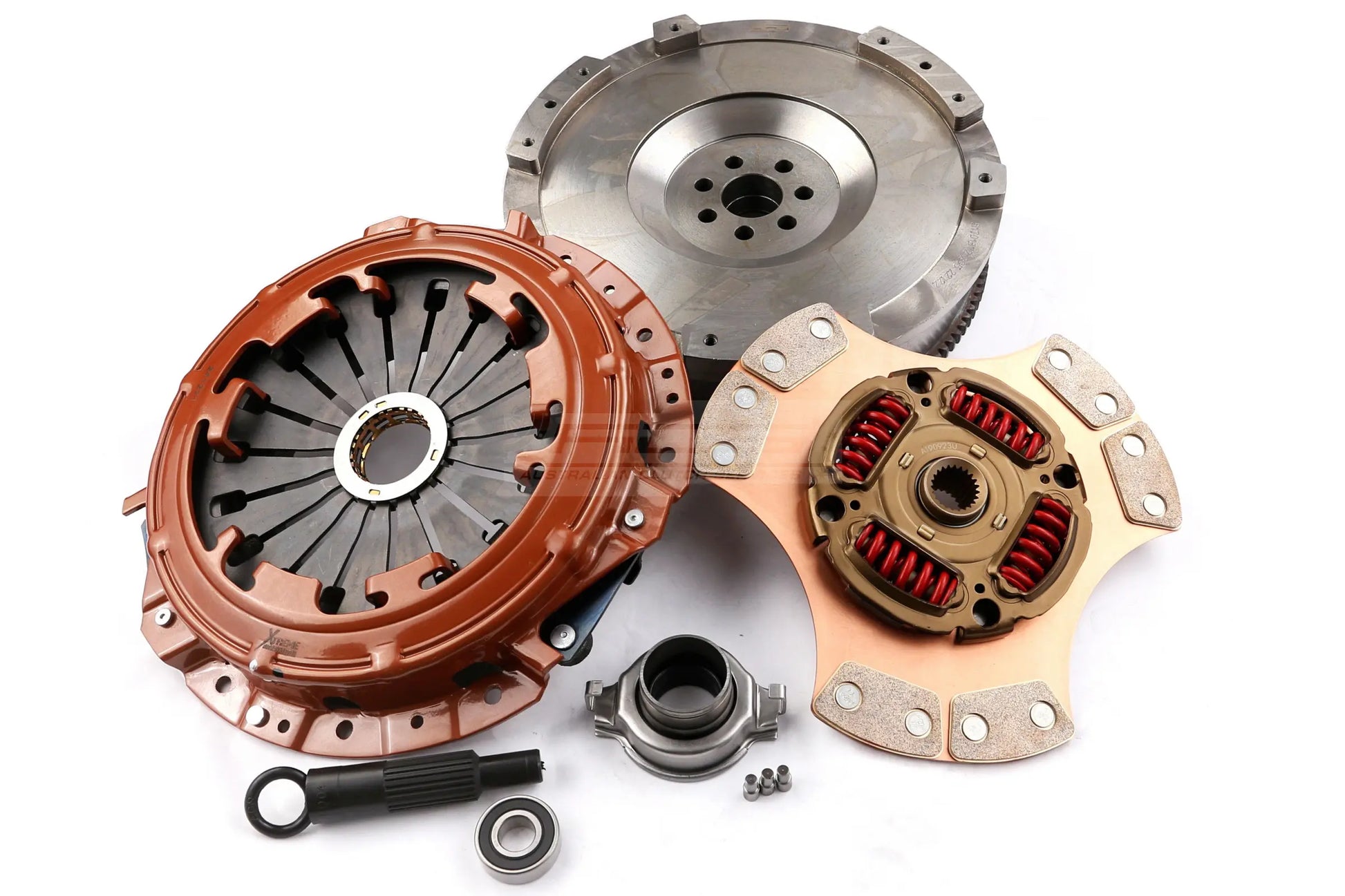

• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	740
Clamp Load	1000KG (20% inc.)
Flywheel Step	-14.0mm
Clutch Disc Diameter (mm)	275
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26,25
Design	Single Plate
Diameter [mm]	275
Stage	Stage 2

Compatibility
Mitsubishi	Pajero	Gen. II | 3.2 DiD 4WD	2005.05-2007.09	4M41 3200 Diesel 118 kW 160 BHP (2005.05 - 2007.09)
Mitsubishi	Pajero	Gen. III | 3.2 DI-D (V68W, V78W)	2001.10-2006.12	4M41 3200 Diesel 118 kW 160 BHP (2001.10 - 2006.12)
Mitsubishi	Pajero	Gen. III | 3.2 DI-D (V68W)	2000.04-2006.12	4M41 3200 Diesel 118 kW 160 BHP (2000.04 - 2006.12)
Mitsubishi	Pajero	Gen. IV | 3.2 DI-D 4WD (V88W, V98W)	2007.02-	4M41 3200 Diesel 118 kW 160 BHP (2007.02 - )
Mitsubishi	Pajero	Gen. II | 3.2 DI-D 4WD	2000.04-2007.09	4M41 3200 Diesel 121 kW 165 BHP (2000.04 - 2007.09)
Mitsubishi	Pajero	Gen. III | 3.2 DI-D (V68W, V78W)	2000.04-2006.12	4M41 3200 Diesel 121 kW 165 BHP (2000.04 - 2006.12)
Mitsubishi	Pajero	Gen. IV | 3.2 DI-D 4WD	2008.11-	4M41 3200 Diesel 121 kW 165 BHP (2008.11 - )
Mitsubishi	Pajero	Gen. IV | 3.2 DI-D	2007.02-	4M41 3200 Diesel 123 kW 167 BHP (2007.02 - )
Mitsubishi	Pajero	Gen. IV | 3.2 DI-D 4WD (V88W, V98W)	2007.02-	4M41 3200 Diesel 125 kW 170 BHP (2007.02 - )
Mitsubishi	Pajero Classic	3.2 DI-D (V68W, V78W)	2006.09-	4M41 3200 Diesel 125 kW 170 BHP (2006.09 - )
Mitsubishi	Pajero	Gen. IV | 3.2 DI-D 4WD (V98W V88W)	2007.02-	4M41 3200 Diesel 140 kW 190 BHP (2007.02 - )
