Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

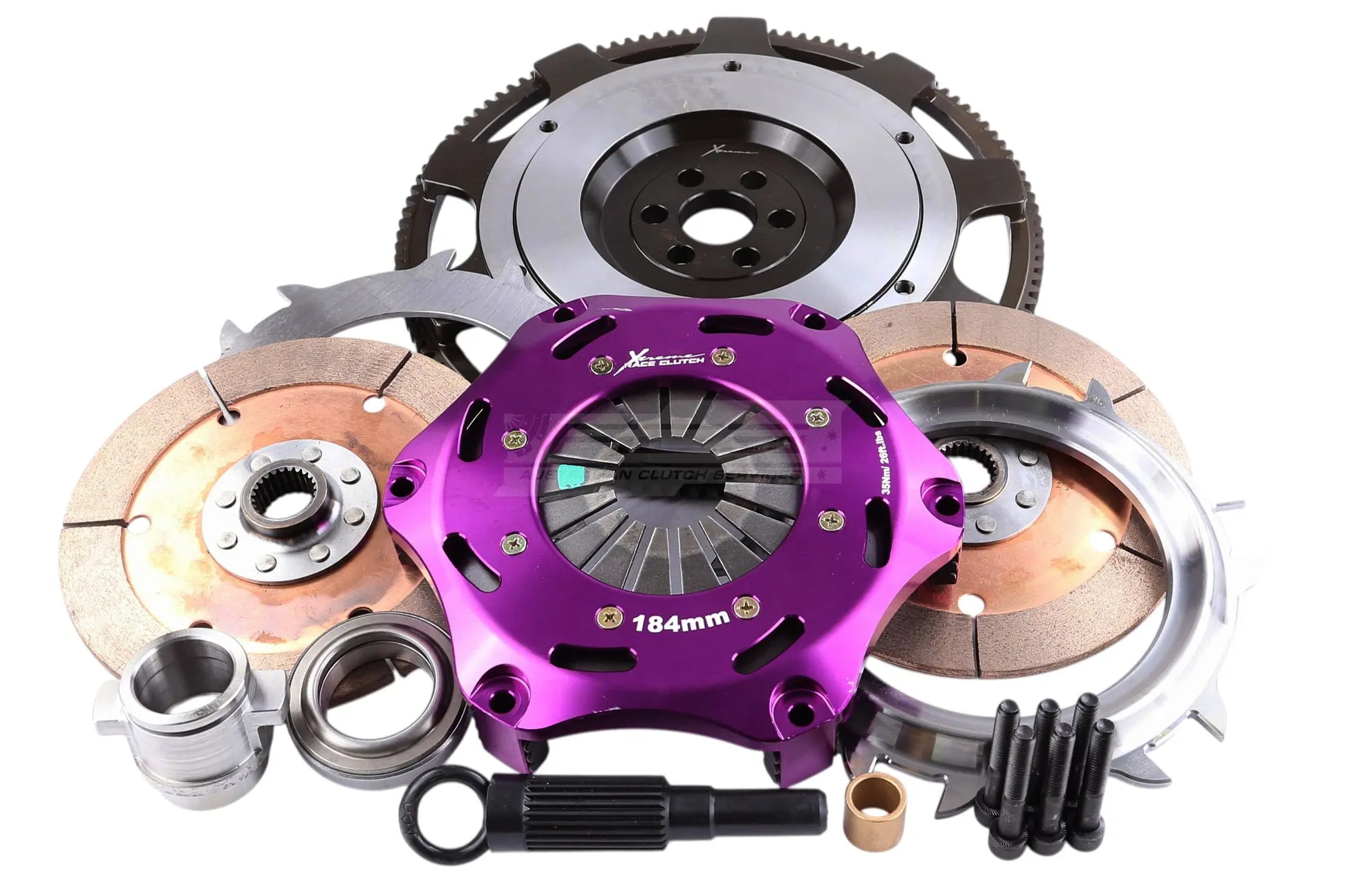

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.4
Torque (Nm) 1060
Flywheel Step
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Nissan Cedric 430 | 2.8 1980.01-1983.02 L28 2753 Petrol 108 kW 147 BHP (1980.01 - 1983.02) 1220 Motorsport Single Mass Flywheel
Nissan Bluebird 910 | 2.0 1981.05-1985.03 L20B 1952 Petrol 72 kW 98 BHP (1981.05 - 1985.03) 1220 Motorsport Single Mass Flywheel
Nissan Datsun 240 C210 | 2.4 1978.03-1981.07 L24 2393 Petrol 96 kW 131 BHP (1978.03 - 1981.07) 1220 Motorsport Single Mass Flywheel
Nissan Navara D21 | 2.0 1985.09-1988.07 Z20 1952 Petrol 64 kW 87 BHP (1985.09 - 1988.07) 1220 Motorsport Single Mass Flywheel
Nissan Navara D21 | 2.4 4WD 1986.03-1992.04 Z24i 2389 Petrol 74 kW 101 BHP (1986.03 - 1992.04) 1220 Motorsport Single Mass Flywheel
Nissan Urvan E24 | 2.0 1987.02-1994.07 Z20S 1952 Petrol 66 kW 90 BHP (1987.02 - 1994.07) 1220 Motorsport Single Mass Flywheel
Nissan Urvan E24 | 2.0 1986.06-1994.09 Z20S 1952 Petrol 65 kW 88 BHP (1986.06 - 1994.09) 1220 Motorsport Single Mass Flywheel
Nissan Patrol K160 | 2.8 1980.07-1988.08 L28 2753 Petrol 88 kW 120 BHP (1980.07 - 1988.08) 1220 Motorsport Single Mass Flywheel
Nissan Patrol K260 | 2.8 1986.05-1990.06 L28 2753 Petrol 88 kW 120 BHP (1986.05 - 1990.06) 1220 Motorsport Single Mass Flywheel
Nissan Skyline R30 |2.4 1982.08-1983.11 L24E 2393 Petrol 94 kW 128 BHP (1982.08 - 1983.11) 1220 Motorsport Single Mass Flywheel
Nissan Skyline R30 |2.4 1981.03-1986.06 L24E 2393 Petrol 103 kW 140 BHP (1981.03 - 1986.06) 1220 Motorsport Single Mass Flywheel
Nissan 280ZX,ZXT S130 | 2.8 1978.10-1983.06 L28E 2753 Petrol 103 kW 140 BHP (1978.10 - 1983.06) 1220 Motorsport Single Mass Flywheel
Nissan 280ZX,ZXT S130 | 2.8 1980.02-1982.09 L28E 2753 Petrol 108 kW 147 BHP (1980.02 - 1982.09) 1220 Motorsport Single Mass Flywheel
Nissan 280ZX,ZXT S130 | 2.8 1982.01-1984.02 L28E 2753 Petrol 110 kW 150 BHP (1982.01 - 1984.02) 1220 Motorsport Single Mass Flywheel
Nissan 240Z S30 | 2.4 1970.10-1974.05 L24 2393 Petrol 110 kW 150 BHP (1970.10 - 1974.05) 1220 Motorsport Single Mass Flywheel
Nissan 260Z S30 | 2.6 2+2 1974.05-1979.12 L26 2565 Petrol 119 kW 162 BHP (1974.05 - 1979.12) 1220 Motorsport Single Mass Flywheel
Nissan Patrol W160 | 2.8 1980.07-1988.08 L28 2753 Petrol 88 kW 120 BHP (1980.07 - 1988.08) 1220 Motorsport Single Mass Flywheel
Visualizza dettagli completi
