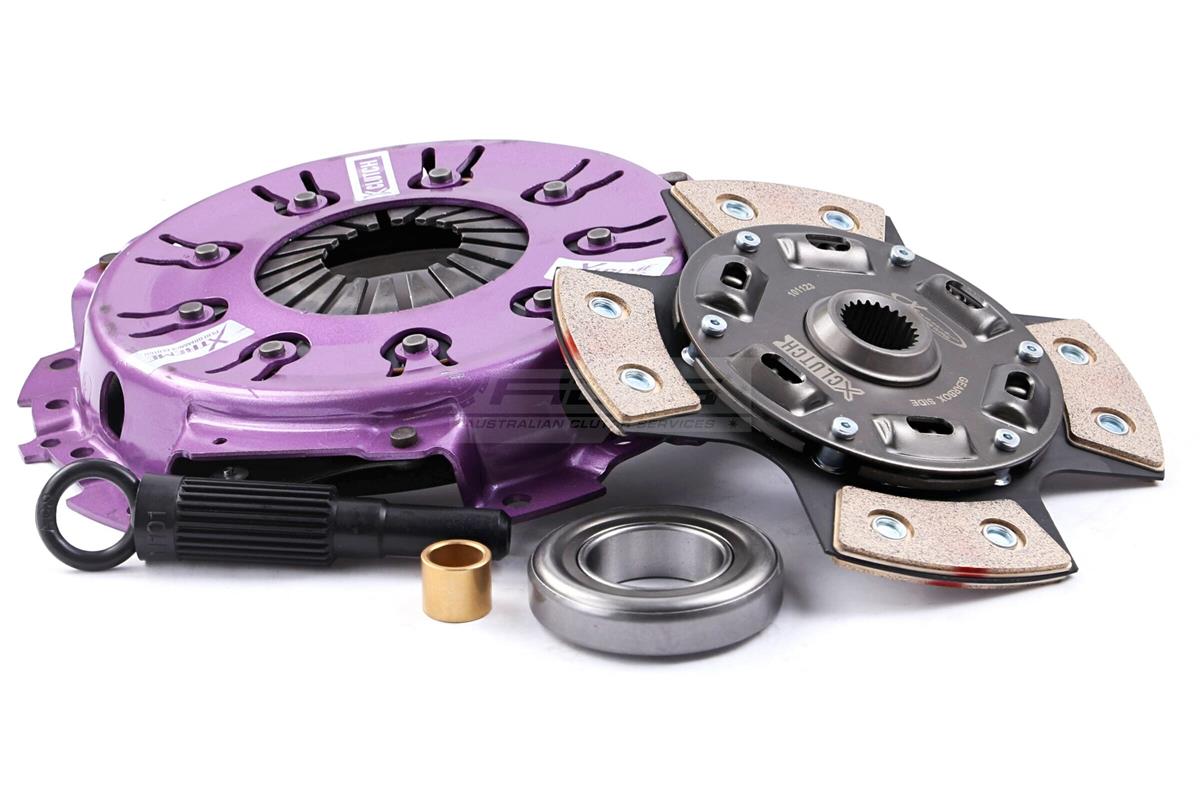

KNI20002-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 350Nm
• Clamp load 540kg 50% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.4
Torque (Nm)	350
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	540Kg (50% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	Bluebird	610 | 1.6	1972.04-1977.04	L16 1595 Petrol 60 kW 82 BHP (1972.04 - 1977.04)	350	Track Use	Not included
Nissan	Bluebird	610 | 1.8	1974.07-1979.11	L18 1770 Petrol 65 kW 88 BHP (1974.07 - 1979.11)	350	Track Use	Not included
Nissan	Datsun 160J	710 | 1.6	1978.01-1982.02	L16 1595 Petrol 65 kW 88 BHP (1978.01 - 1982.02)	350	Track Use	Not included
Nissan	Datsun 160J	710 | 1.6	1973.01-1978.01	L16S 1595 Petrol 53 kW 72 BHP (1973.01 - 1978.01)	350	Track Use	Not included
Nissan	Datsun 160J	710 | 1.6	1973.01-1982.02	L16T 1579 Petrol 61 kW 83 BHP (1973.01 - 1982.02)	350	Track Use	Not included
Nissan	Pickup	720 | 1.6	1980.12-1984.05	J16 1567 Petrol 51 kW 69 BHP (1980.12 - 1984.05)	350	Track Use	Not included
Nissan	Datsun 180B	810 | 1.8	1977.05-1981.01	L18, L18S, L18T 1770 Petrol 65 kW 88 BHP (1977.05 - 1981.01)	350	Track Use	Not included
Nissan	Datsun 180B	810 | 1.8	1977.05-1981.01	L18, L18S, L18T 1770 Petrol 66 kW 90 BHP (1977.05 - 1981.01)	350	Track Use	Not included
Nissan	Bluebird	910 | 1.6	1980.05-1982.05	L16 1595 Petrol 60 kW 82 BHP (1980.05 - 1982.05)	350	Track Use	Not included
Nissan	Bluebird	910 | 2.0	1982.01-1984.05	Z20E 1952 Petrol 80 kW 109 BHP (1982.01 - 1984.05)	350	Track Use	Not included
Nissan	Vanette	C120 | 2.0 D	1986.01-1987.06	LD20 1952 Diesel 43 kW 58 BHP (1986.01 - 1987.06)	350	Track Use	Not included
Nissan	Silvia	S110 | 1.8	1979.01-1983.05	L18E 1770 Petrol 68 kW 92 BHP (1979.01 - 1983.05)	350	Track Use	Not included
