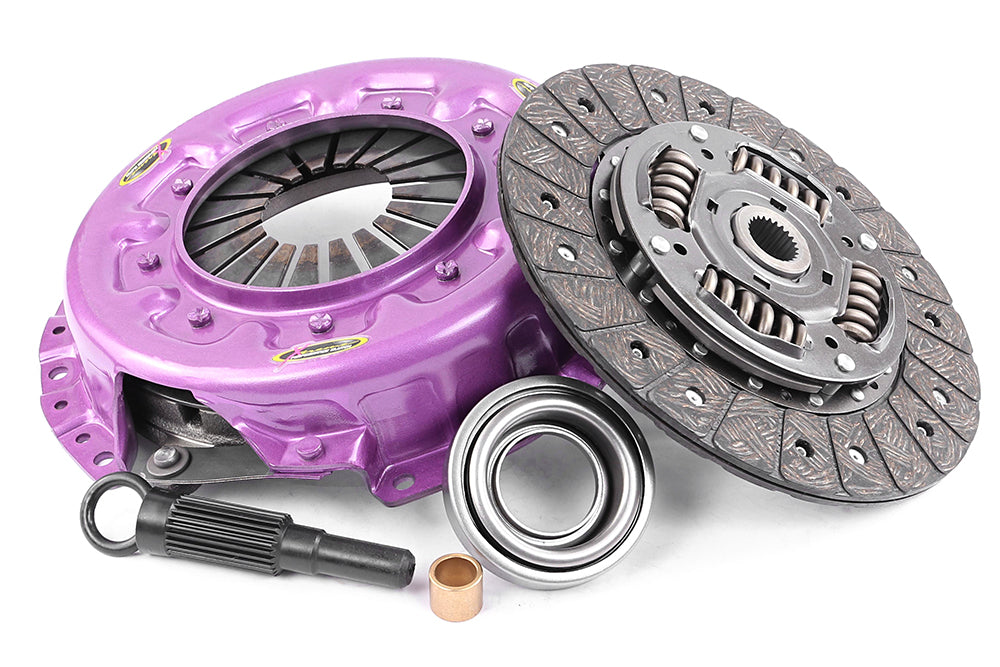

KNI24003-1AX

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	490
Flywheel Step	0
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	1050Kg (75% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	180SX	S13 | 2.0 Turbo	1991.04 - 1994.03	SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03)	490	Street Upgrade	Not included
Nissan	180SX	S13 | 2.0 Turbo	1992.01 - 1997.01	SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01)	490	Street Upgrade	Not included
Nissan	Silvia	S13 | 2.0 Turbo	1991.01 - 1993.09	SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09)	490	Street Upgrade	Not included
Nissan	Silvia	S13 | 2.0 Turbo	1991.01 - 1993.09	SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09)	490	Street Upgrade	Not included
Nissan	200SX	S14 | 2.0 Turbo	1994.04 - 2000.11	SR20DET 1998 Petrol 147 kW 200 BHP (1994.04 - 2000.11)	490	Street Upgrade	Not included
Nissan	200SX	S14 | 2.0 Turbo	1993.10 - 1999.12	SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)	490	Street Upgrade	Not included
Nissan	Silvia	S14 | 2.0 Turbo	1994.04 - 1999.09	SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09)	490	Street Upgrade	Not included
Nissan	Silvia	S14 | 2.0 Turbo	1993.10 - 1999.12	SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)	490	Street Upgrade	Not included
