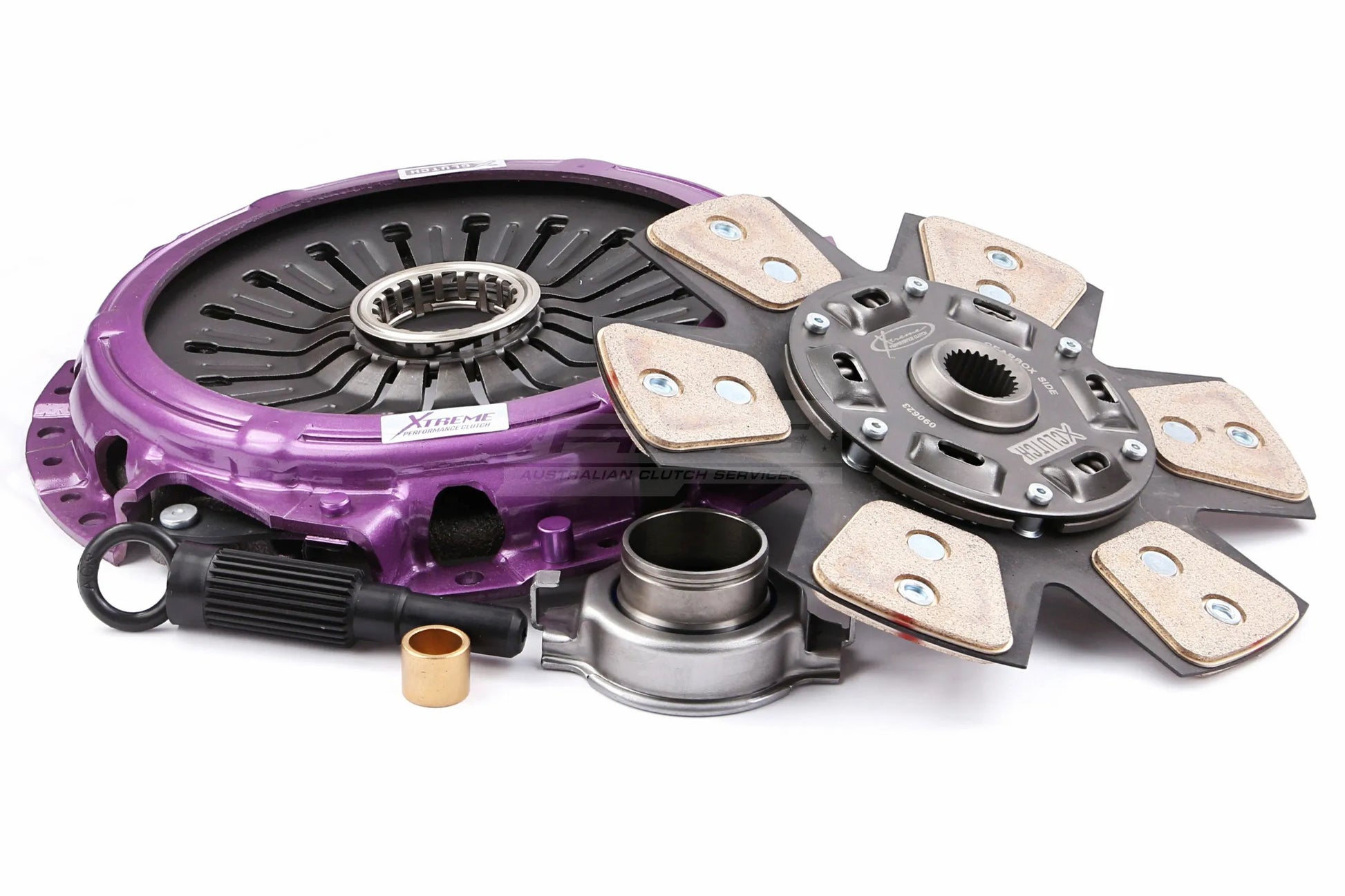

KNI25003-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 1100Nm
• Clamp load 1600Kg 90% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	1100
Flywheel Step	0
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load	1600Kg (90% inc.)
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	Skyline	R34 | 2.5 Turbo	1998.06-2006.01	RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01)	1100	Track Use	Not included
Nissan	Skyline	R34 | 2.5 Turbo	1998.05-2002.08	RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08)	1100	Track Use	Not included
Nissan	Skyline	R34 | 2.5 4x4	1998.06-2000.07	RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)	1100	Track Use	Not included
Nissan	Skyline	R32 | 2.6 Twin Turbo 4x4	1989.04-1993.06	RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)	1100	Track Use	Not included
Nissan	Skyline	R33 | 2.6 Twin Turbo 4x4	1994.07-1999.09	RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09)	1100	Track Use	Not included
Nissan	Skyline	R34 | 2.5 Turbo	1998.05-2006.01	RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01)	1100	Track Use	Not included
Nissan	Stagea	WC34 | 2.5	1996.09-2001.10	RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)	1100	Track Use	Not included
Nissan	Stagea	WC34 | 2.5 AWD	1996.09-2001.10	RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)	1100	Track Use	Not included
Nissan	Stagea	WC34 | 2.5 Turbo AWD	1996.09-2001.10	RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10)	1100	Track Use	Not included
Nissan	Stagea	WC34 | 2.6 Twin Turbo	1996.09-2001.10	RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10)	1100	Track Use	Not included
