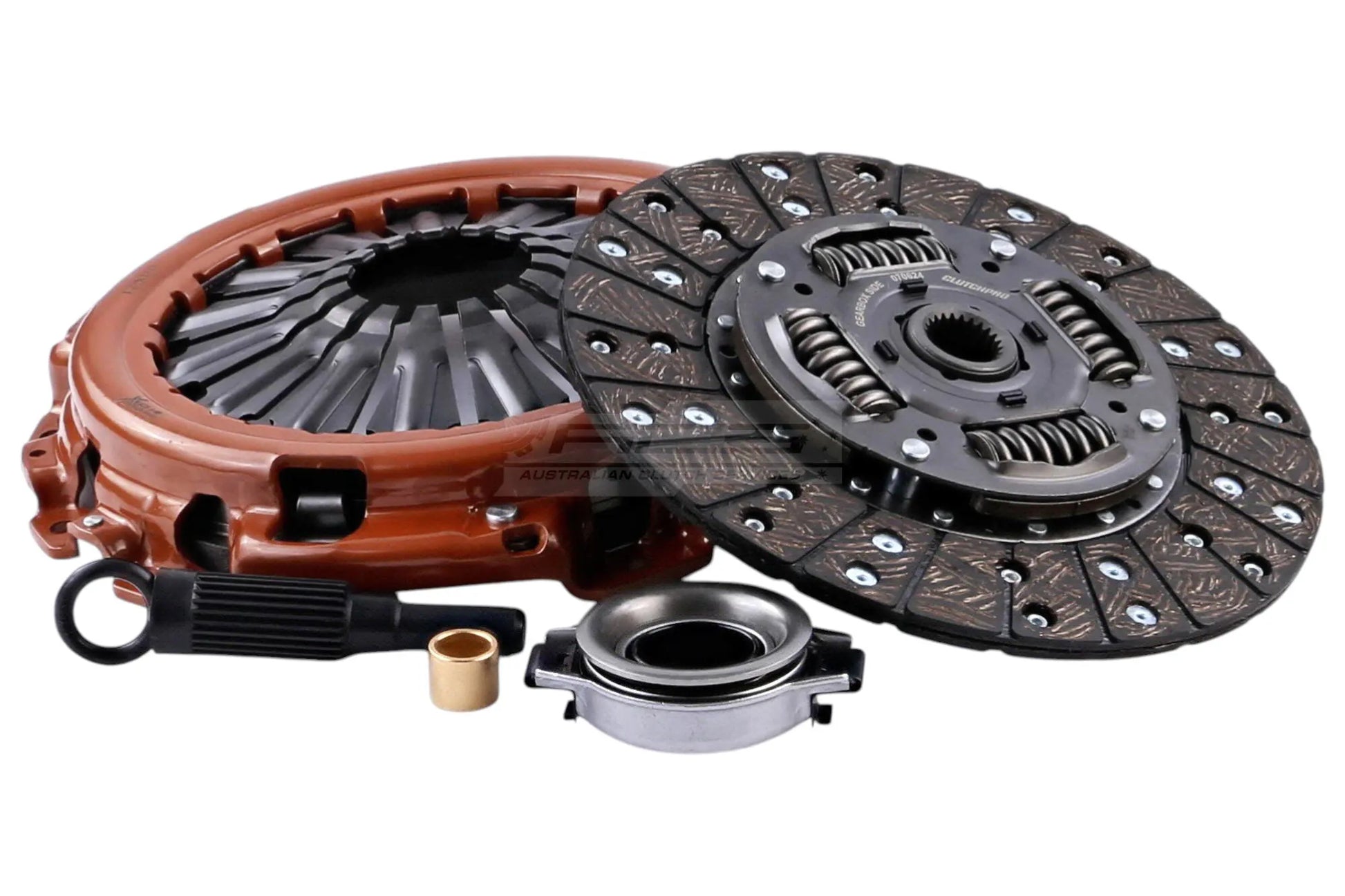

KNI25006-1A

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

• Torque capacity 480Nm

• Clamp load 1050Kg 30% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	480
Clamp Load	1050KG (30% inc.)
Flywheel Step	Flat
Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,4
Recommended for	Street Performance, Heavily Loaded or Tow Vehicles
Design	Single Plate
Diameter [mm]	250
Stage	Stage 1

Compatibility
Nissan	Navara	D22 | 3.0 TD	2001.11-2005.04	ZD30 2953 Diesel 110 kW 150 BHP (2001.11 - 2005.04)
Nissan	Navara	D22 | 3.0 TD 4WD	2001.12-2008.01	ZD30 2953 Diesel 110 kW 150 BHP (2001.12 - 2008.01)
Nissan	Caravan	E25 | 3.0 TDi	2001.07-2012.06	ZD30DDTi 2953 Diesel 89 kW 121 BHP (2001.07 - 2012.06)
Nissan	Elgrand	E50 | 3.0 D 4WD	1999.08-2000.08	ZD30DDTi 2953 Diesel 113 kW 154 BHP (1999.08 - 2000.08)
Nissan	Pathfinder	R50 | 3.0 DDTi 4WD	1999.09-2004.12	ZD30DDTi 2953 Diesel 125 kW 170 BHP (1999.09 - 2004.12)
