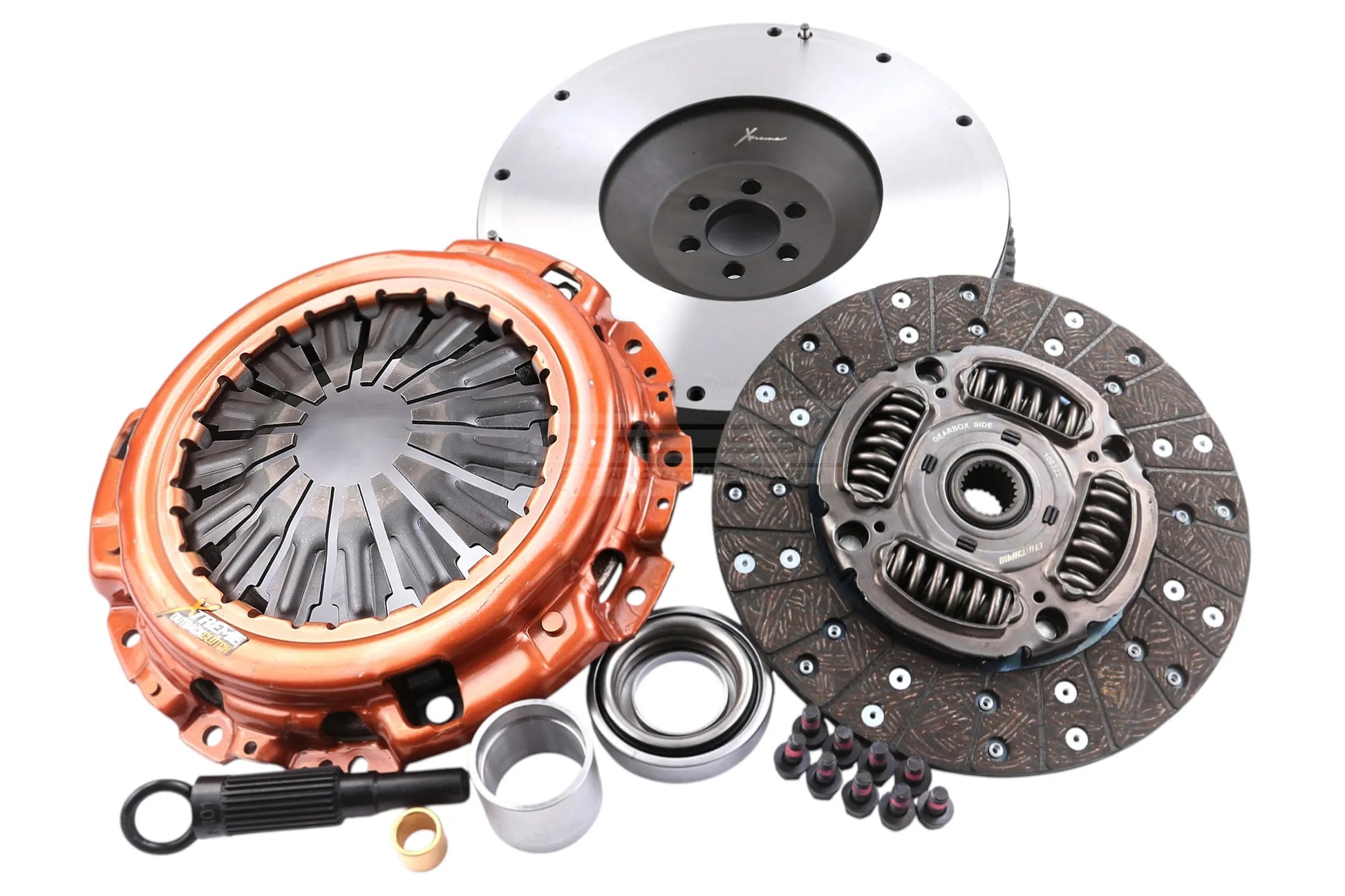

KNI25526-1AX

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.4
Torque (Nm)	480
Flywheel Step
Design	Single Plate
Stage
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation	Conversion from dual-mass flywheel to single-mass flywheel

Compatibility
Nissan	Navara	D23 | 2.5	2015.01-	QR25DE 2488 Petrol 122 kW 166 BHP (2015.01 -)
