ACS

KSU18520-2E

KSU18520-2E

€2.332,78 EUR
€2.332,78 EUR
In offerta Esaurito
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Flywheel Step +2.5mm
Torque (Nm) 1220
Stage 5
Usage Motorsport
Design 184mm Twin Plate Solid Ceramic – for lightweight race applications. Delivers instant engagement, reduced rotational mass, and maximum torque capacity for aggressive track use.
Tech Bulletins

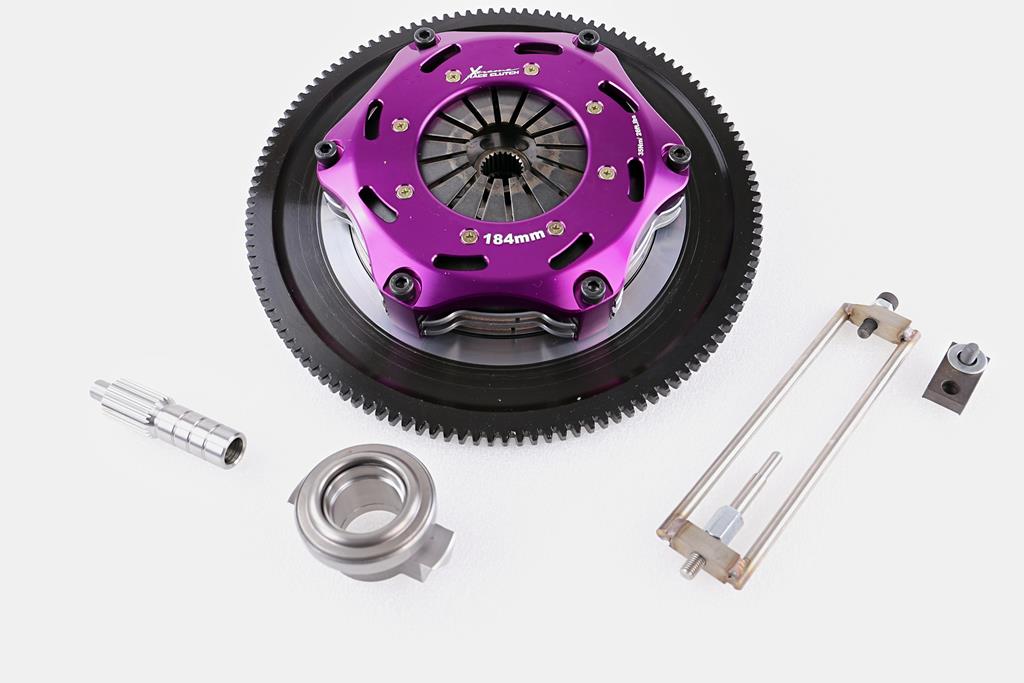

Kit Includes Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Bolts, Alignment Tool, Adjustment Tool
Flywheel Single Mass Flywheel
Additional information Push Type Clutch for 5 Speed Gearbox - Require Conversion from Pull Type
Compatibility
Subaru Forester SF | 2.0 S Turbo AWD (SF5) 1998.06-2001.04 EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) 1220 Motorsport Single Mass Flywheel
Subaru Forester SF | 2.0 S Turbo AWD (SF5) 2001.04-2002.09 EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) 1220 Motorsport Single Mass Flywheel
Subaru Forester SG | 2.0 S Turbo AWD (SG5) 2002.02-2005.05 EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. I | 2000 Turbo Super 4WD (BF5) 1992.05-1994.07 EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. I | 2000 Turbo 4WD (BC5) 1992.05-1994.07 EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 AWD (GDA) 2001.12-2002.11 EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) 1220 Motorsport Single Mass Flywheel
Subaru Forester SG | 2.5 AWD (SG9) 2003.12-2005.05 EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 i Turbo AWD (GF8) 1994.03-2000.12 EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 Turbo AWD (GC8) 1996.12-2000.12 EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 Turbo GT AWD (GC8) 1994.03-2000.12 EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2002.12-2007.03 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2007.03) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2002.12-2005.09 EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX AWD (GGA) 2005.10-2007.03 EJ205 1994 Petrol 184 kW 250 BHP (2005.10 - 2007.03) 1220 Motorsport Single Mass Flywheel
Subaru Forester SG | 2.5 Prodrive Performance Pack AWD 2005.05-2005.09 EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. III | 2.0 AWD (BE5) 2002.02-2003.06 EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX STi AWD (GC8) 1998.09-2000.09 EJ207 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. III | 2.0 AWD (BE5) 2002.06-2003.08 EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) 1220 Motorsport Single Mass Flywheel
