Xtreme Motorsport 200mm twin plate

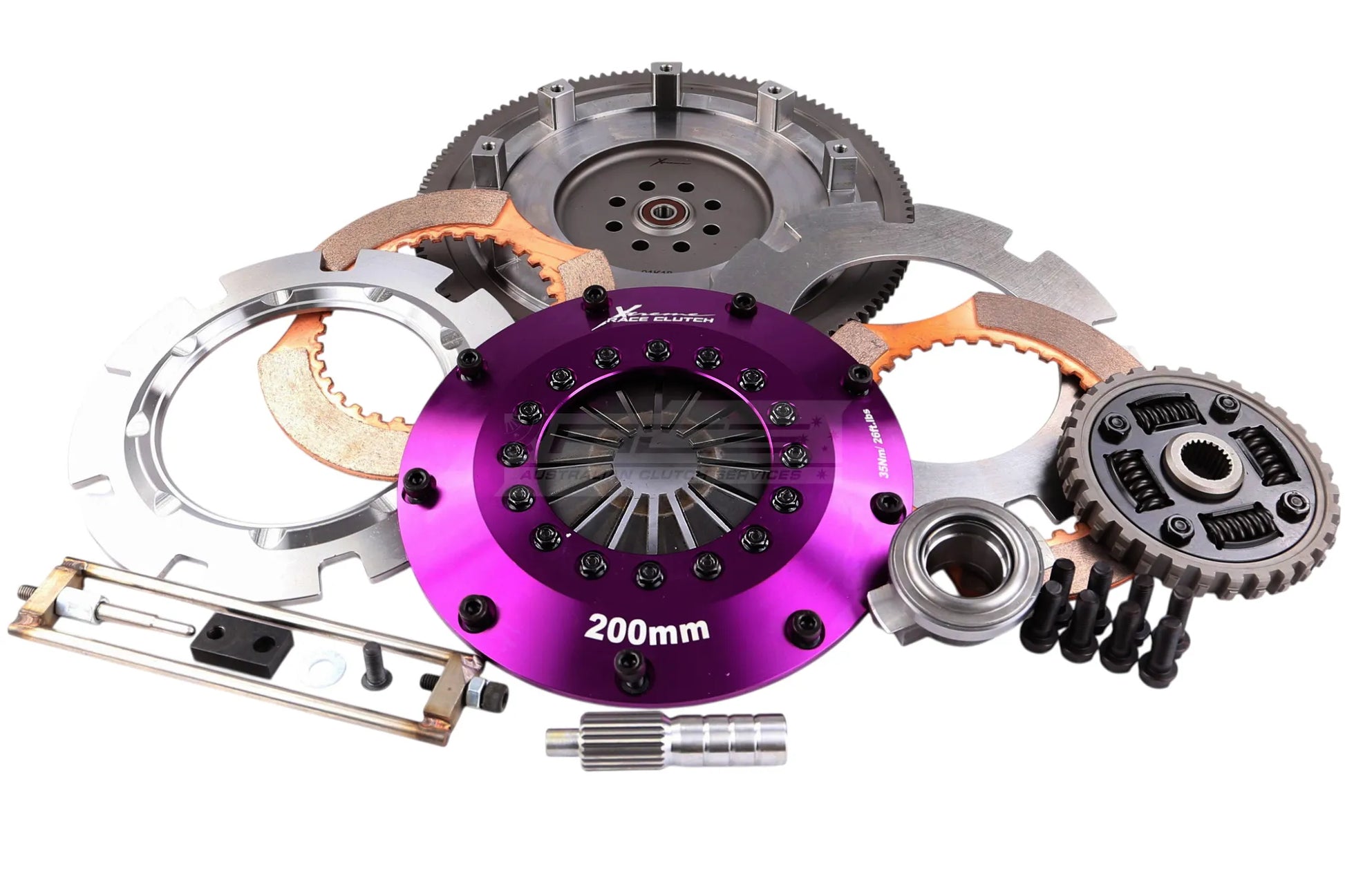

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.2 |
| Flywheel Step | +2.2mm |
| Torque (Nm) | 1200 |
| Clamp Load | 1100Kg |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Sprung Ceramic – engineered for high-performance track use. Combines excellent torque and heat resistance with smoother engagement and improved drivability. |
| Tech Bulletins | TSB-200 TSB-228 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Bolts, Alignment Tool, Adjustment Tool |
| Flywheel | Single Mass Flywheel |
| Additional information | Push Type Clutch for 5 Speed Gearbox - Require Conversion from Pull Type |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| Subaru | Forester | SF | 2.0 S Turbo AWD (SF5) | 1998.06-2001.04 | EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Forester | SF | 2.0 S Turbo AWD (SF5) | 2001.04-2002.09 | EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Forester | SG | 2.0 S Turbo AWD (SG5) | 2002.02-2005.05 | EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Legacy | Gen. I | 2000 Turbo Super 4WD (BF5) | 1992.05-1994.07 | EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Legacy | Gen. I | 2000 Turbo 4WD (BC5) | 1992.05-1994.07 | EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 AWD (GDA) | 2001.12-2002.11 | EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Forester | SG | 2.5 AWD (SG9) | 2003.12-2005.05 | EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 i Turbo AWD (GF8) | 1994.03-2000.12 | EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 Turbo AWD (GC8) | 1996.12-2000.12 | EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | 1994.03-2000.12 | EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 Turbo AWD (GGA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GF8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GGA) | 2002.12-2006.09 | EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2002.12-2007.03 | EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2007.03) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2002.12-2005.09 | EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | 2001.09-2005.12 | EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | 2005.10-2007.03 | EJ205 1994 Petrol 184 kW 250 BHP (2005.10 - 2007.03) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Forester | SG | 2.5 Prodrive Performance Pack AWD | 2005.05-2005.09 | EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Legacy | Gen. III | 2.0 AWD (BE5) | 2002.02-2003.06 | EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | 2001.11-2005.07 | EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GC8) | 1998.09-2000.09 | EJ207 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Legacy | Gen. III | 2.0 AWD (BE5) | 2002.06-2003.08 | EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) | 1200 | Motorsport | Single Mass Flywheel |
| Subaru | Impreza | 2.0 WRX STi AWD | 2004.02-2005.07 | EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) | 1200 | Motorsport | Single Mass Flywheel |
