ACS

KSU23008-1C

KSU23008-1C

€962,12 EUR
€962,12 EUR
In offerta Esaurito

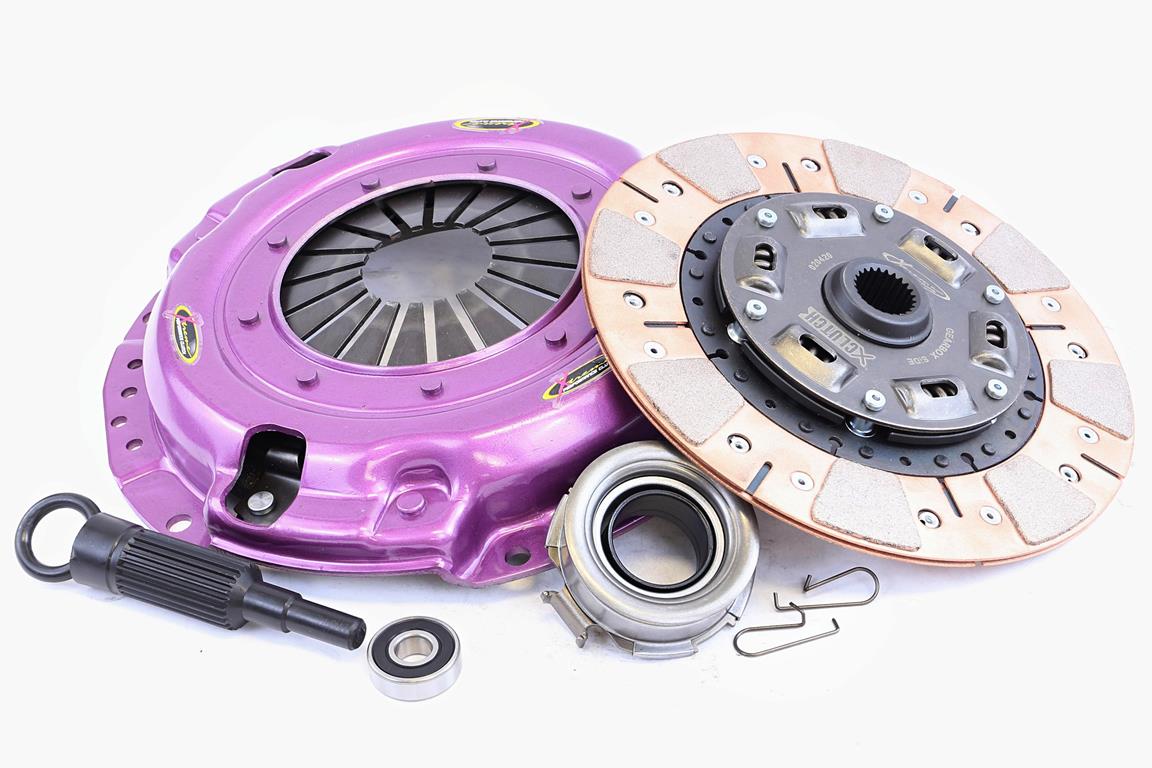

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 500Nm
  • Clamp load 750Kg 40% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 225
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Torque (Nm) 500
Flywheel Step Flat
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 750KG (40% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Subaru Impreza 1.5 AWD (GH3) 2008.02-2012.03 EL15 1498 Petrol 79 kW 107 BHP (2008.02 - 2012.03) 500 Track Use Not included
Subaru Impreza 1.5 F (GH2) 2007.09-2012.03 EL15 1498 Petrol 79 kW 107 BHP (2007.09 - 2012.03) 500 Track Use Not included
Subaru Impreza 1.5 AWD (GE3) 2008.02- EL15 1498 Petrol 79 kW 107 BHP (2008.02 - ) 500 Track Use Not included
Subaru Impreza 1.5 AWD 2008.09-2011.12 EL154 1498 Petrol 85 kW 116 BHP (2008.09 - 2011.12) 500 Track Use Not included
Subaru Forester SF | 2.0 AWD (SF5) 1997.08-2002.09 EJ202 1994 Petrol 90 kW 122 BHP (1997.08 - 2002.09) 500 Track Use Not included
Subaru Forester SF | 2.0 AWD (SF5) 1998.06-2002.09 EJ202 1994 Petrol 92 kW 125 BHP (1998.06 - 2002.09) 500 Track Use Not included
Subaru Impreza 2.0 AWD (GG9) 2000.12-2007.12 EJ201 1994 Petrol 92 kW 125 BHP (2000.12 - 2007.12) 500 Track Use Not included
Subaru Impreza 2.0 i AWD (GD9) 2000.12-2009.06 EJ201 1994 Petrol 92 kW 125 BHP (2000.12 - 2009.06) 500 Track Use Not included
Subaru Impreza 2.0 AWD (GH7) 2007.04-2009.08 EJ204 1994 Petrol 103 kW 140 BHP (2007.04 - 2009.08) 500 Track Use Not included
Subaru Forester SH | 2.0 AWD (SH5) 2008.01-2013.09 EJ204 1994 Petrol 110 kW 150 BHP (2008.01 - 2013.098) 500 Track Use Not included
Subaru Impreza 2.0 R AWD (GH7) 2008.01-2012.03 EJ204 1994 Petrol 110 kW 150 BHP (2008.01 - 2012.03) 500 Track Use Not included
Subaru Impreza 2.0 i AWD (GE7) 2011.01- EJ204 1994 Petrol 110 kW 150 BHP (2011.01 - ) 500 Track Use Not included
Subaru Outback 2.5 (BG9) 1996.01-1999.12 EJ25D 2457 Petrol 110 kW 150 BHP (1996.01 - 1999.12) 500 Track Use Not included
Subaru Legacy Gen. III | 2.5 AWD (BH9) 1998.12-2003.08 EJ25 2457 Petrol 115 kW 156 BHP (1998.12 - 2003.08) 500 Track Use Not included
Subaru Legacy Gen. III | 2.5 AWD (BE9) 1998.10-2003.08 EJ25 2457 Petrol 115 kW 156 BHP (1998.10 - 2003.08) 500 Track Use Not included
Subaru Outback 2.5 (BG9) 1996.09-1998.10 EJ25D 2457 Petrol 115 kW 156 BHP (1996.09 - 1998.10) 500 Track Use Not included
Subaru Outback 2.5 AWD (BH9) 2000.10-2003.08 EJ25 2457 Petrol 115 kW 156 BHP (2000.10 - 2003.08) 500 Track Use Not included
Subaru Impreza 2.0 i R AWD (GD9) 2005.09-2007.03 EJ204 1994 Petrol 118 kW 160 BHP (2005.09 - 2007.03) 500 Track Use Not included
Subaru Impreza 2.0 i R AWD (GG9) 2005.09-2007.06 EJ20, EJ204 1994 Petrol 118 kW 160 BHP (2005.09 - 2007.06) 500 Track Use Not included
