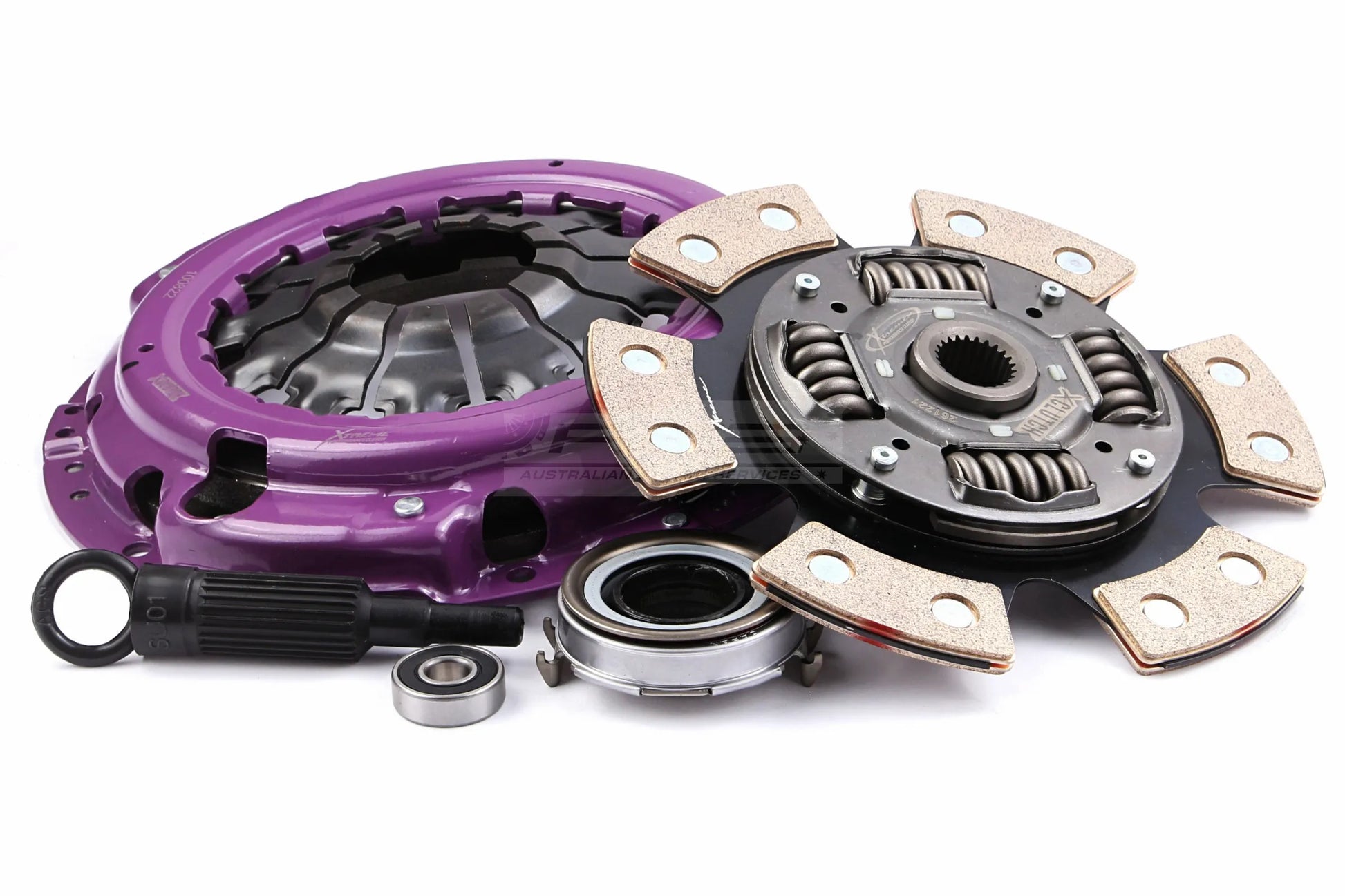

KSU23016-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 850Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	230
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.2
Torque (Nm)	850
Flywheel Step	-2.0mm
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Subaru	Forester	SG | 2.5 AWD (SG9)	2002.06-2005.05	EJ251 2457 Petrol 112 kW 152 BHP (2002.06 - 2005.05)	850	Track Use	Not included
Subaru	Forester	SG | 2.5 RX Nato AWD (SG9)	2002.11-2008.12	EJ25 2457 Petrol 115 kW 156 BHP (2002.11 - 2008.12)	850	Track Use	Not included
Subaru	Forester	SG | 2.5 AWD (SG9)	2005.06-2008.05	EJ25D 2457 Petrol 121 kW 165 BHP (2005.06 - 2008.05)	850	Track Use	Not included
Subaru	Legacy	Gen. V | 2.5 i AWD (BR9)	2009.09-2014.12	EJ253 2457 Petrol 123 kW 167 BHP (2009.09 - 2014.12)	850	Track Use	Not included
Subaru	Legacy	Gen. V | 2.5 i AWD (BM9)	2009.09-2014.12	EJ253 2457 Petrol 123 kW 167 BHP (2009.09 - 2014.12)	850	Track Use	Not included
Subaru	Outback	2.5 i AWD (BR9)	2009.09-	EJ253 2457 Petrol 123 kW 167 BHP (2009.09 - )	850	Track Use	Not included
Subaru	Outback	2.5 i AWD (BP9)	2003.09-2009.09	EJ253 2457 Petrol 123 kW 167 BHP (2003.09 - 2009.09)	850	Track Use	Not included
Subaru	Outback	2.5 i AWD (BR9)	2009.09-2014.12	EJ25 2457 Petrol 125 kW 170 BHP (2009.09 - 2014.12)	850	Track Use	Not included
Subaru	Forester	SH | 2.5 AWD (SH9)	2009.01-2013.09	EJ25 2457 Petrol 126 kW 171 BHP (2009.01 - 2013.09)	850	Track Use	Not included
Subaru	Legacy	Gen. IV | 2.5 i AWD (BP9)	2008.01-2009.12	EJ25 2457 Petrol 127 kW 173 BHP (2008.01 - 2009.12)	850	Track Use	Not included
Subaru	Legacy	Gen. IV | 2.5 i AWD (BL9)	2007.09-2009.12	EJ25 2457 Petrol 127 kW 173 BHP (2007.09 - 2009.12)	850	Track Use	Not included
Subaru	Outback	2.5 i AWD (BP9)	2008.09-2009.09	EJ251, EJ253 2457 Petrol 127 kW 173 BHP (2008.09 - 2009.09)	850	Track Use	Not included
