Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

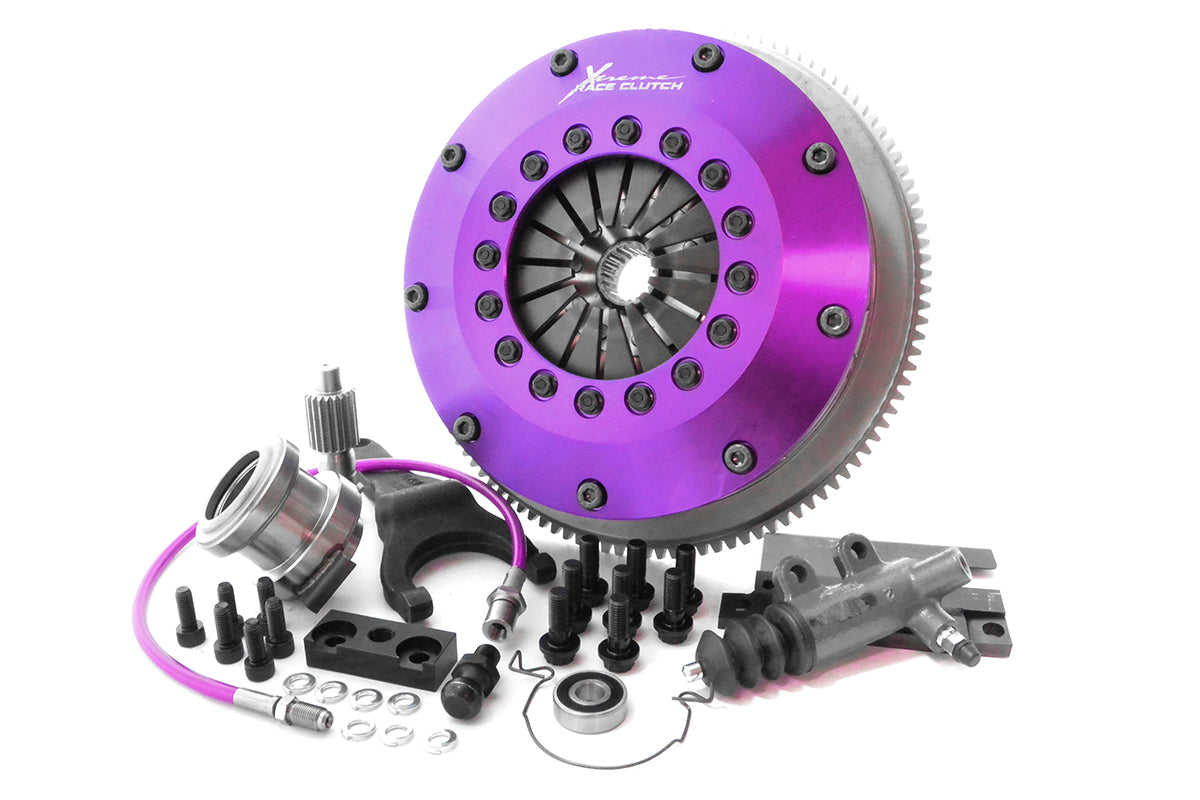

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")
Clutch Disc Diameter (mm) 200
Clutch Disc Spline Count 21
Clutch Disc Spline Diameter (mm) 29.8
Torque (Nm) 1200
Flywheel Step +2.2mm
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins TSB-200-2-XTSB-TY10
Clamp Load 1100Kg
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Toyota Chaser 2.5 (JZX100_) 1996.10-2001.05 1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Chaser 2.5 Turbo (JZX100_) 1996.10-2001.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Chaser 2.5 (JZX90) 1992.10-1996.08 1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Chaser 2.5 Turbo (JZX90) 1992.10-1996.08 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Cresta 2.5 Turbo VVTi (JX100) 1996.10-2001.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Mark II 2.5 Turbo (JZX110) 2002.01-2007.06 1JZ-GTE 2491 Petrol 206 kW 280 BHP (2002.01 - 2007.06) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Mark II 2.5 (JZX110) 2002.01-2004.12 1JZ-FSE 2491 Petrol 147 kW 200 BHP (2002.01 - 2004.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Mark II 2.5 Turbo (JZX90) 1992.10-1996.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Mark II 2.5 Turbo VVTi (JZX100) 1996.10-2001.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Soarer 2.5 Turbo (JZZ30) 1990.09-2000.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Supra 2.5 i Bi-Turbo (JZA70) 1990.08-1993.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Verossa 2.5 Turbo VVTi (JZX110) 2000.10-2003.11 1JZ-GTE 2491 Petrol 206 kW 280 BHP (2000.10 - 2003.11) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Toyota Verossa 2.5 VVTi (JZX110) 2000.10-2003.11 1JZ-FSE 2491 Petrol 147 kW 200 BHP (2000.10 - 2003.11) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
