KTY22006-1B

Recommended for: Motorsport Applications

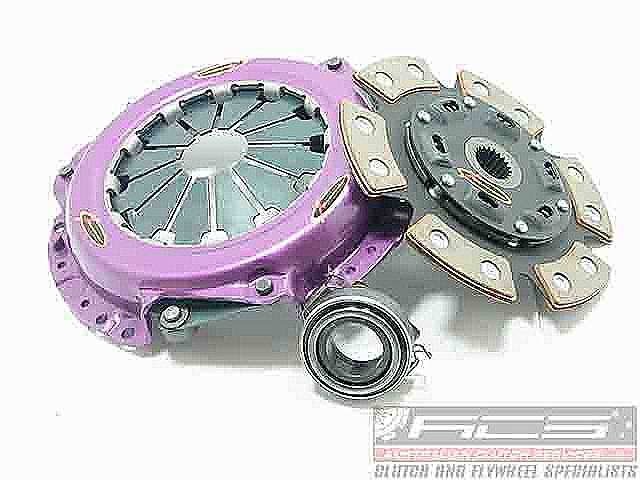

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 390Nm
• Clamp load 620kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	23.8
Torque (Nm)	390
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	620kg (30% inc )
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Toyota	Carina	T15 | 1.6 (AT151_)	1983.10-1987.11	4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11)	390	Track Use	Not included
Toyota	Carina	T17 | 1.5 DX (AT170)	1987.12-1992.03	5A-FE 1498 Petrol 64 kW 87 BHP (1987.12 - 1992.03)	390	Track Use	Not included
Toyota	Carina	T17 | 1.5 (AT170)	1987.12-1992.03	5A-FE 1498 Petrol 63 kW 86 BHP (1987.12 - 1992.03)	390	Track Use	Not included
Toyota	Carina	T17 | 1.6 (AT171)	1990.05-1992.06	4A-FHE 1587 Petrol 81 kW 110 BHP (1990.05 - 1992.06)	390	Track Use	Not included
Toyota	Corolla	E8 | 1.6 (AE82)	1983.06-1987.08	4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08)	390	Track Use	Not included
Toyota	Corolla	E9 | 1.3 (EE90)	1987.08-1992.04	2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04)	390	Track Use	Not included
Toyota	Corolla	E8 | 1.6 (AE82)	1985.08-1987.08	4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 - 1987.08)	390	Track Use	Not included
Toyota	MR2	Gen. I | 1.6 16V (AW11)	1984.11-1989.12	4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12)	390	Track Use	Not included
Toyota	MR2	Gen. I | 1.6 16V (AW11)	1984.11-1990.06	4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06)	390	Track Use	Not included
Toyota	MR2	Gen. I | 1.6 16V (AW11)	1984.06-1989.11	4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11)	390	Track Use	Not included
