KTY23001-1C

Recommended for: Motorsport Applications

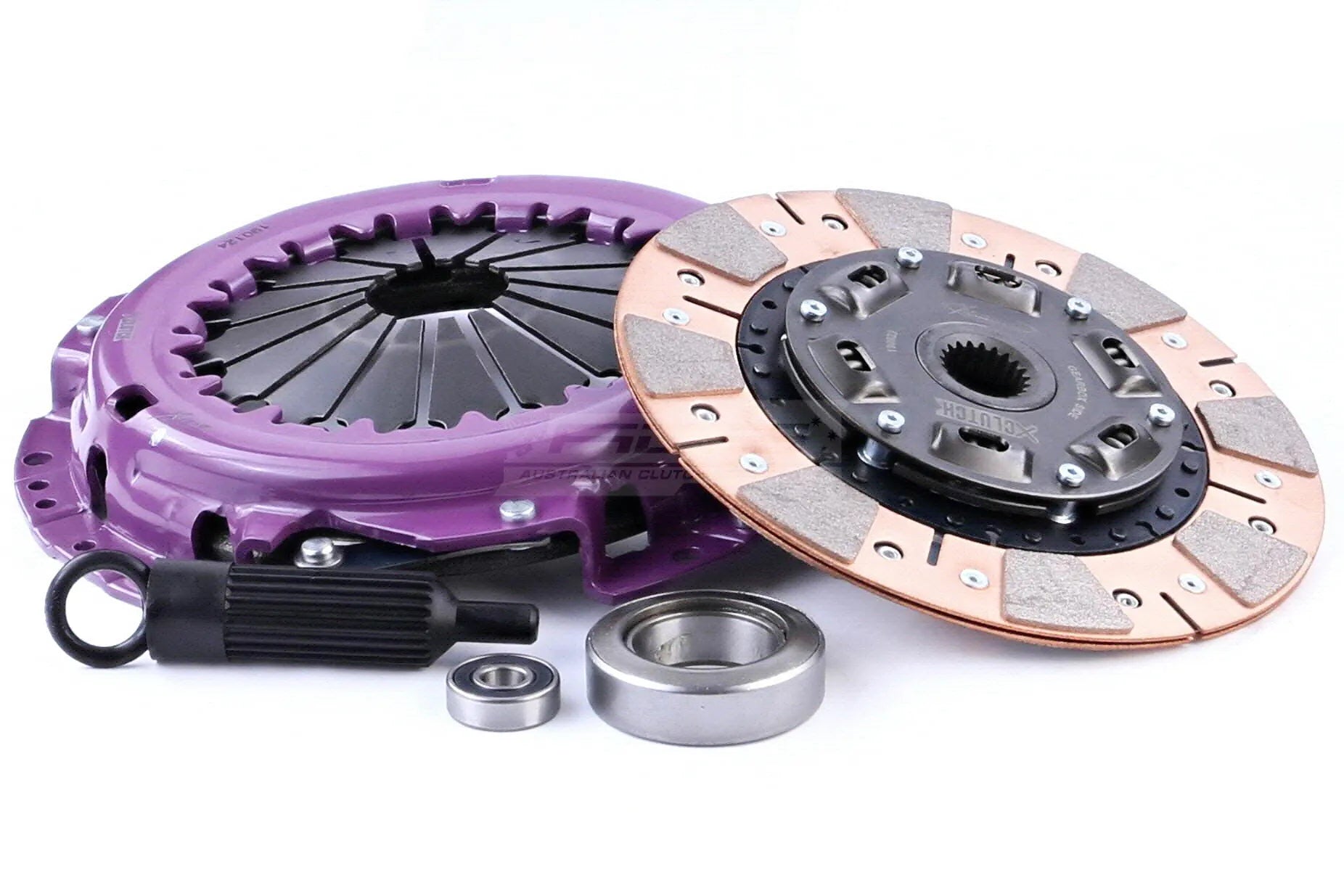

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 430Nm
• Clamp load 700Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	430
Clamp Load	700KG (30% inc.)
Flywheel Step	+0.5mm
Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29,8
Recommended for	Low Speed Trial - Stage 2
Design	Single Plate
Diameter [mm]	225
Stage	Stage 2

Compatibility
Toyota	4 Runner	Gen. I | 2.2 (YN63)	1985.11-1988.12	4Y 2237 Petrol 69 kW 94 BHP (1985.11 - 1988.12)
Toyota	4 Runner	Gen. I | 2.2 (YN63)	1985.10-1989.10	4Y-EC 2237 Petrol 75 kW 102 BHP (1985.10 - 1989.10)
Toyota	4 Runner	Gen. I | 2.4 D (LN60)	1984.07-1988.05	2L 2446 Diesel 55 kW 75 BHP (1984.07 - 1988.05)
Toyota	4 Runner	Gen. I | 2.8 D (LN61)	1988.05-1989.10	3L 2779 Diesel 60 kW 82 BHP (1988.05 - 1989.10)
Toyota	Blizzard	2.2 D (LD10)	1982.03-1984.03	L 2188 Diesel 46 kW 63 BHP (1982.03 - 1984.03)
Toyota	Blizzard	2.2 D (LD10)	1980.03-1984.03	L 2188 Diesel 53 kW 72 BHP (1980.03 - 1984.03)
Toyota	Blizzard	2.4 TD 4WD (LD20)	1984.09-1989.11	2L-T 2446 Diesel 70 kW 95 BHP (1984.09 - 1989.11)
Toyota	Celica	2.0 GT (RA40_, RA40)	1977.08-1981.07	18R-G 1968 Petrol 90 kW 122 BHP (1977.08 - 1981.07)
Toyota	Celica	2.0 LT (RA40)	1977.08-1981.07	18R 1968 Petrol 66 kW 90 BHP (1977.08 - 1981.07)
Toyota	Celica	2.0 XT (RA40)	1980.01-1981.07	18R 1968 Petrol 65 kW 88 BHP (1980.01 - 1981.07)
Toyota	Celica	2.0 (RA63_)	1982.01-1985.12	18R-G 1968 Petrol 88 kW 120 BHP (1982.01 - 1985.12)
Toyota	Celica	2.4 (RA65)	1984.10-1985.12	22REC 2367 Petrol 87 kW 118 BHP (1984.10 - 1985.12)
Toyota	Chaser	2.4 TD (LX70)	1984.08-1988.08	2L-T 2446 Diesel 78 kW 106 BHP (1984.08 - 1988.08)
Toyota	Corona	2.0 (ST141)	1983.08-1987.04	2S-C 1995 Petrol 71 kW 97 BHP (1983.08 - 1987.04)
Toyota	Corona	2.0 (RT133)	1982.02-1983.12	21R-C 1972 Petrol 66 kW 90 BHP (1982.02 - 1983.12)
Toyota	Corona	2.0 (RT118)	1975.09-1979.05	18R 1968 Petrol 65 kW 88 BHP (1975.09 - 1979.05)
Toyota	Corona	2.4 (RT142)	1984.11-1987.04	22RE 2367 Petrol 87 kW 118 BHP (1984.11 - 1987.04)
Toyota	Corona	2.0 (RT104)	1976.01-1979.05	18R 1968 Petrol 65 kW 88 BHP (1976.01 - 1979.05)
Toyota	Corona	2.0 (RT132)	1980.02-1981.12	18R-C 1968 Petrol 65 kW 88 BHP (1980.02 - 1981.12)
Toyota	Cressida	2.0 (RX35)	1977.12-1981.03	18R 1968 Petrol 66 kW 90 BHP (1977.12 - 1981.03)
Toyota	Cressida	2.0 (RX35)	1977.12-1981.03	18R, 18R-C 1968 Petrol 65 kW 88 BHP (1977.12 - 1981.03)
Toyota	Cressida	2.6 (MX36)	1977.03-1981.07	4M 2563 Petrol 112 kW 152 BHP (1977.03 - 1981.07)
Toyota	Cressida	2.0 (RX60_)	1981.02-1985.03	21R 1972 Petrol 77 kW 105 BHP (1981.02 - 1985.03)
Toyota	Cressida	2.0 (RX30)	1977.07-1981.07	18R 1968 Petrol 66 kW 90 BHP (1977.07 - 1981.07)
Toyota	Cressida	2.6 (MX32)	1977.03-1980.07	4M 2563 Petrol 112 kW 152 BHP (1977.03 - 1980.07)
Toyota	Cressida	2.4 TD (LX71)	1985.01-1988.10	2L-T 2446 Diesel 63 kW 86 BHP (1985.01 - 1988.10)
Toyota	Cressida	2.4 TD (LX71)	1985.05-1988.09	2L-T 2446 Diesel 66 kW 90 BHP (1985.05 - 1988.09)
Toyota	Cressida	2.4 TD (LX80)	1988.10-1993.01	2L-TII 2446 Diesel 69 kW 94 BHP (1988.10 - 1993.01)
Toyota	Crown	2.8 SI (MS112)	1980.04-1983.07	5M, 5M-E 2759 Petrol 107 kW 146 BHP (1980.04 - 1983.07)
Toyota	Crown	2.6 (MS85)	1976.04-1979.07	4M 2563 Petrol 112 kW 152 BHP (1976.04 - 1979.07)
Toyota	Crown	2.6 (MS85)	1974.09-1979.08	4M 2563 Petrol 88 kW 120 BHP (1974.09 - 1979.08)
Toyota	Crown	2.8 (MS1K)	1980.09-1983.09	5M, 5M-E 2759 Petrol 107 kW 146 BHP (1980.09 - 1983.09)
Toyota	Dyna 100	1.8 (YH81_)	1985.08-1995.04	2Y 1812 Petrol 58 kW 79 BHP (1985.08 - 1995.04)
Toyota	Dyna 100	1.8 (YH81_)	1987.08-1995.04	2Y 1812 Petrol 61 kW 83 BHP (1987.08 - 1995.04)
Toyota	Dyna 150	2.0 (YY61_)	1985.08-1987.09	3Y 1998 Petrol 65 kW 88 BHP (1985.08 - 1987.09)
Toyota	Dyna 150	2.4 D (LY60_)	1985.08-1987.08	2L 2446 Diesel 54 kW 73 BHP (1985.08 - 1987.08)
Toyota	Dyna	2.4 D (JU20_)	1977.08-1979.02	2J 2481 Diesel 55 kW 75 BHP (1977.08 - 1979.02)
Toyota	Dyna	2.4 D (LH80_)	1987.08-1995.04	2L 2446 Diesel 55 kW 75 BHP (1987.08 - 1995.04)
Toyota	Hiace	Gen. II | 2.0 (RH32)	1977.02-1983.03	18R 1968 Petrol 65 kW 88 BHP (1977.02 - 1983.03)
Toyota	Hiace	Gen. III | 1.8 (YH50. YH60)	1982.12-1989.07	2Y 1812 Petrol 58 kW 79 BHP (1982.12 - 1989.07)
Toyota	Hiace	Gen. III | 2.2 D (LH50. LH60)	1982.12-1989.11	L 2188 Diesel 49 kW 67 BHP (1982.12 - 1989.11)
Toyota	Hiace	Gen. III | 2.4 D (LH51. LH61. LH66)	1984.04-1989.08	2L 2446 Diesel 55 kW 75 BHP (1984.04 - 1989.08)
Toyota	Hiace	Gen. III | 2.4 D 4WD (LH56. LH66)	1987.01-1989.08	2L 2446 Diesel 54 kW 73 BHP (1987.01 - 1989.08)
Toyota	Hiace	Gen. III | 2.4 D (LH61. LH51)	1982.12-1989.11	2L 2446 Diesel 55 kW 75 BHP (1982.12 - 1989.11)
Toyota	Hilux	Gen. III | 2.0 (RN31, RN41)	1979.01-1983.07	18R 1968 Petrol 65 kW 88 BHP (1979.01 - 1983.07)
Toyota	Hilux	Gen. III | 2.0 4WD (RN46, RN36)	1979.01-1983.07	18R 1968 Petrol 65 kW 88 BHP (1979.01 - 1983.07)
Toyota	Hilux	Gen. III | 2.2 D (LN40_)	1979.01-1983.07	L 2188 Diesel 49 kW 67 BHP (1979.01 - 1983.07)
Toyota	Hilux	Gen. IV | 1.8 (YN51. YN56)	1983.08-1989.03	2Y, 2Y-C 1812 Petrol 58 kW 79 BHP (1983.08 - 1989.03)
Toyota	Hilux	Gen. IV | 2.4 D 4WD (LN65)	1983.08-1988.07	2L 2446 Diesel 55 kW 75 BHP (1983.08 - 1988.07)
Toyota	Hilux	Gen. IV | 2.0 (YN57, YN60)	1983.08-1988.07	3Y 1998 Petrol 65 kW 88 BHP (1983.08 - 1988.07)
Toyota	Hilux	Gen. IV | 2.2 (YN58)	1983.08-1989.12	4Y 2237 Petrol 69 kW 94 BHP (1983.08 - 1989.12)
Toyota	Hilux	Gen. IV | 2.2 D (LN50, LN55)	1983.08-1984.08	L 2188 Diesel 49 kW 67 BHP (1983.08 - 1984.08)
Toyota	Hilux	Gen. IV | 2.4 D (LN51_, LN56)	1984.09-1988.07	2L 2446 Diesel 55 kW 75 BHP (1984.09 - 1988.07)
Toyota	Hilux	Gen. IV | 2.4 D (LN51_. LN60_. LN56)	1984.01-1988.07	2L 2446 Diesel 56 kW 76 BHP (1984.01 - 1988.07)
Toyota	Hilux	Gen. IV | 2.4 D 4WD (LN65)	1983.08-1988.07	2L 2446 Diesel 55 kW 75 BHP (1983.08 - 1988.07)
Toyota	Land Cruiser 70	2.4 (RJ70_. RJ73_)	1984.11-1993.05	22R 2367 Petrol 77 kW 105 BHP (1984.11 - 1993.05)
Toyota	Land Cruiser 70	2.4 (RJ70_. RJ73_. RJ70RV)	1984.11-1993.05	22R 2367 Petrol 81 kW 110 BHP (1984.11 - 1993.05)
Toyota	Land Cruiser 70	2.4 Bundera 4x4 (RJ70_. RJ70R)	1984.11-1988.07	22R 2367 Petrol 81 kW 110 BHP (1984.11 - 1988.07)
Toyota	Land Cruiser 70	2.4 D (LJ70_)	1984.11-1985.10	2L 2446 Diesel 53 kW 72 BHP (1984.11 - 1985.10)
Toyota	Liteace	2.0 4WD (YM40. YM41)	1986.03-1988.09	3Y 1998 Petrol 57 kW 78 BHP (1986.03 - 1988.09)
Toyota	Liteace	2.0 (YM41)	1985.10-1988.08	3Y 1998 Petrol 79 kW 107 BHP (1985.10 - 1988.07)
Toyota	Town Ace	2.0 (YR21_)	1985.08-1991.12	3Y-EU 1998 Petrol 70 kW 95 BHP (1985.08 - 1991.12)
Toyota	Toyoace	2.4 D (LY21. LY31)	1982.08-1985.03	2L 2446 Diesel 57 kW 78 BHP (1982.08 - 1985.03)
