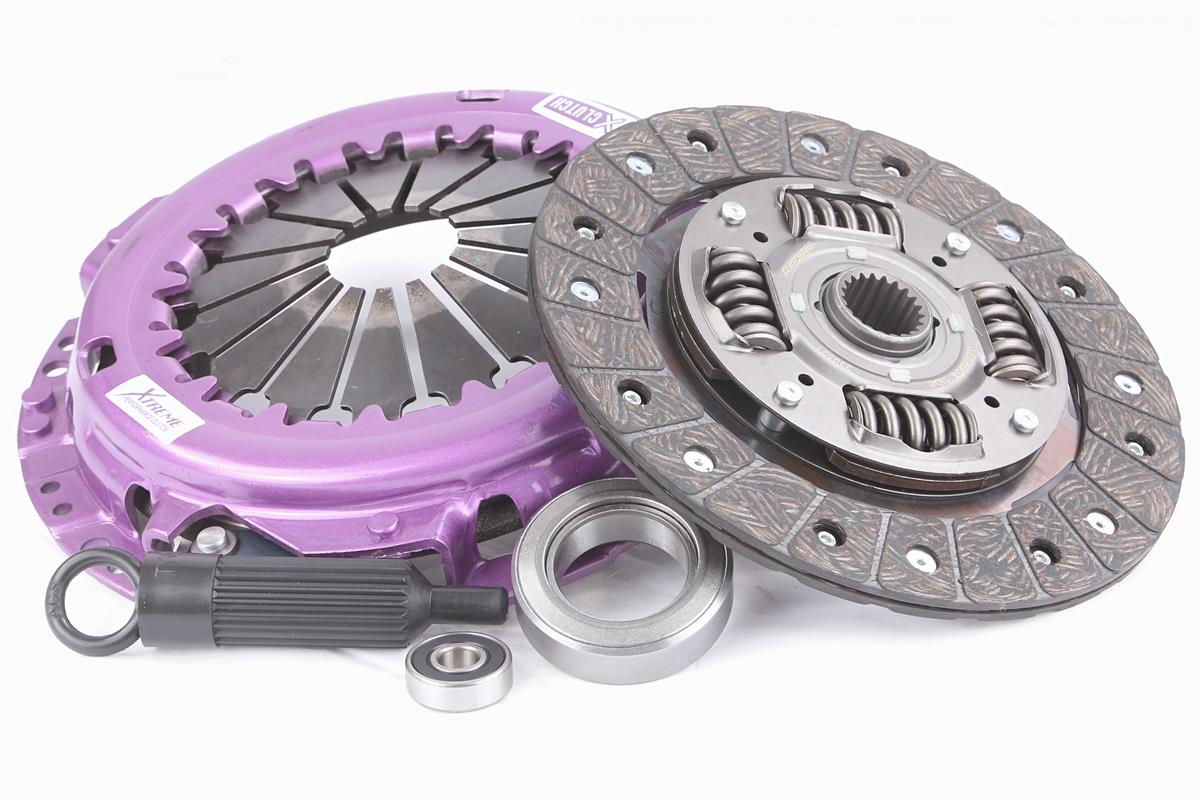

KTY23003-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 290Nm

• Clamp load 700kg 30% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	290
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	700Kg (30% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Toyota	Soarer	2.0 (GZ20)	1986.09-1991.03	1G-EU 1988 Petrol 77 kW 105 BHP (1986.09 - 1991.03)	Suits vehicles manufactured until 08/1988.	290	Street Upgrade	Not included
Toyota	Soarer	2.0 (GZ20)	1986.09-1991.03	1G-GEU 1988 Petrol 103 kW 140 BHP (1986.09 - 1991.03)	Suits vehicles manufactured until 08/1988.	290	Street Upgrade	Not included
