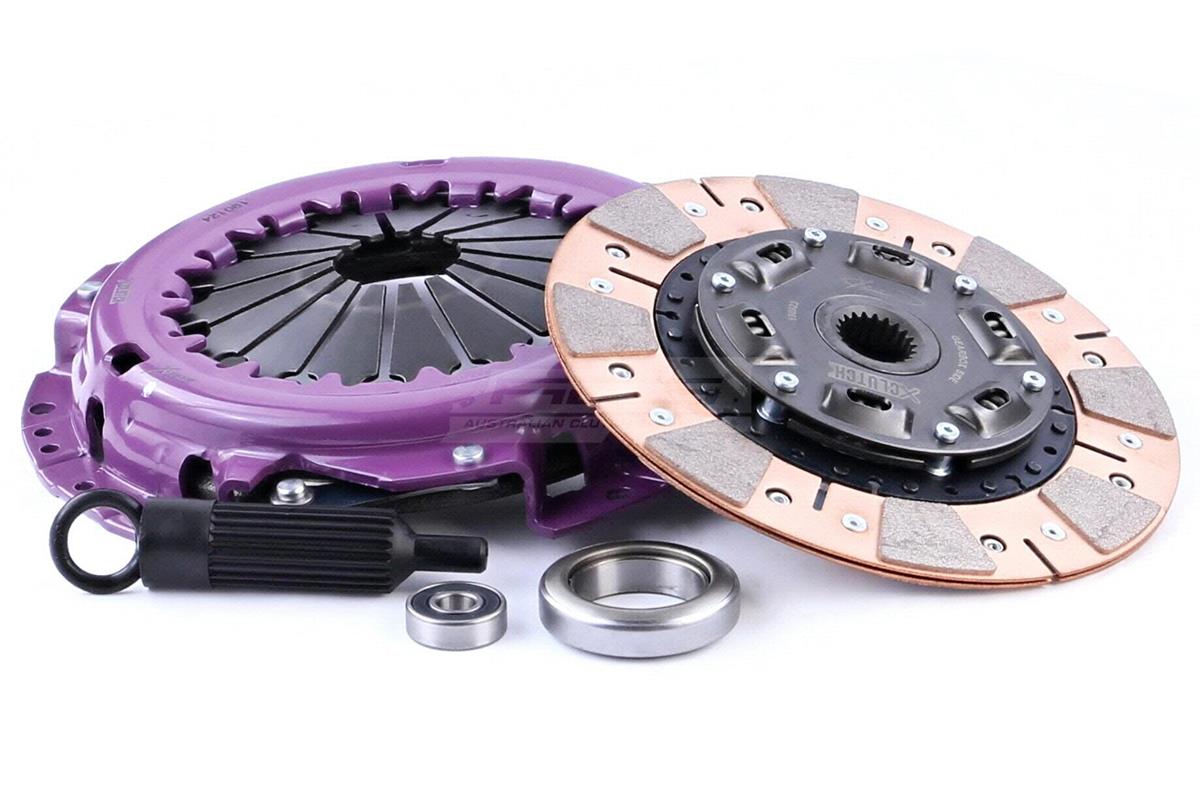

KTY23004-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 430Nm
• Clamp load 700Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	430
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	700Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Toyota	Celica	2.0 (RA23_, RA28_)	1975.10-1977.07	18R 1968 Petrol 63 kW 86 BHP (1975.10 - 1977.07)	430	Track Use	Not included
Toyota	Celica	2.0 (RA28. RA23)	1973.01-1977.11	18R 1968 Petrol 72 kW 98 BHP (1973.01 - 1977.11)	430	Track Use	Not included
Toyota	Corona	2.0 (RT118)	1975.09-1979.05	18R 1968 Petrol 65 kW 88 BHP (1975.09 - 1979.05)	430	Track Use	Not included
Toyota	Corona	2.0 (RT104)	1976.01-1979.05	18R 1968 Petrol 65 kW 88 BHP (1976.01 - 1979.05)	430	Track Use	Not included
Toyota	Corona	2.0 Mark II (RX22)	1975.12-1977.10	18R 1968 Petrol 65 kW 88 BHP (1975.12 - 1977.10)	430	Track Use	Not included
Toyota	Cressida	2.6 (MX32)	1977.03-1980.07	4M 2563 Petrol 112 kW 152 BHP (1977.03 - 1980.07)	430	Track Use	Not included
Toyota	Cressida	2.6 (MX36)	1977.03-1981.07	4M 2563 Petrol 112 kW 152 BHP (1977.03 - 1981.07)	430	Track Use	Not included
Toyota	Crown	2.6 (MS63)	1971.02-1974.08	4M 2563 Petrol 88 kW 120 BHP (1971.02 - 1974.08)	430	Track Use	Not included
Toyota	Crown	2.6 (MS65)	1971.02-1972.12	4M 2563 Petrol 88 kW 120 BHP (1971.02 - 1972.12)	430	Track Use	Not included
Toyota	Crown	2.6 (MS85)	1974.09-1979.08	4M 2563 Petrol 88 kW 120 BHP (1974.09 - 1979.08)	430	Track Use	Not included
Toyota	Hiace	Gen. II | 2.0 (RH32)	1977.02-1983.03	18R 1968 Petrol 65 kW 88 BHP (1977.02 - 1983.03)	430	Track Use	Not included
Toyota	Hilux	Gen. III | 2.0 (RN31, RN41)	1979.01-1983.07	18R 1968 Petrol 65 kW 88 BHP (1979.01 - 1983.07)	430	Track Use	Not included
Toyota	Hilux	Gen. III | 2.0 4WD (RN46, RN36)	1979.01-1983.07	18R 1968 Petrol 65 kW 88 BHP (1979.01 - 1983.07)	430	Track Use	Not included
Toyota	Hilux	Gen. III | 2.2 D (LN40_)	1979.01-1983.07	L 2188 Diesel 49 kW 67 BHP (1979.01 - 1983.07)	430	Track Use	Not included
Toyota	Stout	2.0 (RK110)	1979.03-1986.08	5R 1994 Petrol 70 kW 95 BHP (1979.03 - 1986.08)	430	Track Use	Not included
