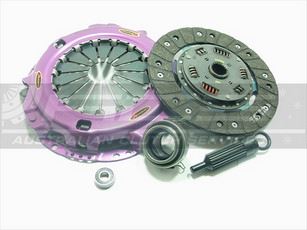

KTY24003-1A

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

• Torque capacity increased

• Clamp load 700Kg 40% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clamp Load	700Kg (40% inc.)
Flywheel Step	+.5mm/.020"
Clutch Disc Diameter (mm)	235
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Recommended for	Street Performance, Heavily Loaded or Tow Vehicles
Design	Single Plate
Stage	Stage 1

Compatibility
Toyota	Dyna	2.0 (YU60_)	1984.09-1987.08	3Y 1998 Petrol 79 kW 107 BHP (1984.09 - 1987.08)
Toyota	Previa	2.4 (TCR10. TCR11)	1990.05-1996.07	2TZ-FE 2438 Petrol 102 kW 139 BHP (1990.05 - 1996.07)
Toyota	Estima	2.4 (TCR10G. TCR11G. TCR10W)	1990.05-1999.12	2TZ-FE 2438 Petrol 99 kW 135 BHP (1990.05 - 1999.12)
Toyota	Previa	2.4 (TCR11_. TCR10_)	1990.05-2000.08	2TZ-FE 2438 Petrol 97 kW 132 BHP (1990.05 - 2000.08)
Toyota	Previa	2.4 4WD (TCR20. TCR21)	1990.05-1996.07	2TZ-FE 2438 Petrol 102 kW 139 BHP (1990.05 - 1996.07)
Toyota	Previa	2.4 4WD (TCR21_. TCR20_)	1990.01-2000.08	2TZ-FE 2438 Petrol 97 kW 132 BHP (1990.01 - 2000.08)
Toyota	Previa	2.4 4WD (TCR21G. TCR20G)	1992.01-1999.12	2TZ-FE 2438 Petrol 99 kW 135 BHP (1992.01 - 1999.12)
Toyota	4 Runner	Gen. II | 2.2 (YN130)	1989.10-1990.10	4Y-EC 2237 Petrol 74 kW 101 BHP (1989.10 - 1990.10)
Toyota	Hiace	Gen. IV | 2.0 (RZH102. RZH112)	1996.11-2000.10	1RZ-E 1998 Petrol 81 kW 110 BHP (1996.11 - 2000.10)
Toyota	Hiace	Gen. IV | 2.4 (RZH10)	1995.08-2004.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1995.08 - 2004.08)
Toyota	Hiace	Gen. IV | 2.4 (RZH103)	1995.08-2004.12	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 2004.12)
Toyota	Hiace	Gen. IV | 2.4 (RZH103. RZH113)	1989.08-1998.07	2RZ 2438 Petrol 85 kW 116 BHP (1989.08 - 1998.07)
Toyota	Hiace	Gen. IV | 2.4 (RZH103. RZH113)	1989.08-2003.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 2003.08)
Toyota	Hiace	Gen. IV | 2.4 (RZH103_)	1989.08-1996.10	2RZ 2438 Petrol 72 kW 98 BHP (1989.08 - 1996.10)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH103_. RCH113_)	1989.08-1995.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 1995.08)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH18)	1995.08-1998.04	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 1998.04)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH18. RCH28)	1995.08-1998.04	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 1998.04)
Toyota	Hiace	Gen. IV | 2.4 4WD (RZH103_. RZH109_. RZH113_. RZH115_)	1989.08-1995.07	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 1995.07)
Toyota	Hiace	Gen. IV | 2.4 i (RZH103. RZH113)	1998.08-2004.08	2RZ-E 2438 Petrol 85 kW 116 BHP (1998.08 - 2004.08)
