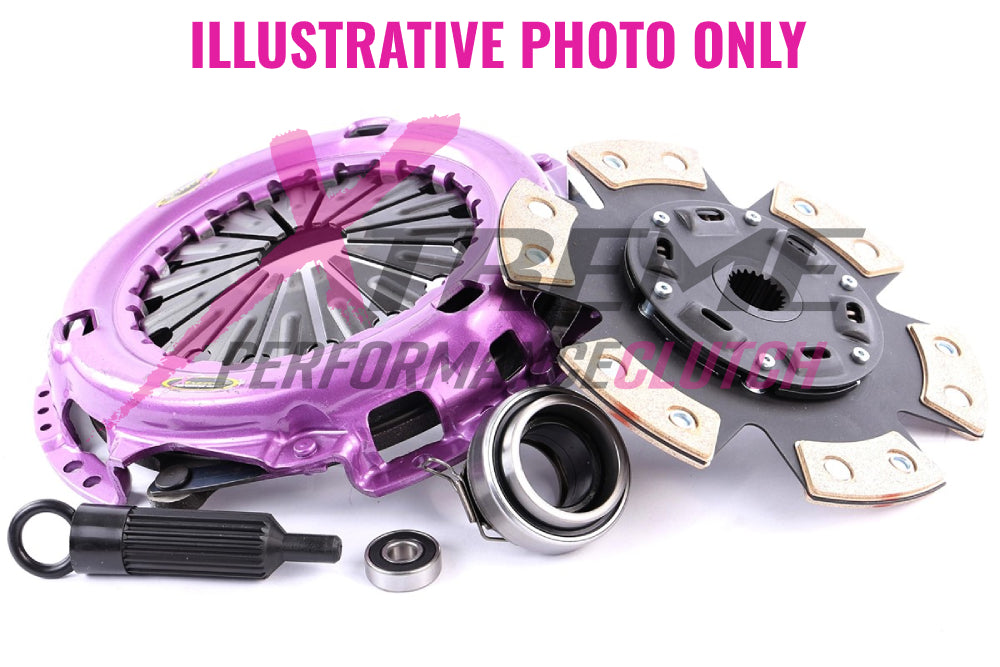

KTY24003-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 430Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	235
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	430
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Toyota	Dyna	2.0 (YU60_)	1984.09-1987.08	3Y 1998 Petrol 79 kW 107 BHP (1984.09 - 1987.08)
Toyota	Previa	2.4 (TCR10. TCR11)	1990.05-1996.07	2TZ-FE 2438 Petrol 102 kW 139 BHP (1990.05 - 1996.07)
Toyota	Estima	2.4 (TCR10G. TCR11G. TCR10W)	1990.05-1999.12	2TZ-FE 2438 Petrol 99 kW 135 BHP (1990.05 - 1999.12)
Toyota	Previa	2.4 (TCR11_. TCR10_)	1990.05-2000.08	2TZ-FE 2438 Petrol 97 kW 132 BHP (1990.05 - 2000.08)
Toyota	Previa	2.4 4WD (TCR20. TCR21)	1990.05-1996.07	2TZ-FE 2438 Petrol 102 kW 139 BHP (1990.05 - 1996.07)
Toyota	Previa	2.4 4WD (TCR21_. TCR20_)	1990.01-2000.08	2TZ-FE 2438 Petrol 97 kW 132 BHP (1990.01 - 2000.08)
Toyota	Previa	2.4 4WD (TCR21G. TCR20G)	1992.01-1999.12	2TZ-FE 2438 Petrol 99 kW 135 BHP (1992.01 - 1999.12)
Toyota	4 Runner	Gen. II | 2.2 (YN130)	1989.10-1990.10	4Y-EC 2237 Petrol 74 kW 101 BHP (1989.10 - 1990.10)
Toyota	Hiace	Gen. IV | 2.0 (RZH102. RZH112)	1996.11-2000.10	1RZ-E 1998 Petrol 81 kW 110 BHP (1996.11 - 2000.10)
Toyota	Hiace	Gen. IV | 2.4 (RZH10)	1995.08-2004.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1995.08 - 2004.08)
Toyota	Hiace	Gen. IV | 2.4 (RZH103)	1995.08-2004.12	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 2004.12)
Toyota	Hiace	Gen. IV | 2.4 (RZH103. RZH113)	1989.08-1998.07	2RZ 2438 Petrol 85 kW 116 BHP (1989.08 - 1998.07)
Toyota	Hiace	Gen. IV | 2.4 (RZH103. RZH113)	1989.08-2003.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 2003.08)
Toyota	Hiace	Gen. IV | 2.4 (RZH103_)	1989.08-1996.10	2RZ 2438 Petrol 72 kW 98 BHP (1989.08 - 1996.10)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH103_. RCH113_)	1989.08-1995.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 1995.08)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH18)	1995.08-1998.04	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 1998.04)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH18. RCH28)	1995.08-1998.04	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 1998.04)
Toyota	Hiace	Gen. IV | 2.4 4WD (RZH103_. RZH109_. RZH113_. RZH115_)	1989.08-1995.07	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 1995.07)
Toyota	Hiace	Gen. IV | 2.4 i (RZH103. RZH113)	1998.08-2004.08	2RZ-E 2438 Petrol 85 kW 116 BHP (1998.08 - 2004.08)
