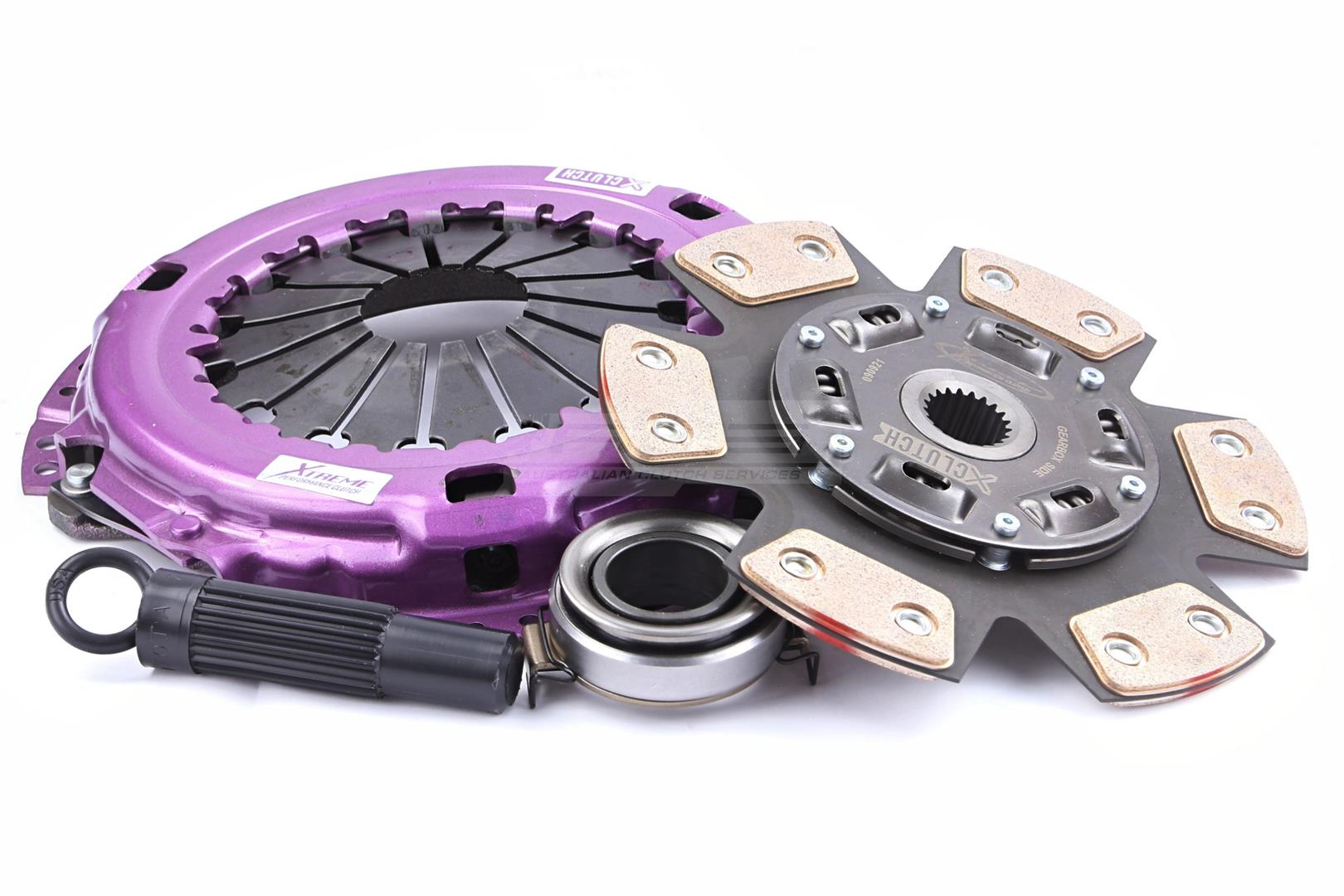

KTY24006-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 760Nm
• Clamp load 1050Kg 45% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	232
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	760
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load	1050Kg (45% inc.)
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Toyota	Caldina	T21 | 2.0 Turbo 4WD (ST215W_)	2000.02-2001.09	3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09)	760	Track Use	Not included
Toyota	Caldina	T21 | 2.0 4WD (ST215W_)	1997.10-2001.09	3S-GE 1998 Petrol 140 kW 190 BHP (1997.10 - 2001.09)	760	Track Use	Not included
Toyota	Camry	3.0 (VCV10)	1995.06-1996.09	3VZ-FE 2959 Petrol 140 kW 190 BHP (1995.06 - 1996.09)	760	Track Use	Not included
Toyota	Camry	3.0 (VCV10R)	1991.06-1996.08	3VZ-FE 2959 Petrol 138 kW 188 BHP (1991.06 - 1996.08)	760	Track Use	Not included
Toyota	Camry	3.0 (MCV30_, MCV36_)	2002.09-2006.11	1MZ-FE 2995 Petrol 141 kW 192 BHP (2002.09 - 2006.11)	760	Track Use	Not included
Toyota	Carina	T20 | 2.0 (ST202, ST205)	1993.01-1998.12	3S-GE 1998 Petrol 125 kW 170 BHP (1993.01 - 1998.12)	760	Track Use	Not included
Toyota	Carina	T20 | 2.0 (ST205)	1993.01-1998.12	3S-GE 1998 Petrol 132 kW 180 BHP (1993.01 - 1998.12)	760	Track Use	Not included
Toyota	Celica	2.0 (ST182, ST183)	1989.10-1993.09	3S-GE 1998 Petrol 123 kW 167 BHP (1989.10 - 1993.09)	760	Track Use	Not included
Toyota	Celica	2.0 (ST182, ST183)	1989.09-1994.01	3S-GE 1998 Petrol 115 kW 156 BHP (1989.09 - 1994.01)	760	Track Use	Not included
Toyota	Celica	2.0 (ST182_)	1989.09-1993.10	3S-GE 1998 Petrol 118 kW 160 BHP (1990.09 - 1993.10)	760	Track Use	Not included
Toyota	Celica	2.0 Turbo 4WD (ST185)	1989.10-1993.11	3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11)	760	Track Use	Not included
Toyota	Celica	2.0 Turbo 4WD (ST185)	1989.10-1994.01	3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01)	760	Track Use	Not included
Toyota	Celica	2.0 Turbo 4WD (ST185)	1989.10-1993.09	3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09)	760	Track Use	Not included
Toyota	Celica	2.0 Turbo 4WD (ST205)	1994.02-1999.11	3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11)	760	Track Use	Not included
Toyota	Celica	GT-FOUR 2.0 4WD (ST205)	1994.02-1999.08	3S-GTE 1998 Petrol 188 kW 256 BHP (1994.02 - 1999.08)	760	Track Use	Not included
Toyota	Celica	2.0 GTi (ST182)	1989.10-1993.11	3S-GE 1998 Petrol 115 kW 156 BHP (1989.10 - 1993.11)	760	Track Use	Not included
Toyota	Celica	2.0 GTi (ST183)	1990.10-1993.10	3S-GE 1998 Petrol 118 kW 160 BHP (1990.10 - 1993.10)	760	Track Use	Not included
Toyota	MR2	Gen. II | 2.0 Turbo (SW20_)	1989.12-1999.07	3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07)	760	Track Use	Not included
Toyota	MR2	Gen. II | 2.0 Turbo (SW20_)	1989.12-1999.07	3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07)	760	Track Use	Not included
Toyota	MR2	Gen. II | 2.0 Turbo (SW20_)	1989.12-1999.07	3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07)	760	Track Use	Not included
