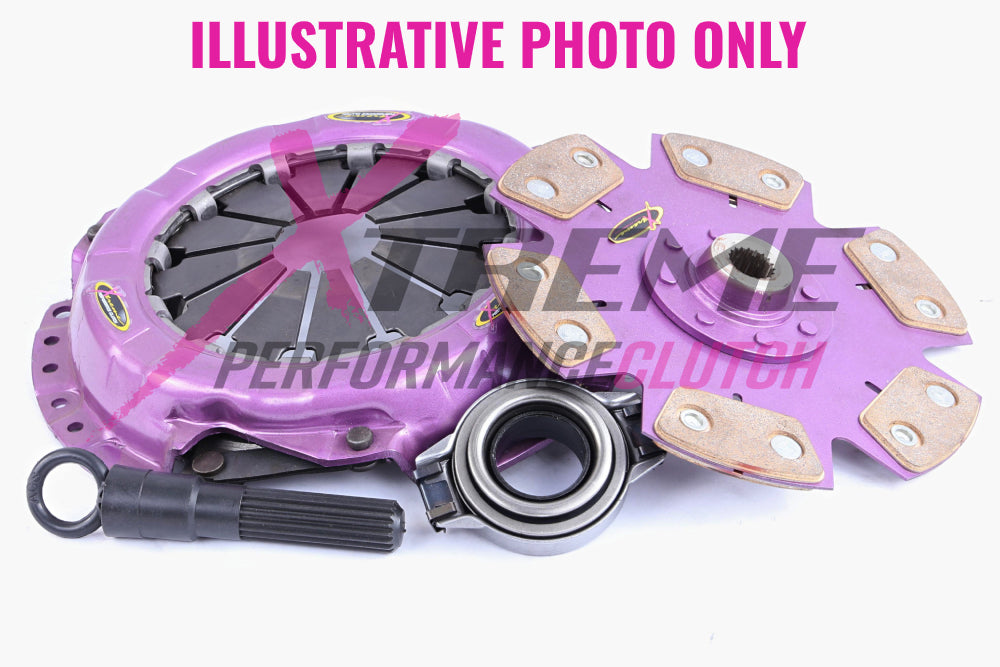

KTY25002-1E

Clutch Kit - Xtreme Performance Rigid Ceramic Single Plate

Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	32.0
Flywheel Step	Flat
Torque (Nm)	930
Clamp Force	1300Kg
Clamp Force Increase	30%
Stage	Stage 2
Usage	Track Use
Design	Single Plate Rigid Ceramic Disc – intended for race or competition vehicles. Offers uncompromised torque and thermal capability with very direct clutch response, sacrificing comfort for performance.
Tech Bulletins	TSB-174  TSB-TY09
Kit Includes	Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel	Not included
Note	This kit only suits converted flywheel from KTY25502-1*

Compatibility
Toyota	Supra	3.0 i Bi-Turbo (JZA80_)	1993.05-2002.07	2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07)	Suitable Only for Conversion Kit KTY25502-1*	930	Track Use	Conversion to Single Mass Flywheel
Toyota	Supra	3.0 i Bi-Turbo (JZA80_)	1994.03-2002.07	2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07)	Suitable Only for Conversion Kit KTY25502-1*	930	Track Use	Conversion to Single Mass Flywheel
Toyota	Supra	3.0 i Bi-Turbo (JZA80_)	1993.05-2002.07	2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07)	Suitable Only for Conversion Kit KTY25502-1*	930	Track Use	Conversion to Single Mass Flywheel
