KTY29590-1DX

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

• Torque capacity 1530Nm (recommended 1230Nm)

• Clamp load 1600Kg
• Organic Friction Discs
• Heavy Duty Pressure Plate

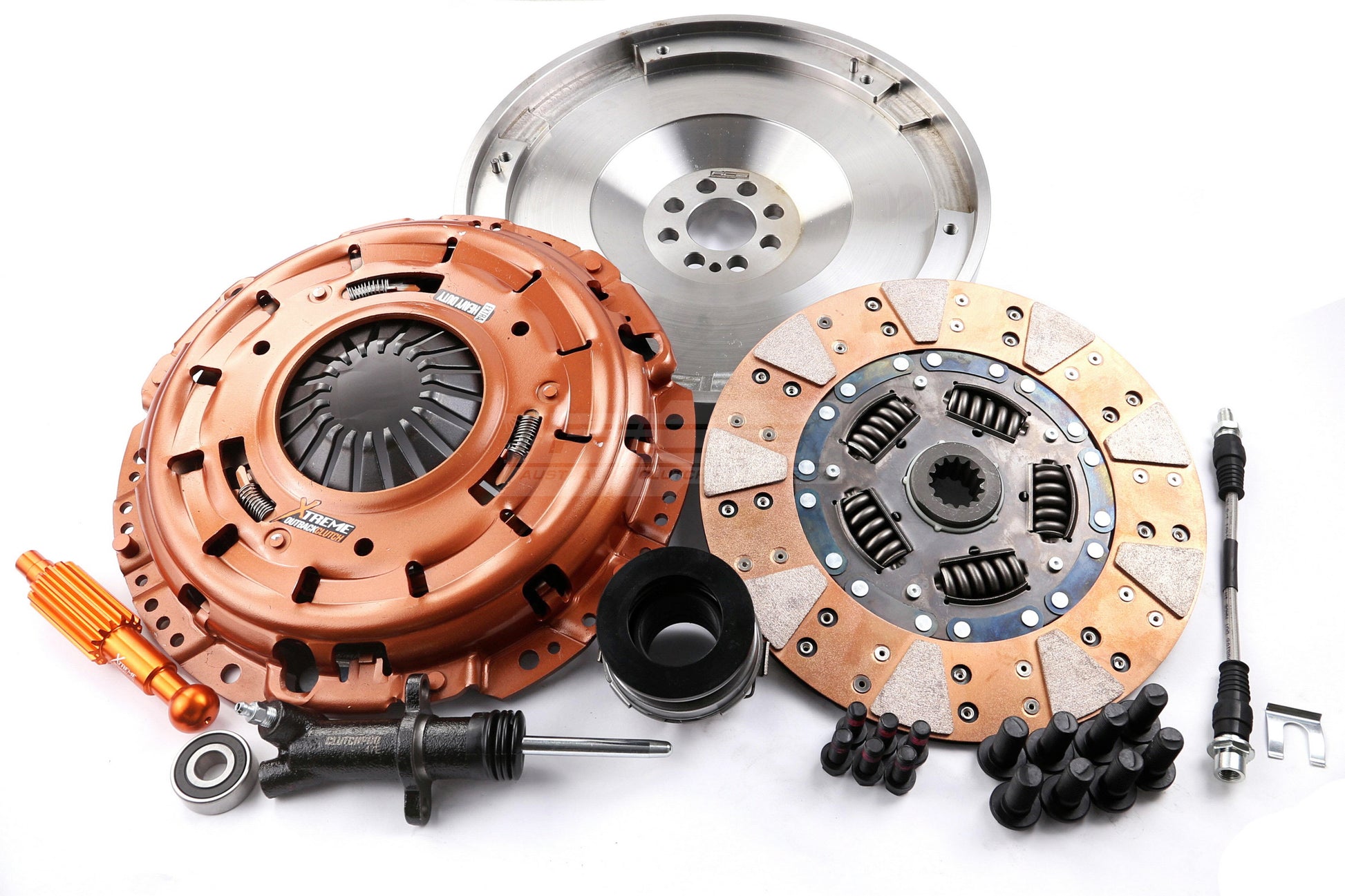

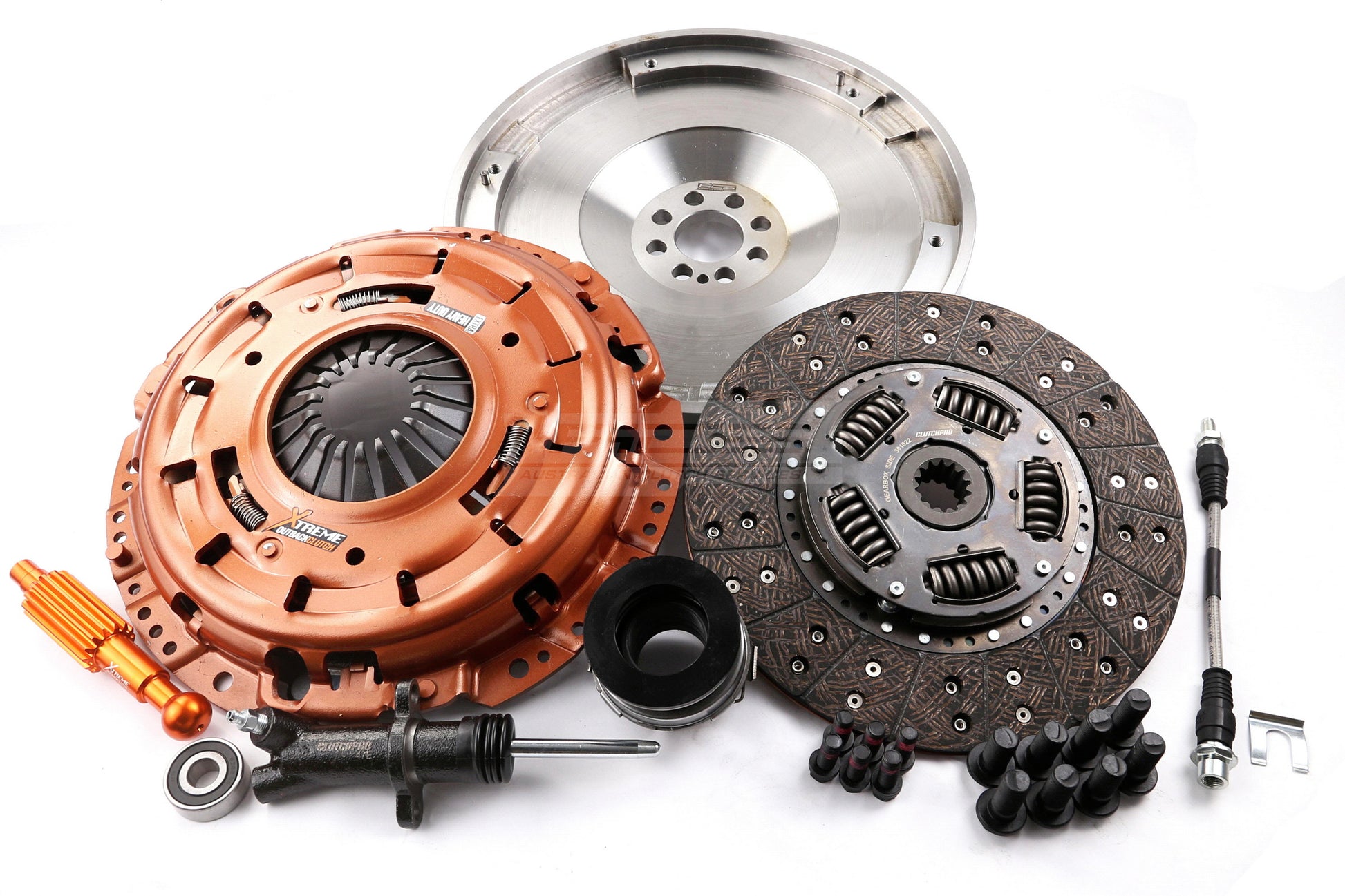

• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	1225
Clamp Load	1600KG
Flywheel Step	-11.6mm
Clutch Disc Diameter (mm)	290
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	32
Recommended for	Street Performance, Heavily Loaded or Tow Vehicles
Design	Single Plate Dual friction
Stage	Stage 2X

Compatibility
Toyota	Land Cruiser 70	4.5 TD 24V 4x4 (VDJ76. VDJ78. VDJ76R. VDJ78R)	2007.01-	1VD-FTV 4461 Diesel 151 kW 205 BHP (2007.01 - )
Toyota	Land Cruiser 70	4.5 TD 24V 4x4 (VDJ79. VDJ79R)	2007.01-	1VD-FTV 4461 Diesel 151 kW 205 BHP (2007.01 - )
