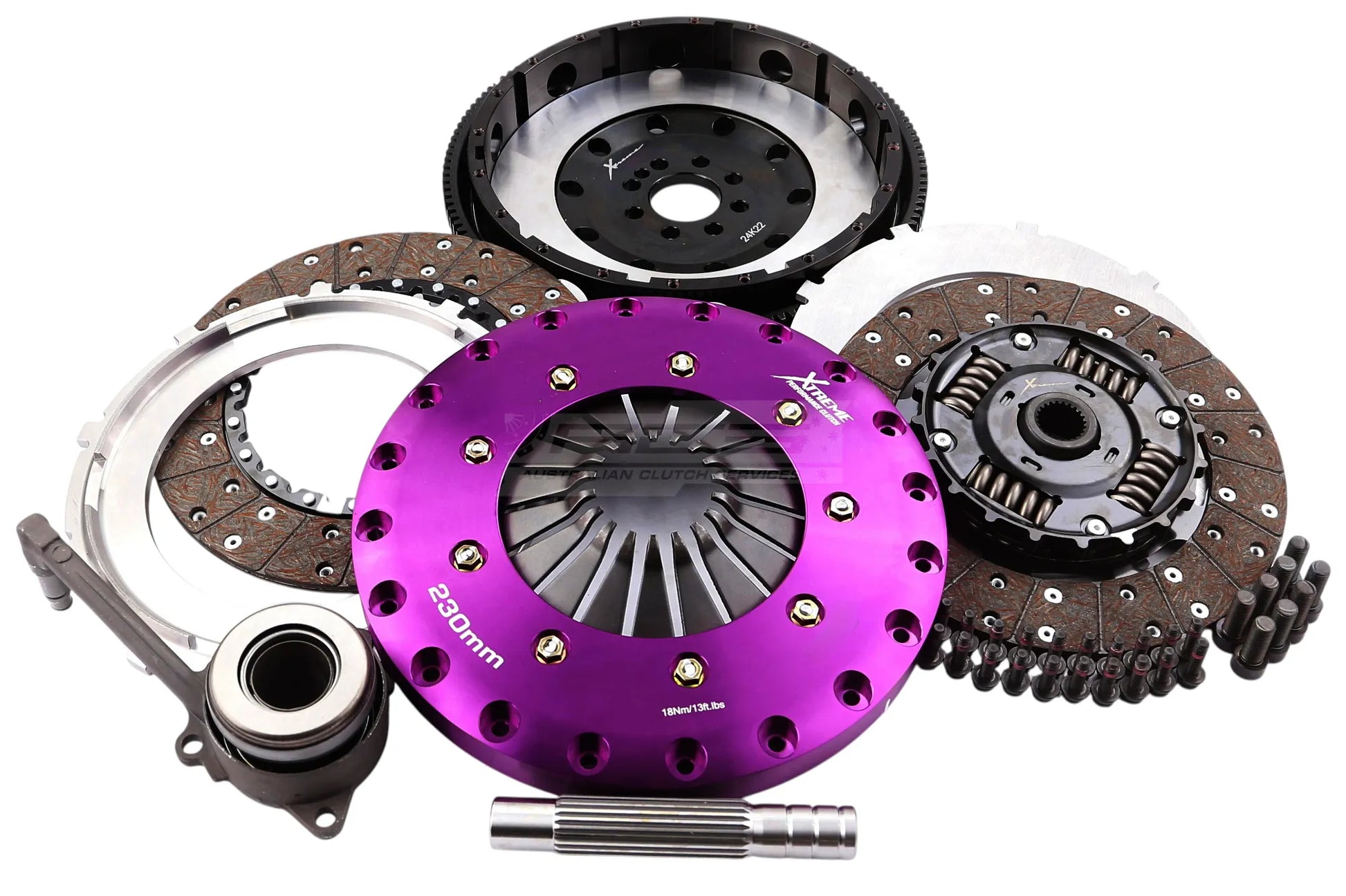

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application. The Xtreme 230mm Twin Plate Sprung Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles. Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Clutch Disc Diameter (mm) | 230 |
| Clutch Disc Spline Count | 23 |
| Clutch Disc Spline Diameter (mm) | 24.7 |
| Torque (Nm) | 1000 |
| Flywheel Step | +3.8mm |
| Design | Twin Plate |
| Stage | Multiplate - street use only |
| Tech Bulletins | TSB-167TSB-166 |
| Clamp Load | |
| Recommended for | High horsepower street driven vehicles |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Audi | A3 | 8P | 1.8 TFSI | 2006.11-2013.06 | BYT, BZB, CDAA 1798 Petrol 118 kW 160 BHP (2006.11 - 2013.06) | Suits MQ350 gearbox. | Only for CDAA engine. | 1000 | High Power Street Upgrade | Solid Mass Flywheel |
| Audi | A3 | 8P | 1.8 TFSI Quattro | 2008.07-2013.03 | CDAA 1798 Petrol 118 kW 160 BHP (2008.07 - 2013.03) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | Q3 | 8U | 2.0 TFSI | 2015.05-2018.10 | CULB 1984 Petrol 132 kW 180 BHP (2015.05 - 2018.10) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8V | 2.0 TFSI | 2016.05-2020.10 | CZPB, DKZA 1984 Petrol 140 kW 190 BHP (2016.05 - 2020.10) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8P | 2.0 TFSI | 2004.09-2013.05 | AXX, BPY, BWA, CAWB, CBFA, CCTA, CCZA 1984 Petrol 147 kW 200 BHP (2004.09 - 2013.05) | Only for CAWB, CCZA engines. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Audi | A3 | 8P | 2.0 TFSI Quattro | 2004.09-2013.05 | AXX, BPY, BWA, CBFA, CCTA, CCZA 1984 Petrol 147 kW 200 BHP (2004.09 - 2013.05) | Only for CCZA engine. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Audi | TT | 8J | 2.0 TFSI Quattro | 2008.06-2010.06 | CCZA, CCTA 1984 Petrol 147 kW 200 BHP (2008.06 - 2010.06) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | TT | 8S/FV | 2.0 TFSI | 2014.07- | CHHC 1984 Petrol 169 kW 230 BHP (2014.07 - ) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8V | S3 Quattro | 2013.05-2016.08 | CJXB 1984 Petrol 206 kW 280 BHP (2013.05 - 2016.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8V | S3 Quattro | 2014.03-2016.07 | CJXF 1984 Petrol 210 kW 286 BHP (2014.03 - 2016.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8V | S3 Quattro | 2016.07-2020.10 | CJXD, DJHB 1984 Petrol 213 kW 290 BHP (2016.07 - 2020.10) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8V | S3 Quattro | 2012.11-2020.10 | CJXC, DNUE 1984 Petrol 221 kW 300 BHP (2012.11 - 2020.10) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Audi | A3 | 8V | S3 Quattro | 2016.06-2020.10 | CJXG, DJHA 1984 Petrol 228 kW 310 BHP (2016.06 - 2020.10) | Only for CJXG engine. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Audi | TT | 8S/FV | 2.0 TTS Quattro | 2014.11- | CJXG 1984 Petrol 228 kW 310 BHP (2014.11 - ) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Altea | 1.8 TFSI | 2007.01-2015.07 | BYT, BZB, CDAA 1798 Petrol 118 kW 160 BHP (2007.01 - 2015.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Altea XL | 1.8 TFSI | 2007.01-2015.07 | BYT, BZB, CDAA 1798 Petrol 118 kW 160 BHP (2007.01 - 2015.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Altea XL | 2.0 TFSI | 2009.05-2015.07 | CCZB 1984 Petrol 155 kW 211 BHP (2009.05 - 2015.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Altea XL | 2.0 TFSI 4x4 | 2009.05-2015.07 | CCZB 1984 Petrol 155 kW 211 BHP (2009.05 - 2015.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. II | 2.0 TFSI | 2009.06-2012.12 | CCZB 1984 Petrol 155 kW 211 BHP (2009.06 - 2012.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. III | 2.0 Cupra | 2013.10-2020.08 | CJXE 1984 Petrol 195 kW 265 BHP (2013.10 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. III | 2.0 Cupra | 2013.10-2020.08 | CJXA 1984 Petrol 206 kW 280 BHP (2013.10 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. III | 2.0 Cupra | 2015.10-2020.08 | CJXH, DNUC 1984 Petrol 213 kW 290 BHP (2015.10 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. III | 2.0 Cupra | 2016.11-2018.08 | CJXC 1984 Petrol 221 kW 300 BHP (2016.11 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. III | 2.0 Cupra 4Drive | 2016.11-2020.08 | CJXC, DNUE 1984 Petrol 221 kW 300 BHP (2016.11 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Seat | Leon | Gen. III | 2.0 Cupra R | 2017.11-2018.08 | CJXG 1984 Petrol 228 kW 310 BHP (2017.11 - 2018.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Yeti | 1.8 TSI 4x4 | 2009.11-2017.12 | CDAB 1798 Petrol 112 kW 152 BHP (2009.11 - 2017.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Superb | Gen. II | 1.8 TSI 4x4 | 2008.11-2015.05 | CDAA 1798 Petrol 118 kW 160 BHP (2008.11 - 2015.05) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Yeti | 1.8 TSI 4x4 | 2009.05-2017.12 | CDAA 1798 Petrol 118 kW 160 BHP (2009.05 - 2017.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Kodiaq | 2.0 TSI 4x4 | 2016.10- | CZPA 1984 Petrol 132 kW 180 BHP (2016.10 - ) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Superb | Gen. III | 1.8 TSI | 2015.03-2024.06 | CJSA, CJSC 1798 Petrol 132 kW 180 BHP (2015.03 - 2024.06) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Octavia | Gen. II | 2.0 TFSI | 2005.10-2013.02 | BWA, CCZA 1984 Petrol 147 kW 200 BHP (2005.10 - 2013.02) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Octavia | Gen. III | 2.0 TSI RS | 2015.05-2020.10 | CHHA 1984 Petrol 169 kW 230 BHP (2015.05 - 2020.10) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Octavia | Gen. III | 2.0 TSI RS | 2013.05-2017.02 | CHHB 1984 Petrol 162 kW 220 BHP (2013.05 - 2017.02) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Skoda | Octavia | Gen. III | 2.0 TSI RS | 2017.02-2020.10 | DLBA, DHGA, DKTB 1984 Petrol 180 kW 245 BHP (2017.02 - 2020.10) | Only for DLBA engine. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Volkswagen | Passat Alltrack | B7 | 1.8 TSI | 2012.01-2014.12 | CDAB 1798 Petrol 112 kW 152 BHP (2012.01 - 2014.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Passat | B7 | 1.8 TSI | 2011.02-2014.12 | CDAB 1798 Petrol 112 kW 152 BHP (2011.02 - 2014.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Passat | B8 | 1.8 TSI | 2015.02-2019.07 | CJSA, CJSC 1798 Petrol 132 kW 180 BHP (2015.02 - 2019.07) | Only for CJSC engine. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Volkswagen | Scirocco | Gen. III | 2.0 TSI | 2013.11-2017.11 | CULA 1984 Petrol 132 kW 180 BHP (2013.11 - 2017.11) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Tiguan | 2.0 TSI 4motion | 2016.01-2024.04 | CZPA 1984 Petrol 132 kW 180 BHP (2016.01 - 2024.04) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Beetle | 2.0 TFSI | 2011.04-2016.07 | CBFA, CCTA, CCZA 1798 Petrol 147 kW 200 BHP (2011.04 - 2016.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | CC | B6 | 2.0 TFSI | 2008.06-2012.01 | CAWB, CBFA, CCTA, CCZA 1798 Petrol 147 kW 200 BHP (2008.06 - 2012.01) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | CC | B7 | 2.0 TFSI | 2011.11-2016.12 | CBFA, CCTA 1798 Petrol 147 kW 200 BHP (2011.11 - 2016.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Eos | 2.0 TSI | 2006.03-2015.08 | BPY, BWA, CAWB, CBFA, CCTA, CCZA 1798 Petrol 147 kW 200 BHP (2006.03 - 2015.08) | Only for CAWB, CCZA engines. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Volkswagen | Golf | Gen. VI | 2.0 GTI | 2009.06-2013.11 | CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2009.06 - 2013.11) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Jetta | Gen. III | 2.0 TFSI | 2005.10-2010.10 | AXX, BPY, BWA, CAWB, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2005.10 - 2010.10) | Only for CAWB engine. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Volkswagen | Polo | Gen. VI | 2.0 GTI | 2017.11-2021.11 | CZPC, DKZC 1984 Petrol 147 kW 200 BHP (2017.11 - 2021.11) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Scirocco | Gen. III | 2.0 TFSI | 2008.05-2009.11 | CAWB 1984 Petrol 147 kW 200 BHP (2008.05 - 2009.11) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Tiguan | 2.0 TFSI 4motion | 2007.09-2018.07 | CAWB, CCTA, CCZA 1984 Petrol 147 kW 200 BHP (2007.09 - 2018.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | CC | B7 | 2.0 TSI | 2011.11-2016.12 | CCZB 1984 Petrol 155 kW 210 BHP (2011.11 - 2016.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Eos | 2.0 TSI | 2009.11-2015.08 | CCZB 1984 Petrol 155 kW 210 BHP (2009.11 - 2015.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VI | 2.0 GTI | 2009.04-2012.11 | CCZB 1984 Petrol 155 kW 210 BHP (2009.04 - 2012.11) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Passat | B7 | 2.0 TSI | 2010.11-2014.12 | CCZB 1984 Petrol 155 kW 210 BHP (2010.11 - 2014.12) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | CC | B6 | 2.0 TSI | 2010.11-2012.01 | CCZB 1984 Petrol 155 kW 211 BHP (2010.11 - 2012.01) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Tiguan | 2.0 TSI 4motion | 2011.05-2018.07 | CCZB 1984 Petrol 155 kW 211 BHP (2011.05 - 2018.07) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Beetle | 2.0 TSI | 2014.12-2018.09 | CULC 1984 Petrol 162 kW 220 BHP (2014.12 - 2018.09) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 GTI | 2013.04-2020.08 | CHHB, CXDA, CXCB, CNTC 1984 Petrol 162 kW 220 BHP (2013.04 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Scirocco | Gen. III | 2.0 TSI | 2013.11-2017.11 | CULC 1984 Petrol 162 kW 220 BHP (2013.11 - 2017.11) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 GTI | 2013.04-2020.08 | CHHA, CXDB 1984 Petrol 169 kW 230 BHP (2013.04 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 GTI | 2017.03-2020.08 | DLBA, DKTB 1984 Petrol 180 kW 245 BHP (2017.03 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VIII | 2.0 GTI | 2020.08- | DLBA, DNPA, DRNA 1984 Petrol 180 kW 245 BHP (2020.08 - ) | Only for DNPA, DRNA engines. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Volkswagen | Golf | Gen. VII | 2.0 GTI Clubsport | 2016.02-2017.03 | CJXE 1984 Petrol 195 kW 265 BHP (2016.02 - 2017.03) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 R 4motion | 2013.11-2017.03 | CJXB 1984 Petrol 206 kW 280 BHP (2013.11 - 2017.03) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 R 4motion | 2016.12-2020.08 | CJXD, DJHB, DNUC 1984 Petrol 213 kW 290 BHP (2016.12 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 R 4motion | 2014.11-2019.08 | CYFB, DJJA, DLRA 1984 Petrol 215 kW 292 BHP (2014.11 - 2019.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 R 4motion | 2013.11-2020.08 | CJXC, DNUE 1984 Petrol 221 kW 300 BHP (2013.11 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 R 4motion | 2015.03-2020.08 | CJXC, DNUE 1984 Petrol 221 kW 300 BHP (2015.03 - 2020.08) | Only for CJXC. | 1000 | High Power Street Upgrade | Solid Mass Flywheel | |
| Volkswagen | Golf | Gen. VII | 2.0 GTI Clubsport S | 2016.09-2017.03 | CJXG 1984 Petrol 228 kW 310 BHP (2016.09 - 2017.03) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
| Volkswagen | Golf | Gen. VII | 2.0 R 4motion | 2016.12-2020.08 | CJXG, DJHA 1984 Petrol 228 kW 310 BHP (2016.12 - 2020.08) | 1000 | High Power Street Upgrade | Solid Mass Flywheel | ||
